ISD ChipCorder®

Nuvoton's ChipCorder® is a complete, single chip solution for voice and audio recording and playback. It is designed to offer the highest quality single-chip voice record/playback solutions for embedded applications. Non-volatile and highly integrated, they are ideal solutions for adding voice prompts, alerts, interactive menus, and voice memos to consumer, industrial and security products. Available pre-recording services make it easy to add voice to system design.


	All packages available in Pb-free

Key Features

Benefits

Non-volatile message storage

6 Seconds to 64 Minutes Record and Playback Durations

4.0 to 32KHz Sampling Frequency provides
Industry-Leading Sound Quality

Built-in Message Management for

Single/Multiple messages
Voice prompting

Fully Integrated System Functions

AGC, Microphone preamplifier

Speaker drivers

Low Voltage Operation

Customizable and localizable for different markets and languages

Highest quality in voice record and playback for embedded and standalone applications

Voice band design for efficient speech capture

Unique approach avoids cost and complexity of DSP based solutions

Voice record and playback system on a single chip

To off load CPU time in a system by 30% to 40%

Analog circuit elements for complete system design

No need to change Microcontroller software

Applications

Novelties

Giveaways
Talking Key Chains
Photo frames
Recording Pens
Greeting cards
Audio Logo

Toys

Automotive

Remote keyless entry
Door chimes
Radar detectors

Industrial

Warning signals
Vending machines
Bus/metro announcement system
Audio feedback in touch panels

Home Appliances

Refrigerators
Microwaves

Security

Residential home security panel
Smoke detectors
Fire alarms

DIGITAL CHIPCORDER
Product Series	Part No.	Duration	Sample Rate (kHz)	Package Option	Temperature Options	Status*	RoHS	Development Tools	Datasheet
ISD15100	ISD15102 ISD15104 ISD15108 ISD15116	2-16 min**	Up to 48kHz	LQFP 48	Industrial	P	Y	ISD15100_EVK	Available
ISD15C00	ISD15C00	0***	Up to 48khz	LQFP 48	AEC-Q100	P	Y	ISD15C00_EVK	Available
ISD15D00	ISD15D00	0***	Up to 48khz	QFN 32	AEC-Q100	P	Y	ISD15D00_EVK	Available
ISD3900	ISD3900	0***	Up to 48khz	LQFP 48	Industrial	P	Y	ISD3900_EVK	Available
ISD3800	ISD3800	0***	Up to 48khz	LQFP 48	Industrial	P	Y	ISD3800_EVK	Available
ISD61S00	ISD61S00	0***	Up to 16khz	LQFP 48	Industrial	P	Y	ISD61S00_EVK	Available
ISD2100	ISD2130 ISD2110	30 sec 10 sec	Up to 32khz	QFN 20	Industrial	P	Y	ISD2100_EVK	Available
ISD2360	ISD2360	60** sec	Up to 32khz	QFN32 SOP16	Industrial	P	Y	ISD2300_EVK ISD-ES2360_MINI_PROG_Q ISD-ES2360_MINI_PROG_S	Available
ISD9160	ISD9160FI	60S	Up to 32khz	LQFP48	Industrial	P	Y	ISD9160_EVK ISD9160_DMK	Available

MLS CHIPCORDER
Product Series	Part No.	Duration	Sample Rate (kHz)	Package Option	Temperature Options	Status*	RoHS	Development Tools	Datasheet
ISD14B00	ISD14B20 ISD14B40 ISD14B80	10-128 sec	4~12	DIE	0 - 50Cº	P	Y	ISD-DEMO1900 ISD1900_EVK	Available
ISD1900	ISD1916 ISD1932 ISD1964	10-128 sec	4~12	SOIC 28	Industrial	P	Y	ISD-DEMO1900 ISD1900_EVK	Available
ISD1600B	ISD1610B 　 ISD1616B ISD1620B	6-40 sec	4~12	SOIC 16 DIE	Commercial Industrial	P	Y	I16-COB20 ISD1600_EVK	Available
ISD1700	ISD1730 　　 ISD1760 　 ISD17120 　　　 ISD17240	20-480 sec	4~12	DIP 28 SOIC 28 TSOP 28 DIE	Commercial Industrial	P	Y	ISD-COB1730 ISD-COB1760 ISD-COB17120 ISD-COB17240 ISD1700_EVK	Available
ISD1800	ISD1806 ISD1810	6-12 sec	4~8	DIE	0 - 50oC	P	Y	ISD-ES1810	Available
ISD18A04	ISD18A04	4-8 sec	4~8	DIE	0 - 50oC	P	Y	N/A	Request
ISD18B00	ISD18B12 ISD18B24	6-24 sec	4~8	DIE	0 - 50Cº	P	Y	ISD-COB18B24	Available
ISD18C00	ISD18C10	12 sec ****	4~8	DIE	0 - 50Cº	P	Y	ISD-COB18C00	Request
ISD4000	ISD4002 ISD4003 ISD4004	2-16 min	4.0 5.3 6.4 8.0	DIP 28 SOIC 28 TSOP 28 DIE	Commercial Industrial	P	Y	N/A	Available
									Available
									Available
ISD5100	ISD5102 ISD5104 ISD5108 ISD5116	1-16 min	4.0 5.3 6.4 8.0	SOIC 28 TSOP 28 DIE	Industrial	P	Y	ISD-ES512	Available

* Status: P= Mass Production, S=Samples, UD=Under Development, UD (Time)= Under Development(Ready Time), EOL=End of life.
** Upon 8kHz, 4-Bit ADPCM
*** Use external SPI Flash

PowerSpeech® Family

PowerSpeech® Family series is ideal for all sound-based applications such as talking toys, singing dolls, greeting cards, or premiums.

W581Jxxx, Simple Function, 1-ch Voice Synthesizer

W584Axxx 4-bit μC Base, 1-ch Voice + Dual Tone Melody Synthesizer

W584Bxxx 4-bit μC Base, 1-ch Voice Synthesizer

N584Lxxx, 4-bit uC Base, One Battery, 1-CH Voice + Dual Tone Melody Synthesizer

W588Lxxx 8-bit uC Base, Two Battery, 2-ch Voice / Melody Synthesizer

W588Cxxx 8-bit μC Base, 2-ch Voice + Melody Synthesizer

W588Dxxx 8-bit μC Base, 3-ch Voice + Melody Synthesizer

N588Hxxx, 8-bit uC Base, 3-ch Voice + Melody Synthesizer

W581Jxxx, Simple Function, 1-ch Voice Synthesizer

Part No.	ROM (Kbit)	Duration (Sec.)		VDD (V)	CH	Fsys (MHz)	OSC	PWM (9-bit)	GPIO	Voice Section	Sentence	Datasheet
Part No.	ROM (Kbit)	(6kHz)	(8kHz)	VDD (V)	CH	Fsys (MHz)	OSC	PWM (9-bit)	GPIO	Voice Section	Sentence	Datasheet
W581J020	504	21	16	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	64	16	Request
W581J030	760	32	24	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	64	16	Request
W581J040	1016	42	32	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	64	16	Request
W581J050	1272	53	40	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	64	16	Request
W581J060	1528	64	48	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	64	16	Request
W581J080	2040	85	64	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	128	32	Request
W581J100	2552	106	80	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	128	32	Request
W581J120	3064	128	96	2.2~5.5	1	1.5/3.0	Ring	v	2I, 2I/O	128	32	Request

* Status: Mass Production.

Go top

W584Axxx 4-bit μC Base, 1-ch Voice + Dual Tone Melody Synthesizer

Part No.	ROM (Kbit)	Duration (Sec.) @ 5-bit MDM		VDD (V)	CH	Fsys (MHz)	OSC	Audio		RAM (N)	GPIO	Datasheet
Part No.	ROM (Kbit)	(6kHz)	(8kHz)	VDD (V)	CH	Fsys (MHz)	OSC	PWM	DAC	RAM (N)	GPIO	Datasheet
W584A011	300	10	8	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584A016	460	16	12	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584A021	620	21	16	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584A031	1020	35	26	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584A041	1260	43	32	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584A052	1580	54	40	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584A062	1900	65	49	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584A017	460	16	12	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A022	620	21	16	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A032	1020	35	26	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A042	1260	43	32	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A051	1580	54	40	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A061	1900	65	49	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A071	2220	76	57	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A081	2540	87	65	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584A025	620	21	16	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A035	1020	35	26	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A045	1260	43	32	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A065	1900	65	49	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A075	2220	76	57	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A085	2540	87	65	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A100	3180	109	81	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A120	3820	130	98	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A151	4460	152	114	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A171	5100	174	131	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A191	5740	196	147	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584A300	9120	311	233	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	20 I/O	Request
W584A340	10220	349	262	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	20 I/O	Request
W584AP05 (OTP)	460	16	12	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584AP20 (OTP)	1900	65	49	2.2~5.5	1 + DTM	4~8	Ring	9-bit	10-bit	128	16 I/O	Request

* Status: Mass Production.

Go top

W584Bxxx 4-bit μC Base, 1-ch Voice Synthesizer

Part No.	ROM (Kbit)	Duration (Sec.) @ 5-bit MDM		VDD (V)	CH	Fsys (MHz)	OSC	Audio		RAM (N)	GPIO	Datasheet
Part No.	ROM (Kbit)	(6kHz)	(8kHz)	VDD (V)	CH	Fsys (MHz)	OSC	PWM	DAC	RAM (N)	GPIO	Datasheet
W584B010	300	10	8	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584B015	460	16	12	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584B020	620	21	16	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584B030	1020	35	26	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584B040	1260	43	32	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584B052	1580	54	40	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584B062	1900	65	49	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	8 I/O	Request
W584B016	460	16	12	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584B021	620	21	16	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584B031	1020	35	26	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584B041	1260	43	32	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584B070	2220	76	57	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584B080	2540	87	65	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	12 I/O	Request
W584B100	3180	109	81	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584B120	3820	130	98	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584B150	4460	152	114	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584B170	5100	174	131	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	16 I/O	Request
W584B190	5740	196	147	2.2~5.5	1	4~8	Ring	9-bit	10-bit	128	16 I/O	Request

* Status: Mass Production.

Go top

N584Lxxx, 4-bit uC Base, One Battery, 1-CH Voice + Dual Tone Melody Synthesizer

Part No.	ROM (Kbit)	Duration (Sec.) @ 5-bit MDM		VDD (V)	Booster Output	CH	Fsys (MHz)	OSC	Audio		RAM (N)	GPIO	Datasheet
Part No.	ROM (Kbit)	(6kHz)	(8kHz)	VDD (V)	Booster Output	CH	Fsys (MHz)	OSC	PWM	DAC	RAM (N)	GPIO	Datasheet
N584L020	620	21	15	1.0~1.8	3.0V	1 + DTM	4~8	Ring	9-bit	No	128	8 I/O	Request
N584L030	1020	34	26	1.0~1.8	3.0V	1 + DTM	4~8	Ring	9-bit	No	128	8 I/O	Request
N584L040	1260	43	32	1.0~1.8	3.0V	1 + DTM	4~8	Ring	9-bit	No	128	8 I/O	Request
N584L080	2540	86	65	1.0~1.8	3.0V	1 + DTM	4~8	Ring	9-bit	No	128	12 I/O	Request
N584L120	3820	130	98	1.0~1.8	3.0V	1 + DTM	4~8	Ring	9-bit	No	128	12 I/O	Request
N584L081	2540	86	65	1.0~1.8	4.0V	1 + DTM	4~8	Ring	9-bit	No	128	12 I/O	Request
N584L121	3820	130	98	1.0~1.8	4.0V	1 + DTM	4~8	Ring	9-bit	No	128	12 I/O	Request

* Status: Mass Production.

Go top

W588Lxxx 8-bit uC Base, Two Battery, 2-ch Voice / Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 5-bit MDM		VDD (V)	CH	Fsys (MHz)	OSC	Sub-Clock 32kHz	Audio		RAM (Byte)	GPIO	Datasheet
Part No.	ROM (KByte)	(6kHz)	(8kHz)	VDD (V)	CH	Fsys (MHz)	OSC	Sub-Clock 32kHz	PWM	DAC	RAM (Byte)	GPIO	Datasheet
W588L020	94	23	18	1.8~3.6	1	4~8	Ring	-	12-bit	No	96	8 I/O	Request
W588L030	126	32	24	1.8~3.6	1	4~8	Ring	-	12-bit	No	96	8 I/O	Request
W588L035	170	44	33	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L040	192	50	37	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L050	224	58	43	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L060	254	66	49	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L070	330	86	65	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L080	382	100	75	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L100	448	118	88	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L121	510	133	101	1.8~3.6	2	4~8	Ring	-	12-bit	No	128	16 I/O	Request
W588L150	640	169	127	1.8~3.6	2	4~8	Ring/X'tal	X'tal	12-bit	No	256	16 I/O	Request
W588L170	766	203	152	1.8~3.6	2	4~8	Ring/X'tal	X'tal	12-bit	No	256	16 I/O	Request

* Status: Mass Production.

Go top

W588Cxxx 8-bit μC Base, 2-ch Voice + Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		VDD (V)	CH	Fsys (MHz)	OSC	Audio		RAM (Byte)	GPIO	Datasheet
Part No.	ROM (KByte)	(6kHz)	(8kHz)	VDD (V)	CH	Fsys (MHz)	OSC	PWM	DAC	RAM (Byte)	GPIO	Datasheet
W588C003	20	5	4	2.2~5.5	2	4~8	Ring	12-bit	No	96	8 I/O	Request
W588C006	30	8	6	2.2~5.5	2	4~8	Ring	12-bit	No	96	8 I/O	Request
W588C009	50	15	11	2.2~5.5	2	4~8	Ring	12-bit	No	96	8 I/O	Request
W588C012	62	19	14	2.2~5.5	2	4~8	Ring	12-bit	No	96	8 I/O	Request
W588C015	78	24	18	2.2~5.5	2	4~8	Ring	12-bit	No	96	8 I/O	Request
W588C020	98	31	23	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	12 I/O	Request
W588C025	114	36	27	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	12 I/O	Request
W588C030	126	40	30	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	12 I/O	Request
**W588C036	170	55	41	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C041	192	62	47	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C046	205	67	50	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C051	224	73	55	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C056	240	78	59	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C061	254	83	62	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C071	330	108	81	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C081	382	126	94	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C101	448	148	111	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
**W588C121	510	168	126	2.2~5.5	2	4~8	Ring	12-bit	13-bit	128	16 I/O	Request
W588C150	640	212	159	2.2~5.5	2	4~8	Ring	12-bit	13-bit	192	16 I/O	Request
W588C170	768	254	191	2.2~5.5	2	4~8	Ring	12-bit	13-bit	192	16 I/O	Request
W588C210	896	297	223	2.2~5.5	2	4~8	Ring	12-bit	13-bit	192	16 I/O	Request
W588C260	1022	339	254	2.2~5.5	2	4~8	Ring	12-bit	13-bit	192	16 I/O	Request
W588C300	1180	392	294	2.2~5.5	2	4~8	Ring	12-bit	13-bit	192	16 I/O	Request
W588C350	1348	448	336	2.2~5.5	2	4~8	Ring	12-bit	13-bit	192	16 I/O	Request
W588C400	1534	510	382	2.2~5.5	2	4~8	Ring	12-bit	13-bit	192	16 I/O	Request

* Status: Mass Production.
**DAC w/o Noise Shaping

Go top

W588Dxxx 8-bit μC Base, 3-ch Voice + Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		VDD (V)	CH	Fsys (MHz)	OSC	Sub-Clock 32kHz	Audio		RAM (Byte)	GPIO	SIM SPI	Datasheet
Part No.	ROM (KByte)	(6kHz)	(8kHz)	VDD (V)	CH	Fsys (MHz)	OSC	Sub-Clock 32kHz	PWM	DAC	RAM (Byte)	GPIO	SIM SPI	Datasheet
W588D003	20	5	4	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	192	16 I/O	v	Request
W588D006	30	8	6	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	192	16 I/O	v	Request
W588D009	50	15	11	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D012	62	19	14	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D015	78	24	18	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D020	98	31	23	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D025	114	36	27	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D030	126	40	30	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D035	170	55	41	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D040	192	62	47	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D045	205	67	50	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D050	224	73	55	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D055	240	78	59	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D060	254	83	62	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588DF20	2 Mbit (MTP)	83	62	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	16 I/O	v	Request
W588D070	330	108	81	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	24 I/O	v	Request
W588D080	382	126	94	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	24 I/O	v	Request
W588D100	448	148	111	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	24 I/O	v	Request
W588D120	510	168	126	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	256	24 I/O	v	Request
W588D150	640	212	159	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	24 I/O	v	Request
W588D170	768	254	191	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	24 I/O	v	Request
W588D210	896	297	223	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	24 I/O	v	Request
W588D260	1022	339	254	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	24 I/O	v	Request
W588D300	1180	392	294	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	8I, 24 I/O	v	Request
W588D350	1348	448	336	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	8I, 24 I/O	v	Request
W588D400	1534	510	382	2.2~5.5	3	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	8I, 24 I/O	v	Request

* Status: Mass Production.

Go top

N588Hxxx, 8-bit uC Base, 3-ch Voice + Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		VDD (V)	CH	Fsys (MHz)	OSC	Audio		RAM (Byte)	GPIO	H/W PWM IO	Datasheet
Part No.	ROM (KByte)	(6kHz)	(8kHz)	VDD (V)	CH	Fsys (MHz)	OSC	PWM	DAC	RAM (Byte)	GPIO	H/W PWM IO	Datasheet
N588H060	205	67	50	2.2~5.5	3	4~8	Ring	12-bit	No	128	16 I/O	6-pin	Request
N588H080	254	83	62	2.2~5.5	3	4~8	Ring	12-bit	No	128	16 I/O	6-pin	Request
N588H120	382	126	94	2.2~5.5	3	4~8	Ring	12-bit	No	128	16 I/O	6-pin	Request
N588H170	510	168	126	2.2~5.5	3	4~8	Ring	12-bit	No	128	16 I/O	6-pin	Request
N588H250	768	254	191	2.2~5.5	3	4~8	Ring	12-bit	No	192	24 I/O	6-pin	Request
N588H340	1022	339	254	2.2~5.5	3	4~8	Ring	12-bit	No	192	24 I/O	6-pin	Request
N588HP80 (OTP)	1022	339	254	2.2~5.5	3	4~8	Ring	12-bit	No	192	24 I/O	6-pin	Request

* Status: Under Development.
　

BandDirector® Family

BandDirector® Family Series can be used for applications like: music box, rock'n'roll musical toy, synthetic toy instrument, toy band/ensemble/orchestra, etc.

W567Bxxx 8-bit μC Base, 4-ch Voice + Wavetable Melody Synthesizer

W567Sxxx 8-bit μC Base, 8-ch Voice + Wavetable Melody Synthesizer

N567Gxxx 8-bit μC Base, 4-ch Voice + Wavetable Melody Synthesizer

N567Kxxx 8-bit μC Base, 6-ch Voice + Wavetable Melody Synthesizer

N567Hxxx 8-bit μC Base, 8-ch Voice + Wavetable Melody Synthesizer

W567Jxxx, 8-bit uC Base, 6-ch Voice + Wavetable Melody Synthesizer

W567Cxxx, 8-bit uC Base, 16-ch Voice + Wavetable Melody Synthesizer

W567Bxxx 8-bit μC Base, 4-ch Voice + Wavetable Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 5-bit MDM		CH	Audio		RAM (Byte)	GPIO	SIM	Datasheet
Part No.	ROM (KByte)	(6KHz)	(8KHz)	CH	PWM	DAC	RAM (Byte)	GPIO	SIM	Datasheet
W567B010	80	14	10	2	No	10-bit	256	4 I,16 I/O	-	Request
W567B015	94	18	13	2	No	10-bit	256	4 I,16 I/O	-	Request
W567B020	126	26	20	2	No	10-bit	256	4 I,16 I/O	-	Request
W567B030	158	35	26	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B040	224	52	39	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B060	254	60	45	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B080	416	104	78	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B100	464	116	87	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B120	510	129	96	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B150	640	163	122	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B170	768	197	148	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B210	896	232	174	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request
W567B260	1018	264	198	2	No	10-bit	256	8 I,24 I/O,8 O	Ö	Request

* Status: Mass Production.

Go top

W567Sxxx 8-bit μC Base, 8-ch Voice + Wavetable Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 5-bit MDM		CH	Audio		SPK	RAM (Byte)	GPIO	RTC (32KHz)	SIM	Datasheet
Part No.	ROM (KByte)	(6KHz)	(8KHz)	CH	PWM	DAC	SPK	RAM (Byte)	GPIO	RTC (32KHz)	SIM	Datasheet
W567S010	80	14	10	8	No	10-bit	1	256	16 I/O	-	-	Request
W567S015	94	18	13	8	No	10-bit	1	256	16 I/O	-	-	Request
W567S020	128	27	20	8	No	10-bit	1	256	16 I/O	-	-	Request
W567S025	144	31	23	8	No	10-bit	1	256	16 I/O	-	-	Request
W567S030	158	35	26	8	No	10-bit	1	256	16 I/O	-	-	Request
W567S040	224	52	39	8	No	10-bit	2	256	4 I,16 I/O	-	-	Request
W567S060	254	60	45	8	No	10-bit	2	256	4 I,16 I/O	-	-	Request
W567S080	416	104	78	8	No	10-bit	2	384	8 I,24 I/O	X'tal	Ö	Request
W567S100	464	116	87	8	No	10-bit	2	384	8 I,24 I/O	X'tal	Ö	Request
W567S120	510	129	96	8	No	10-bit	2	384	8 I,24 I/O	X'tal	Ö	Request
W567S150	640	163	122	8	No	10-bit	2	384	8 I,24 I/O	X'tal	Ö	Request
W567S170	768	197	148	8	No	10-bit	2	384	8 I,24 I/O	X'tal	Ö	Request
W567S210	896	232	174	8	No	10-bit	2	384	8 I,24 I/O	X'tal	Ö	Request
W567S260	1022	265	199	8	No	10-bit	2	384	8 I,24 I/O	X'tal	Ö	Request
W567S301	1152	300	225	8	No	10-bit	2	768	8 I,24 I/O	X'tal	Ö	Request
W567S341	1278	334	250	8	No	10-bit	2	768	8 I,24 I/O	X'tal	Ö	Request

* Status: Mass Production.

Go top

N567Gxxx 8-bit μC Base, 4-ch Voice + Wavetable Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		VDD(V)	CH	Fsys(MHz)	OSC	Audio		RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
Part No.	ROM (KByte)	(6KHz)	(8KHz)	VDD(V)	CH	Fsys(MHz)	OSC	PWM	DAC	RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
N567G030	126	34	26	2.2~5.5	4	4~8	TRIM/X'tal	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567G041	158	45	34	2.2~5.5	4	4~8	TRIM/X'tal	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567G080	286	87	66	2.2~5.5	4	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567G120	416	131	98	2.2~5.5	4	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567G160	528	168	126	2.2~5.5	4	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567G200	638	205	154	2.2~5.5	4	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567G240	768	248	186	2.2~5.5	4	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request
N567G280	896	291	218	2.2~5.5	4	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request
N567G330	1022	333	250	2.2~5.5	4	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request

* Status: Mass Production.

Go top

N567Kxxx 8-bit μC Base, 6-ch Voice + Wavetable Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		VDD (V)	CH	Fsys (MHz)	OSC	Audio		RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
Part No.	ROM (KByte)	(6KHz)	(8KHz)	VDD (V)	CH	Fsys (MHz)	OSC	PWM	DAC	RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
N567K030	126	34	26	2.2~5.5	6	4~8	TRIM/X'tal	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567K041	158	45	34	2.2~5.5	6	4~8	TRIM/X'tal	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567K080	286	87	66	2.2~5.5	6	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567K120	416	131	98	2.2~5.5	6	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567K160	528	168	126	2.2~5.5	6	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567K200	638	205	154	2.2~5.5	6	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567K240	768	248	186	2.2~5.5	6	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request
N567K280	896	291	218	2.2~5.5	6	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request
N567K330	1022	333	250	2.2~5.5	6	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request

* Status: Mass Production.

Go top

N567Hxxx 8-bit μC Base, 8-ch Voice + Wavetable Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		VDD (V)	CH	Fsys (MHz)	OSC	Audio		RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
Part No.	ROM (KByte)	(6KHz)	(8KHz)	VDD (V)	CH	Fsys (MHz)	OSC	PWM	DAC	RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
N567H030	126	34	26	2.2~5.5	8	4~8	TRIM/X'tal	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567H041	158	45	34	2.2~5.5	8	4~8	TRIM/X'tal	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567H080	286	87	66	2.2~5.5	8	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	Ö	Request
N567H120	416	131	98	2.2~5.5	8	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567H160	528	168	126	2.2~5.5	8	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567H200	638	205	154	2.2~5.5	8	4~8	TRIM	12-bit	13-bit	384	24 I/O	-	-	Request
N567H240	768	248	186	2.2~5.5	8	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request
N567H280	896	291	218	2.2~5.5	8	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request
N567H330	1022	333	250	2.2~5.5	8	4~8	TRIM/X'tal	12-bit	13-bit	384	8I, 24 I/O	6	Ö	Request

* Status: Mass Production.

Go top

W567Jxxx, 8-bit uC Base, 6-ch Voice + Wavetable Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		Channel		Fsys (MHz)	OSC	Sub-Clock 32KHz	Audio		RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
Part No.	ROM (KByte)	(6KHz)	(8KHz)	Voice	WTM	Fsys (MHz)	OSC	Sub-Clock 32KHz	PWM	DAC	RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	Datasheet
W567J070	336	101	76	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J080	416	128	96	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J100	464	144	108	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J120	508	159	119	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J151	640	203	152	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J171	768	245	184	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J210	896	288	216	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J260	1020	329	247	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J300	1232	400	300	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J340	1376	448	336	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request
W567J380	1532	500	375	2	6	4~8	Ring/X'tal	X'tal	12-bit	13-bit	384	16 I/O	3	Ö	Request

* Status: Mass Production.

Go top

W567Cxxx, 8-bit uC Base, 16-ch Voice + Wavetable Melody Synthesizer

Part No.	ROM (KByte)	Duration (Sec.) @ 4-bit NM4		Channel		Fsys (MHz)	OSC	Sub-Clock 32KHz	Audio		RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	PAN Stereo	Datasheet
Part No.	ROM (KByte)	(6KHz)	(8KHz)	Voice	WTM	Fsys (MHz)	OSC	Sub-Clock 32KHz	PWM	DAC	RAM (Byte)	GPIO	H/W PWM I/O	SIM SPI	PAN Stereo	Datasheet
W567C070	336	101	76	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C080	416	128	96	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C100	464	144	108	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C120	508	159	119	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C151	640	203	152	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C171	768	245	184	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C210	896	288	216	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C260	1020	329	247	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C300	1232	400	300	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C340	1376	448	336	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C380	1532	500	375	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	-	Request
W567C126	508	159	119	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	Ö	Request
W567C266	1020	329	247	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	Ö	Request
W567C306	1232	400	300	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	Ö	Request
W567C346	1376	448	336	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	Ö	Request
W567C386	1532	500	375	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	Ö	Request
W567CP80 (OTP)	1020	329	247	2	16	4~8	Ring/X'tal	X'tal	12-bit	13-bit	512	24 I/O	3	Ö	Ö	Request

* Status: Mass Production.

Go top

NuVoice™

NuVoice™ is a voice processing SoC with high integration analog and digital peripherals and high performance algorithms for varieties of interactive and funny toys.

NuVoice™ Cortex-M0 based voice processor

Part No.	CPU	APROM	SRAM	Clock	HW PWM I/O	USB	DAC	PA	ADC	I/O	Datasheet
Part No.	CPU	APROM	SRAM	Clock	HW PWM I/O	USB	(13-bit)	PA	(12-bit)	I/O	Datasheet
N572F064	Cortex-M0 48MHz	embFlash, 64KB	8KB	Rosc 24MHz, Xtal 32KHz, 6M/12M Hz	4-ch	- -	1-ch	250mW	8-ch, SAR	32	Available
N572F065	Cortex-M0 48MHz	embFlash, 64KB	8KB	Rosc 24MHz, Xtal 32KHz, 6M/12M Hz	4-ch	2.0 F.S.	1-ch	250mW	8-ch, SAR	32	Available
N572F072	Cortex-M0 48MHz	embFlash, 72KB	8KB	Rosc 48MHz, Xtal 32KHz	4-ch	- -	1-ch	400mW	8-ch, SAR	32	Available
N572P072	Cortex-M0 48MHz	OTP, 72KB	8KB	Rosc 48MHz, Xtal 32KHz	4-ch	- -	1-ch	400mW	8-ch, SAR	32	Available

*Status: Mass Production.

Winbond公司的ISD系列语音芯片因为采用了独特的模拟数据直接存储技术，使其声音存贮效果较以前产品有大幅提高，实际试听主观评价可以达到磁带录音机的水平，是目前市场上录放效果最好的语音电路之一。声音录放采用了Chip-Corded 专利技术,即声音无须A/D转换和压缩就可直接存储,不存在A/D转换误差,在一个记录位(BIT)可存储多达250级声音信号,相当于通常A/D技术记录容量的8倍。片内集成了晶体振荡器、麦克风前置放大器、自动增益控制、抗混叠滤波器、平滑滤波器、声音功率放大器等,只需很少的外围器件,就可构成一个完整的声音录放系统。

产品系列型号及相关资料下载

产品系列	产品型号	录音时间	分段	采样率(KHz)	资料下载
ISD1100	ISD1110 ISD1112	10 sec. 12 sec.	64 64	6.4 5.3
ISD1200	ISD1210 ISD1212	10 sec. 12 sec.	64 64	6.4 5.3	下载1、
ISD1400	ISD1416 ISD1420	16 sec. 20 sec.	128 128	8.0 6.4	下载1、
ISD1600	ISD1610 ISD1612 ISD1616 ISD1620	6.6-20 sec. 8-24 sec. 10.6-32 sec. 13.3-40 sec.	- - - -	4-12 4-12 4-12 4-12	下载
ISD1800	ISD1806 ISD1810	6-12 sec. 8-16 sec.	48 64	4~8 4~8	下载
ISD2500	ISD2532 ISD2540 ISD2548 ISD2564 ISD2560 ISD2575 ISD2590 ISD25120	32 sec. 40 sec. 48 sec. 64 sec. 60 sec. 75 sec. 90 sec. 120 sec.	256 256 256 256 480 480 480 480	8.0 6.4 5.3 4.0 8.0 6.4 5.3 4.0	下载1、2、3、4
ISD4002	ISD4002-120 ISD4002-150 ISD4002-180 ISD4002-240	2.0 min 2.5 min 3.0 min 4.0 min	960 960 960 960	8.0 6.4 5.3 4.0	下载
ISD4003	ISD4003-04M ISD4003-05M ISD4003-06M ISD4003-08M	4.0 min 5.0 min 6.0 min 8.0 min	1920 1920 1920 1920	8.0 6.4 5.3 4.0	下载
ISD4004	ISD4004-08M ISD4004-10M ISD4004-12M ISD4004-16M	8.0 min 10.0 min 12.0 min 16.0 min	3840 3840 3840 3840	8.0 6.4 5.3 4.0	下载
ISD5008	ISD5008	8.0 min	1920	4.0 - 8.0	下载
ISD5100	ISD5102 ISD5104 ISD5108 ISD5116	1-2min 2-4 min 4-8 min 8-16 min	512 1048 2096 4194	4.0 - 8.0	下载
ISD5216	ISD5216	8-16 min	3866	4.0 - 8.0	下载

型号	时间长度	采样频率	可分段数	封装
PM50	20-100秒	4.8-21	1-128	28-COB
ISD1110P	10秒	6.4	80	COB
ISD1820P	8-20秒	3.2-8	1	14-DIP
ISD1420P	20秒	6.4	160	28-DIP
ISD2540P	40秒	6.4	600	28-DIP
ISD2560P	60秒	8.0	600	28-DIP
ISD2590P	90秒	5.3	600	28-DIP
ISD25120P	120秒	4.0	600	28-DIP
ISD4002-120P	120秒	8.0	600	28-DIP
ISD4003-04MP	240秒	8.0	1200	28-DIP
ISD4004-08MP	480秒	8.0	2400	28-DIP
ISD4004-12MP	720秒	5.3	2400	28-DIP
ISD4004-16MP	960秒	4.0	2400	28-DIP
aP8910a	5V-10秒	6.0-22.0	12	16-DIP
aP89010	3V-10秒	6.0-22.0	12	16-DIP
aP8921A	5V-21秒	6.0-22.0	12	16-DIP
aP89021	3V-21秒	6.0-22.0	12	16-DIP
aP8942a	5V-42秒	6.0-22.0	32	20-DIP
aP89042	3V-42秒	6.0-22.0	32	20-DIP
aP89085	85秒	6.0-22.0	256	24-DIP
aP89170	170秒	6.0-22.0	256	24-DIP
aP89341	340秒	6.0-22.0	256	24-DIP
APR9600	32-60秒	4.0-8.0	128	28-DIP
APR6008	240-480秒	4.0-8.0	640	28-DIP
APR6016	480-960秒	4.0-8.0	1280	28-DIP
ISD10.20秒模块	10秒、20秒	6.4-8.0	1-4	模块
国歌芯片	48秒	8.0	1	18-DIP

ISD/MP3语音录放产品

语音录放电路、模块、成品板、开发板、MP3模块、语音编程拷贝机

　　产品简介：过去，数码语音的开发设计录制复杂、开发成本高，而且音质欠佳，难以实用。现在，美国ISD公司的专利新产品――ISD语音电路使这一切发生了根本的改变：音质自然、随录随放、断电不丢失、低功耗、控制灵活、价格低廉……因此迅速在智能仪表、治安报警、语音报站、报数报价、语音讲解、语音记录、语音教学、智能玩具、电子礼品等场合获得了广泛的应用。

　　主要特点： ★使用方便的10秒至16分钟语音录放 ★多段信息处理，可分1至800段 ★高质量、自然的语音还原技术 ★边沿/电平触发放音兼容 ★手动控制/微处理器控制兼容 ★无需开发系统，随录随放 ★自动节电，维持电流0.5-1uA ★不耗电信息保存100年（典型值） ★100,000次录音周期（典型值） ★易于开发语音产品，可通过录音棚录入高保真语音。

（1）语音录放／识别芯片﹑语音录放模块


PM50100	ISD1820P	ISD1110COB	ISD1420P	ISD4004-16P	A8108A	ISD1810M

PM50/60系列```新型语音录放电路

20秒/50秒/100秒，采样8KHz，特点：1）批量OTP时成本大大降低；2）使用简单方便，最小系统仅需外接1个电阻1个电容；3）音质略优于ISD电路。由专用编程机录入，3-6V电，分1-8或128 段

ISD17000芯片

20-60秒，采样机-12KHz，可分段· 工作电压 2.4V-5.5V· 静态电流 0.5 - 1 μA· 工作电流 20mA

ISD1820芯片

8-20秒（由电阻设置）单段，可循环，3-5V，电路简单，使用简便，还可作变调电路，DIP14

ISD1110芯片

10秒可循环，采样频率6.4KHz，5V供电，双列可分80段，软包装，单列体积小、直插，COB28

ISD2540或60/90/120

40或60/90/120秒可分600段，8.0/5.3/4.0KHz，5V供电，可手动录放，直接话筒喇叭，DIP28

ISD4002-120/240芯片

120/240秒，可分800段样频率8.0/5.3/4.0KHz，3V供电，单片机SPI接口，DIP28

ISD4003-4/8芯片

4/8分钟，可分1600段，采样频率8.0/5.3/4.0KHz，3V供电，单片机SPI接口，DIP28

ISD4004-8/12/16芯片

8/12/16分钟可分2400段，采样频率8.0/5.3/4.0KHz，3V供电，单片机SPI接，DIP28口

APR9600芯片

30－60秒由电阻设置，可分2、4、8段，5V供电，可手动录放，直接话筒喇叭，DIP28

API8108A芯片

同22C012，5-10秒OTP一次写入，可分1－8段，可循环放音，3-5V供电，烧录器录入，DIP16

ISD1810M录放模块

10-20秒单段，可循环，需外接电源、话筒、按钮、喇叭，贴片工艺，超薄超小体积，5V供电，17×15mm

ISD1110M录放模块

10秒单段，可循环，需外接电源、话筒、按钮、喇叭，贴片工艺，超薄超小体积，5V供电，35×20mm

AP7003-01语音识别IC

CPU串行控制。可识别12组字句，每个1.5秒，单个或连续识别。2.4-4.5V供电，具低功耗模式，DIP40

AP7003-02语音识别IC

按键直接控制。可识别12组字句，每个1.5秒，单个或连续识别。2.4-4.5V供电，具低功耗模式，DIP40

（2）语音录放实验板,多功能板﹑单片机开发板


ISD1700B	ISD1820B	ISD9600B	ISD4000LD	ISD4000DX	89C51-4000

ISD1700B段选板

★手动按键控制方式+串行和+行控制。★录、放音清晰响亮，录放音时间20—240秒（由芯片决定）。★10段语音直接单键控制（可扩至15段），串行可分数百段。★电源电压6～12V，静态电流15mA，工作电流150mA。★具有高保真和较大功率输出两组喇叭接口，外接喇叭8～16欧姆

ISD1820B录放实验板

10-20秒（由电阻设置），可循环，小体积，可作全功能试验，还可作变调电路，58×38mm

ISD2500B录放实验板

40/60/90/120秒成品板，可分段、可手动循环或上电自动循环，74×56mm，分两种板：（同上）

APR9600B录放实验板

60秒成品板，带拨码开关，可分段、各段分别控制，可做全功能实验。无功放，5V供电，74×56mm

ISD4000JL组合精灵板

ISD4002/4003，CPU串口控制，可分99段，报数/报价/报温等，音质良好，5-12V供电，0.5W功放

ISD4000LD单段放音板

单段放音（不带录音），可循环或上电即响，外接电源、喇叭即可。交流或直流5-12V供电

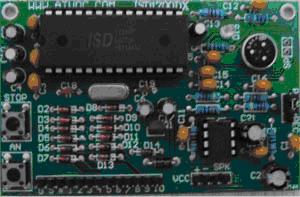

ISD2500DX段选板

ISD2540或60/90/120，内部CPU控制，40-120秒，1-15段，每段单键控制且时间不限，可循环，74×52mm

ISD4000DX段选板

ISD4000系列，内部CPU控制，2-16分钟，1-15段，每段单键或连续控制且时间不限，可循环，95×50mm

89C51-ISD4000单片机语音开发板

开发ISD4000系列芯片，AT89C51控制，含功放、电源稳压、话筒等完整电路，有万用试验区，带演示功能源程序代码，可做各种语音产品开发。电压5V，音量可调，在板录放音

（3）语音编程拷贝机、傻瓜式功放模块


ISD1425K	ISD3340K	ISD1700S	PM5000K	M-2005	MP3-300

ISD1425K语音编程拷贝机

全配置，能对1400/2500全系列芯片进行编程、拷贝。可自动分段写入、指定地址写入（加地址预置模块）等方式，数码管显示段数和地址。低噪声高音质。免费高级语音编辑软件

ISD3340K语音编程拷贝机

全配置，能对33000/4000全系列芯片进行编辑和拷贝，免费语音编辑软件，新增“电脑播音员”软件包，用户只需输入文字即可获得标准汉语发音，配全功能语音编辑软件

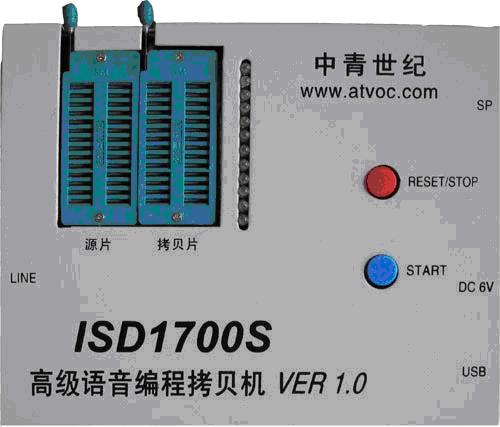

ISD1700S-USB语音编程拷贝机

USB 接口的 ISD 系列编程拷贝机，无须任何驱动程序。秉承了上述编程器操作简易，使用方便的优点；在此基础上，采用 USB 接口输入声音，进一步减小了噪音，提高芯片的音质

PM5000K数码语音开发系统

音源录制、编辑、烧写、播放、演示等一体化完成。USB接口，无须外接电源。自动识别和烧写20/30/40/50/100/150/200 秒电路。可小批量生产，可做*.PM5、*.OBJ 交厂家MASK掩膜批量

专业录音、编程、拷贝等技术报务

专业录音棚录制，将*.WAV语音文件转入电脑中编辑制作，分段录入编程到语音芯片中，并提供每段语音地址。对ISD系列或OTP系列芯片进行拷贝，保证地址与母片一致

TDA2030 小体积单声道小功放板

14W功率(4Ω负载)，采用TDA2030集成IC功放输出，采用AC9-12V（三线双电源，直接接变压器输出的“+、0、-”三个端）或DC9-12V供电，尺寸50×45mm

M-2005 单电源双声道小功放板

2×6W功率(4Ω负载)，采用TDA2005集成IC做功放输出，高静噪。过热、过流、短路保护。单电源DC或AC9-12V供电（可用变压器直接供电），尺寸69×40mm

双2005高品质双声道汽车功放板

2×20W功率(4Ω负载)，采用两个TDA2005集成IC做功放，BTL输出，功率强劲，过热、过流、短路保护。20Hz-20KHz，音质美，信噪比极高，应用广泛。单电源9-12VDC供电，85×100mm

MP3-300 MP3播放模块

（按键或RS232接口型）通过串口或按键控制模块内的存储器中MP3的播放、停止、暂停、选曲、音量调节等。用户只用对自己命令解析，然后从串口输出指定命令就可以达到播放MP3的效果。提供RS232串口（TTL电平）控制，提供按键控制。支持USB2.0，任意3V或5V供电。板上自带FLASH：16M-1024M。支持USB2.0，任意3V或5V供电。50mm×40mm

MP3-300A MP3播放模块

（十段按键控制型）按键直接控制十段语音，其它同上。50mm×40mm

欢迎来电洽购我司产品或索取免费详细资料、设计指南和光盘

地址：深圳市福田区福华路福庆街鸿图大厦1602室 E-MAIL：szss20@163.com

深圳展销部：深圳华强北路赛格电子市场2583号 TEL/FAX：0755-83665529 13823648918

北京分公司：北京海淀区知春路132号中发电子大厦3097号TEL：4006579498 18927445855 13823791822 FAX：010-62543996

上海分公司：上海市北京东路668号上海賽格电子市场地下一层D25号 TEL：4006571586 56703037 13823676822 FAX：021-56703037

西安分公司：西安高新开发区20所(中国电子科技集团导航技术研究所) 　　　　　西安劳动南路88号电子商城二楼D23号

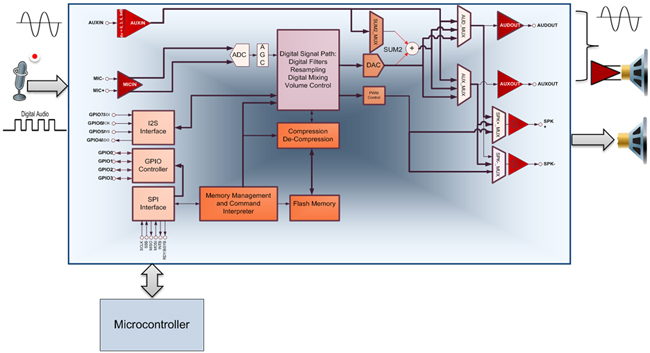

ISD ChipCorder®

Key Features

Benefits

Non-volatile message storage

6 Seconds to 64 Minutes Record and Playback Durations

4.0 to 32KHz Sampling Frequency provides Industry-Leading Sound Quality

Built-in Message Management for

Fully Integrated System Functions

AGC, Microphone preamplifier

Speaker drivers

Low Voltage Operation

Customizable and localizable for different markets and languages

Highest quality in voice record and playback for embedded and standalone applications

Voice band design for efficient speech capture

Unique approach avoids cost and complexity of DSP based solutions

Voice record and playback system on a single chip

To off load CPU time in a system by 30% to 40%

Analog circuit elements for complete system design

No need to change Microcontroller software

Applications

Novelties

Toys

Automotive

Industrial

Home Appliances

Security

PowerSpeech® Family

W581Jxxx, Simple Function, 1-ch Voice Synthesizer

W584Axxx 4-bit μC Base, 1-ch Voice + Dual Tone Melody Synthesizer

W584Bxxx 4-bit μC Base, 1-ch Voice Synthesizer

N584Lxxx, 4-bit uC Base, One Battery, 1-CH Voice + Dual Tone Melody Synthesizer

W588Lxxx 8-bit uC Base, Two Battery, 2-ch Voice / Melody Synthesizer

W588Cxxx 8-bit μC Base, 2-ch Voice + Melody Synthesizer

W588Dxxx 8-bit μC Base, 3-ch Voice + Melody Synthesizer

N588Hxxx, 8-bit uC Base, 3-ch Voice + Melody Synthesizer

BandDirector® Family

W567Bxxx 8-bit μC Base, 4-ch Voice + Wavetable Melody Synthesizer

W567Sxxx 8-bit μC Base, 8-ch Voice + Wavetable Melody Synthesizer

N567Gxxx 8-bit μC Base, 4-ch Voice + Wavetable Melody Synthesizer

N567Kxxx 8-bit μC Base, 6-ch Voice + Wavetable Melody Synthesizer

N567Hxxx 8-bit μC Base, 8-ch Voice + Wavetable Melody Synthesizer

W567Jxxx, 8-bit uC Base, 6-ch Voice + Wavetable Melody Synthesizer

W567Cxxx, 8-bit uC Base, 16-ch Voice + Wavetable Melody Synthesizer

NuVoice™

NuVoice™ Cortex-M0 based voice processor

4.0 to 32KHz Sampling Frequency provides
Industry-Leading Sound Quality
