 常用温湿度计IC
温度计芯片
温湿度计芯片
天气预报芯片
无线温湿度计芯片
温控器产品
温度模块 湿度模块湿湿度模块体温计 电子体温计知识介绍 额温枪 耳温枪 红外测温仪 温度控制 湿度控制 温湿度时间控制

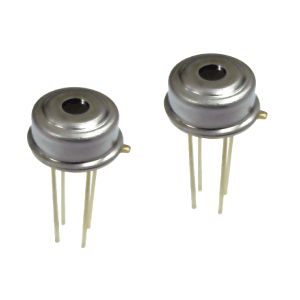

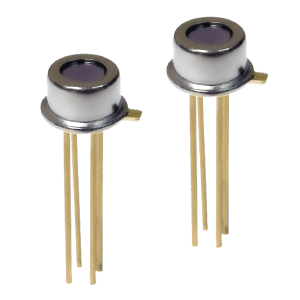

配套传感器
红外体温计
为什么要用红外体温计?
1.
红外体温计测量快速：用水银体温计测量体温，要5分钟以上,可能耽误宝贵的治疗时间。尤其是孩子，体温上升速度快，高烧如果不及时采取措施可能引起抽搐等危险。采用红外体温计测量体温只需要1秒，可以及时测量出体温，及时医治。
2.
红外体温计测量安全：水银体温计容易破损，不仅会伤害病人尤其是孩子，更由于水银对人大脑、中枢神经和肾脏和生物的毒害也非常严重，甚至导致死亡。一个体温计的汞足以使2个足球场大的池塘中的鱼死亡……红外体温计测量安全无毒,不会对人体造成任何的伤害和毒害.
3.
红外体温计测量测量准确:水银体温计要求放在腋下的位置正确并且能保证在5分钟以上的长时间夹紧,否则就会测量不准确。测量出的结果也不用容易读准.红外体温计利用这一特点，将温差对测量的误差计算式输入中央微处理系统中，随时检测环境温度的变化并修正其读值，保证红外体温计测量更加的准确。
4.
红外体温计测量使用简单方便:水银体温计要长时间把体温计放在腋下、口中、或者是肛门中,非常的不方便也不舒服,尤其是对孩子.红外体温计采用革命性的测温方法，最能真实的反映人体的核心温度。在欧美已经被医学界广泛采用，并且大量进入家庭。红外体温计测量准确、安全、快速、便于随时检测宝宝的体温，不会对宝宝造成任何地不适的感觉，宝宝容易合作。适合任何年龄的人，甚至新生儿也可操作简单，宝宝可以躺、坐、趴、站，只要把探头插入耳道1秒即可。
|
|
 赠中国欧姆龙电子体温计
|
|
什么是体温计？
|
|
电子体温计知识介绍 |
|
为什么要用红外体温计?
|
|
电子体温计知识性介绍
|
|
停止使用水银体温计 |
|
体温计的原理及使用
|
|
什么是体温计?
|
|
|
|
|
|
|
|
德国博朗红外电子体温计IRT4020（新品）
|
|
红外线一秒耳内测温式体温计（德国原产）
|
|
|
599 |
|
|
|
|
|
|
欧姆龙电子体温计MC-142L(全面替代MC-108L)
|
|
、±0.05℃的精密测量型，适合女性使用
|
|
|
90 |
|
|
|
|
|
|
欧姆龙速测体温宝MC-510
|
|
红外线体温计
|
|
|
398 |
|
|
|
|
|
|
|
瑞士迈克大夫电子体温计MT1671
|
|
电子体温计
|
|
|
48 |
|
|
|
|
|
|
德国博朗红外电子体温计IRT3520
|
|
红外线一秒耳内测温式体温计
|
|
|
799 |
|
|
|
|
|
|
德国赫曼数字体温计（德国原装进口）
|
|
17*130*10mm,蜂鸣
|
|
|
90 |
|
|
|
|
|
|
欧姆龙电子体温计MC-106B
|
|
17*130*10mm,蜂鸣
|
|
|
90 |
|
|
|
|
|
|
德国博朗红外电子体温计IRT4520（新品）
|
|
红外线一秒耳内测温式体温计
|
|
|
699 |
|
|
|
|
|
|
欧姆龙电子体温计MC-107BW
|
|
17*130*10mm,蜂鸣
|
|
|
99 |
|
|
|
|
|
|
欧西亚 额头式体温计 FT101
|
|
额头式红外线体温计
|
|
|
518 |
|
|
|
|
|
|
意大利富克士红外非接触体温计
|
|
医用非接触式快速体温计0700型
|
|
|
1800 |
|
|
|
|
|
|
瑞士迈克大夫耳温枪IR 1DA1
|
|
电子体温计
|
|
|
348 |
|
|
|
|
|
|
欧姆龙 电子体温计MC-670
|
|
34*125.2*15mm,蜂鸣
|
|
|
238 |
|
|
|
|
|
|
欧姆龙 电子体温计MC-612
|
|
148.7*38*34.6mm,蜂鸣
|
|
|
299 |
|
|
|
|
|
|
欧姆龙 电子体温计MC-105
|
|
宽17mm×长130mm×厚10mm
|
|
|
69 |
|
|
|
|
CONSUMER
生化科技量測方面控制IC及Sensor，如人體體溫量測、各種壓力量測、高度量測、體重量測等
消費性電子類方面語音合成、語音辦識應用、語音合成含液晶顯示控制器等
通訊電子類方面
電話整合IC等
微控制器方面
4-bit/
8-bit控制器、含液晶顯示的控制器、含A/D，D/A的控制器等
|
Item |
Product |
Description |
|
JA31102 |
Clinical
Thermometer |
The JA31102/03/04/05 are CMOS
digital clinical thermometer IC for measuring body temperature
from 32.00°C
~
43.00°C (90°F ~
109.9°F). |
|
JA31106 |
One-Decimal Clinical Thermometer |
The
JA31106 is CMOS digital clinical thermometer IC for measuring
body temperature from 32.0°C ~ 42.9°C (90°F ~ 109.9°F). |
|
JA31107 |
FAST Clinical Thermometer |
The
JA31107 is CMOS digital clinical thermometer IC for measuring
body temperature from 32.0°C ~ 42.9°C (90°F ~ 109.9°F). |
|
CFP31202 |
Enhanced Two-Decimal Clinical Thermometer |
The CFP3120X are CMOS digital clinical
thermometer IC for measuring body temperature from 32.00°C ~
42.99°C (90°F ~ 109.9°F). Better ESD capability (>6KV). |
|
CFP31206 |
Enhanced One-Decimal Clinical Thermometer |
The CFP31206 is CMOS digital clinical
thermometer IC for measuring body temperature from 32.0°C ~
42.9°C (90°F ~ 109.9°F). Better ESD capability (>6KV). |
|
JA32010 |
8-bit
MCU, ADC, LCD controller |
The
JA32010 incorporates an 8-bit MCU, ADC, LCD controller, 8
programmable general I/Os and R/F circuits inside. |
|
JA32020 |
Dual slope ADC with low battery detector
|
The JA32020 offers very high accuracy A/D conversion at low cost
by using Dual Slope integration. |
|
JA32030 |
2-Channel Dual Slope ADC with
Regulator |
The JA32030 offers two-channel A/D conversion at low cost by
using Dual Slope integration structure. |
|
JA32050 |
8-Bit MCU, ADC, LCD Controller
|
The JA32050
incorporates an 8-bit MCU, ADC, LCD controller, timers, WDT, 8
programmable general I/Os and R/F circuits inside. |
 VOICE
| Item |
Product |
Description |
|
JA21000 series
Product Guide
User Manual |
MCU - Voice
MaskROM
Voice Synthesizer and Controller |
The JA21000 series is a series of 3 to
340 seconds single chip voice synthesizer IC which contains a PWM
direct drive circuit or AUD output for transistor application. |
|
CFP22000 series
Product Guide |
MCU - Voice
MaskROM
Voice Synthesizer and Controller |
The
CFP22000 is a series of 32 to 340 seconds single chip voice
synthesizer IC with RTC which contains a PWM direct drive circuit or
AUD output for transistor application. |
|
JA23000 series
Product Guide |
MCU - Voice
MaskROM Voice
Synthesizer and Controller |
The JA23000 series is a series of 14 to
340 seconds (S.R.=6kHz, 4-bit ADPCM) single chip voice synthesizer
IC which contains a PWM Direct Drive circuit or AUD output for
transistor application. |
|
JA29201/03/
07/14
User Manual
(中) |
Simple - Voice
3, 7, 14 seconds Pure Voice
Synthesizer |
The JA29201/03/07/14 are series of
single-chip synthesizing CMOS VLSI IC which synthesizes voice by
LOG_PCM algorithm.
|
|
JA29221/32/43/
65/66/75/87
User Manual
(英)
|
Simple - Voice
21,
32, 43, 65, 66, 75, 87 seconds Pure Voice
Synthesizer |
The JA29221/32/43/65/66/75/87 are series
of single-chip synthesizing CMOS VLSI IC which synthesizes voice by
LOG_PCM algorithm. |
MCU
| Item |
Product |
Description |
|
JA54150 |
4-bit
Micro-Controller with 63 dots LCD Driver |
The
JA54150 is a single chip 4-bit Micro-Controller with LCD drivers.
|
|
JA54170
已phase
out, 請參照(541A0) |
4-bit Micro-
Controller With LCD Driver |
The JA54170 is a single chip 4-bit microcontroller with LCD drivers.
|
JA54180
(541A0)
(MTU418) |
4-bit CPU with 60
dots LCD |
The JA54180
is a single-chip 4-bit microcontroller with LCD drivers. |
JA54190
(54270)
(MTU419) |
4-bit CPU with 132
dots LCD |
The JA54190
is an embedded high performance 4-bit microcomputer with an on-chip
LCD driver. |
|
CFP541A0 |
4-Bit Micro-Controller With 75 Dots LCD Driver |
The
CFP541A0 is a single chip 4-bit microcontroller with LCD drivers. |
|
JA54270 |
4-bit
Micro-controller with LCD driver |
The
JA54270 is an embedded high-performance 4-bit microcomputer with an
LCD/LED driver. |
JA54290 (54300)
(MTU429) |
4-bit CPU with 336
dots LCD |
The JA54290
is an embedded high performance 4-bit microcomputer with an on-chip
LCD driver. |
|
JA54300 |
4-bit CPU with 336
dots LCD |
The JA54300
is an embedded high performance 4-bit microcomputer with an on-chip
LCD driver. |
JA58560
(MTU8B56) |
8-bit Mask type MCU |
The JA58560 series is an ROM based 8-bit
microcontroller which employs a full CMOS technology enhanced with
lowcost, high speed and high noise immunity. |
|
JA5856F
|
EPROM-Based 8-Bit CMOS Micro-controller |
JA5856F
is an 8-bit micro-controller
that employs enhanced CMOS Mask
ROM technology
with low cost, high speed and high noise immunity. |
|
JA58572 |
Mask-Rom 8-Bit CMOS Micro-controller |
The JA58572
is an 8-bit micro-controller
that employs enhanced CMOS Mask
ROM technology
with low cost, high speed and high noise immunity. |
JA585XE
(MTU8B54E/55E
/56E/57E) |
EPROM-Based 8-bit
CMOS Micro-controller |
The JA585XE
series is an EPROM based 8-bit microcontroller which employs a full
CMOS technology enhanced with lowcost, high speed and high noise
immunity. |
發展工具
|
Tools |
CFPICE V3.0.3.RAR |
Ver：3.0.3 |
最後更新日期：2007/05/28 |
|
Application Bodies |
CFP22XXX Series, JA23XXX Series, JA320XX
Series, CFP32060,CFP3207E |
|
Tools |
CFPICE.ZIP |
Ver：3.0 |
最後更新日期：2006/11/07 |
|
Application Bodies |
CFP22XXX Series, JA23XXX Series, JA320XX
Series, CFP32060 |
|
Tools |
JAICE Voice Module.ZIP |
Ver：1.0 |
最後更新日期：2005/05/23 |
|
Application Bodies |
JA21XXX Series, JA23XXX Series |
| Tools |
JA292.ZIP |
Ver：2.9 |
最後更新日期：2005/03/31 |
|
Application Bodies |
JA292XX Series |
| Tools |
JA291.ZIP |
Ver：2.1 |
最後更新日期：2003/02/19 |
|
Application Bodies |
JA291XX Series |
4-Bits
| Tools |
JAuP4.exe
|
Ver：6.20 |
最後更新日期：2006/11/07
|
|
Application Bodies |
1. Please install the
"port95nt.exe" before setup JAuP4.
2. JA54XXX
Series (427, 428, 430) Emulator for Windows 98/2000
|
| Tools |
Asm4x.exe
|
Ver：4.70
|
最後更新日期：2006/11/07 |
|
Application Bodies |
JA54XXX
Series (410, 415, 416, 41A, 427, 428, 430) Compiler for DOS
|
| Tools |
Emu41 v3.7.1 setup.exe
|
Ver：3.71 |
最後更新日期：2007/7/30 |
|
Application Bodies |
JA541XX
Series (410, 415, 416, 417, 417A) Emulator for DOS
|
| Tools |
Emu41.exe
|
Ver：3.70
|
最後更新日期：2006/11/07 |
|
Application Bodies |
JA541XX
Series (410, 415, 416, 417, 417A) Emulator for DOS
|
| Tools |
Emu42.exe
|
Ver：2.90
|
最後更新日期：2006/11/07 |
|
Application Bodies |
JA542XX
Series (427, 428, 430) Emulator for DOS
|
8-Bits
|
Tools |
CFPT WriterV1.0.4.rar
|
Ver：1.0.4
|
最後更新日期：2007/05/28
|
|
Application Bodies |
1.
JA5856E,JA5856F,JA5857E,CFP5857F
2. CFP3207E
|
|
Tools |
CFPT Writer UM.pdf
|
Ver：1.0
|
最後更新日期：2007/05/10
|
|
User's Manual |
CFPT writer V1.0.4 User's Manual
|
|
Tools |
JAuP8.exe
|
Ver：3.5
|
最後更新日期：2007/05/28
|
|
Application Bodies |
1. Please install the
"port95nt.exe" before setup JAuP8.
2. JA585XE, JA5857F |
|
Tools |
JAuP8UM.pdf
|
Ver：2.0
|
最後更新日期：2004/12/02
|
|
User's Manual |
MTU8B5X 8bit MCU writer User's Manual
|
應用文件
JA5856X
compare note (Ver. 0.1)
|
|
 |
|
