产品规格
|
．Capacitance sensor input channels—14ch
．SPI®-compatible serial interface—(AD7142)
．I2C®-compatible serial interface—(AD7142-1)
．Package type—32-lead, 5 mm x 5 mm LFCSP_VQ
．Supply voltage—2.6 V to 3.6 V
．Full power mode:—1mA
．Low power mode:—50uA
．Resolution—16Bit
．Frequency—240KHz
．ESD Rating (Human Body Model)—2.5 kV
．Operating Temperature Range—−40°C to +150°C |
|
产品特性
|
．Automatic
compensation for environmental changes
．On-chip RAM to store calibration data
．Interrupt output and GPIO
．Automatic adaptive threshold and sensitivity
levels |
|
产品应用
|
MP3/MFP/Mobile
phone/Car TV/DSC |
|
文字介绍
|
AD7142将ADI公司获奖的CDC产品种类扩充到消费性应用，它具有超过同类解决方案的显著优势，包括提高抗环境干扰能力。这些干扰来自环境温度和湿度，他们会降低其他电容器传感器的性能。该组件的功耗比同类解决方案低50%，因而使其适合电池供电的应用。AD7142有14个输入端，可对各种传感器配置进行设置，例如触控滚动条、8路位置传感器，以及驱动弹出选单的滚轮，因而使用户可以更方便地浏览大量的音乐、图片和视讯档案。
「蜂巢式手机和MP3播放器的使用接口是最困难的设计环节之一，因为它要求在现代触摸屏设计最小尺寸和最低功耗范围内具有最高的精密度和功能，用于MFP产业和汽车应用的CDC产品一样，AD7142能以较低的成本提供强韧性和无差错的性能，同时比以前的产品提供更大的设计自由度。」
AD7142凭借ADI公司的电容器感应技术具有高度可程序能力，并包含自适应阈值和灵敏度算法，允许芯片调整用户的手指尺寸，因而使该传感器对手指粗细不同的用户都适用。这款16位、低噪声、高精密度CDC允许终端用户调整单个传感器的敏感程度以适应他们的手指和触控方式。AD7142透过片内数字校准功能实现独特的自动环境补偿，因而不论在任何时间和任何环境条件都能保证传感器的性能无差错。由于该组件显而易见地对用户提供了这种连续的校准，所以在外部传感器上不会产生误触控或者无效触控。
另外，AD7142的低功耗特色使其很适合电池供电的应用，包括数字相机、电视遥控器和游戏机及可携式多媒体播放器。全功率方式工作电流小于1.0mA，而待机方式工作电流小于2.0uA。该组件还能够灵活地调整输出速率以获得最优化的功耗。AD7142提供SPI或者I2C兼容接口选择，与ADI公司用于手机和个人媒体播放器的Blackfin处理器可以很好地配合运作。 |
|
|
|
|
|
|
产品规格
|
．Differential Phase—0.1 degrees
．Differential Gain—0.25%
．Power Down Current—0.1uA
．Power Consumption—1.85mA
．Supply Voltage—2.5V ~ 6V
．Input Bias Current—0.5uA
．Operating Temperature Range—-40℃ ~ +125℃
．Package—SC70 |
|
产品特性
|
．Rail to Rail
Output
．Support Desable Function |
|
产品应用
|
影像输出/入系统 |
|
文字介绍
|

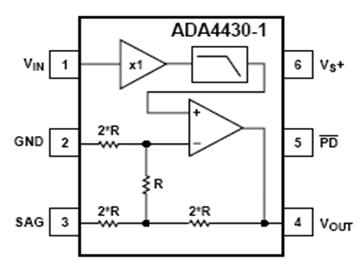

ADA4430-1
内建六阶低通滤波器可提供精准的频率输出并支持Disable输出的功能,可有效简化传统由L-C组成的滤波器设计. |
|
|
|
|
|
|
产品规格
|
．Differential Phase—0.6 degrees
．Differential Gain—0.5%
．Resolution (Each ADC)—10bit
．Analog Front-End Crosstalk—60dB
．Horizontal Lock Range—±5%
．Vertical Lock Range—40~70Hz
．Fsc Subcarrier Lock Range—±1.3KHz
．Vertical Lock Timw—2 fields
．Autodetection Switch Speed—100 line
．CVBS Analog Supply Current—33 mA
．S-Video Analog Supply Current—59 mA
．Y/Cb/Cr Analog Supply Current—77 mA
．Total Power Dissipation in Power-Down Mode—15
uW |
|
产品特性
|
．支持3/6信道模拟讯号输入
．支持NTSC/PAL/SECAM影像规格自动侦测
．CVBS/S-Video/ Y/Cb/Cr 影像格式输入
．CTI/DNR 影像强化调整
．5线式梳型虑波器
．一组超高速10bit ADC |
|
产品应用
|
车用电视/个人多媒体播放器/影像监视系统 |
|
文字介绍
|

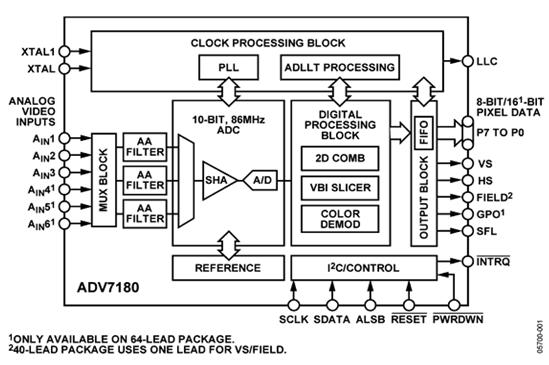

ADV7180是ADI首次发表的低价格但提供高质量影像输出的影像译码器.ADV7180在输入的前端提供了阶梯状滤波器研发者不须外加滤波器.ADV7180亦提供了DNR/CTI的影像强化输出调整,ADLLT更独步全球提供研发者在弱讯号的处理强而有力的支持.ADV7180内建智能型的图像处理器让ADV7180在控制上更简化,只须设定少数的缓存器就可输出高质量影像,改写影像译码器繁琐复杂的设定程序. |
|
|
|
|
|
|
产品规格
|
．DAC分辨率—11bit
．DAC数—3
．DAC速度—297MHz
．输入模式—CCIR 656 8bit
．输入模式—CCIR 601 16bit
．输入模式—DDR 8bit
．输入模式—R/G/B 565
．输出格式—CVBS
．输出格式—S-Video
．输出格式—Y/Pb/Pr |
|
产品特性
|
．工作电压—1.8~3.3V
．工作温度—-40℃~+85℃
．包装—LCSP |
|
产品应用
|
CAR TV/GPS |
|
文字介绍
|

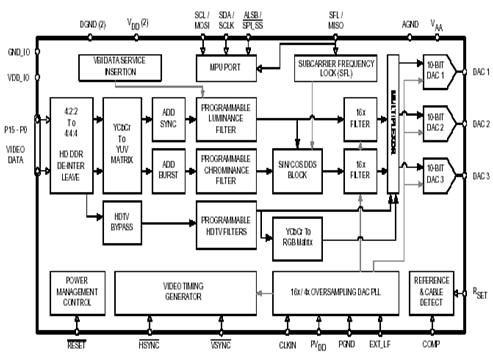

ADV7393为ADI首颗低成本高画质输出的SD/HDTV影像编码器.不仅支持各种格式输入,输出更可支持到1080i
60Hz/1080p 30Hz.控制方式为I2C.ADV7393更率先支持Cable
Detection,当DAC侦测到使用者没有连接Cable时,自动将DAC电源关闭以节省电力并提高可携式产品的电池的使用时间. |
|
|
|
|
|
|
产品规格
|

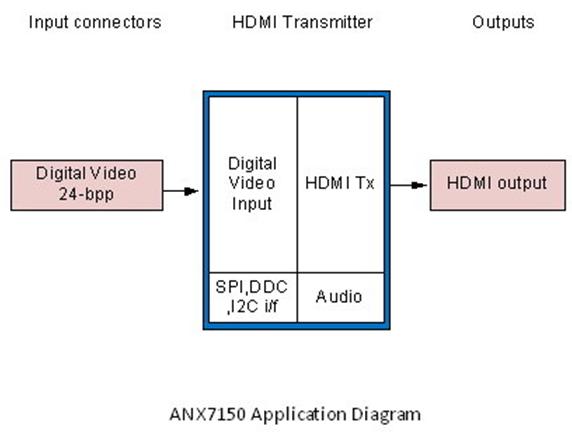

ANX7150完全支持HDMI
1.3版本，向后兼容DVI1.1标准并支持HDCP1.1内容保护。该芯片以通过HDMI和HDCP认证测试，ADTC-EasyHD实验室的互联互通测试。 |
|
产品特性
|
ANX7150使用了突破性的专利设计，使得本款芯片能够回收HDMI连接中浪费掉的能量，并重新利用，来满足芯片应用所需功耗，电力需求减少至接近零,
。与市面现有产品比较，ANX7150减少电池电量的消耗高达95%以上。 |
|
产品应用
|
|
|
文字介绍
|
将ANX7150使用在便携设备中，制造商可以在不牺牲电池使用寿命的同时为终端用户带来惊人的高清音视频效果。ANX7150已广泛应用于MP4设备、多媒体手机、数码相机、数码摄像机等众多便携设备上。
ANX7150被设计为促进移动高清视频革命。随着消费者不断地将更多的高质量视频内容存储到移动设备上，他们将积极寻找简单、低功耗的解决方案以在更大的高分辨率显示器上播放视频。此产品还整合了先进的数字音频，为Dolby数字和DVD音频提供8通道I2S支持。它还为PCM、Dolby数字和DTS环绕声格式和数字音频传输提供S/PDIF协议支持。其音频接口允许可编程的I2S通道映射。
ANX7150带有软件控制的电源管理功能，其可提供的封装方式有48和64针QFN、80针TQFP和81针BGA。 |
|
|
|
|
【ANPEC -
APA2030/2031 AUDIO AMP】 |
|
|
|
产品规格
|
Stereo 2.6W Audio Amplifier (With Gain Control) |
|
产品特性
|
· Low
Operating Current with 6mA
· Improved Depop Circuitry to Eliminate Turn-On
Transients in Outputs
· HighPSRR
· Internal Gain Control, Eliminate External
Components
· 2.6W per Channel Output Power into 3W Load at
5V, BTL Mode
· Multiple Input Modes Allowable Selected by
HP/LINE Pin (APA2030)
· Two Output Modes Allowable with BTL and SE
Modes Selected by SE/BTL Pin (for APA2030 only)
· Low Current Consumption in Shutdown Mode(50mA)
· Short Circuit Protection
· TSSOP-24P (APA2030) and TSSOP-20P (APA2031)
with Thermal Pad Packages.
· Lead Free and Green Devices Available(RoHS
Compliant) |
|
产品应用
|
· Notebook PCs
· LCD Monitor |
|
文字介绍
|
APA2030/1 is a
monolithic integrated circuit, which provides
internal gain control, and a stereo bridged
audio power amplifiers capable of producing 2.6W
(1.9W) into 3W with less than 10% (1.0%) THD+N.
By controlling the two gain setting pins, Gain0
and Gain1, the amplifier can provide 6dB, 10dB,
15.6dB, and 21.6dB gain settings. The advantage
of internal gain setting can be less components
and PCB area. Both of the depop circuitry and
the thermal shutdown protection circuitry are
integrated in APA2030/1, that reduces pops and
clicks noise during power up or shutdown mode
operation. It also improves the power off pop
noise and protects the chip from being destroyed
by over temperature and short current failure.
To simplify the audio system design, APA2030
combines a stereo bridge-tied loads (BTL) mode
for speaker drive and a stereo single-end (SE)
mode for headphone drive into a single chip,
where both modes are easily switched by the
SE/BTL input control pin signal. In addition,
the multiple input selections are used for
portable audio system. The APA2031 eliminates
both input selection and single-end (SE) mode
function to simplify the design and save the PCB
space. |
|
|
|
|
【ANPEC -
APA2068 AUDIO AMP】 |
|
|
|
产品规格
|
Stereo 2.6W Audio Power Amplifier (With
DC_Volume Control) |
|
产品特性
|
· Low
Operating Current with 9mA
· Improved Depop Circuitry to Eliminate Turn-on
and Turn-off Transients in Outputs
· High PSRR
· 32 Steps Volume Adjustable by DC Voltage with
Hysteresis
· 2.6W per Channel Output Power into 4W Load at
5V, BTL Mode
· Two Output Modes Allowable with BTL and SE
Modes Selected by SE/BTL pin
· Low Current Consumption in Shutdown Mode(1mA)
· Short-Circuit Protection
· Thermal Shutdown Protection and Over-Current
Protection Circuitry
· Maximum Output Swing Clamping Function
· The OUT+ Signal and the IN- Signal are
Outphase
· SOP-16P Packages with Thermal Pad Package
· Lead Free and Green Devices Available(RoHS
Compliant) |
|
产品应用
|
· NBs
· LCD Monitor or TVs |
|
文字介绍
|
APA2068 is a
monolithic integrated circuit, which provides
precise DC volume control, and a stereo bridged
audio power amplifiers capable of producing 2.6W
(1.8W) into 4W with less than 10% (1.0%) THD+N.
The attenuator range of the volume control in
APA2068 is from 20dB (DC_Vol=0V) to -80dB
(DC_Vol=3.54V) with 32 steps. The advantage of
internal gain setting can be less components and
PCB area. Both of the depop circuitry and the
thermal shutdown protection circuitry are
integrated in APA2068, that reduce pops and
clicks noise during power up or shutdown mode
operation. It also improves the power off pop
noise and protects the chip from being destroyed
by over temperature and short current failure.
To simplify the audio system design, APA2068
combines a stereo bridge-tied loads (BTL) mode
for speaker drive and a stereo single-end (SE)
mode for headphone drive into a single chip,
where both modes are easily switched by the
SE/BTL input control pin signal. |
|
|
|
|
【ANPEC -
APA2600 AUDIO AMP】 |
|
|
|
产品规格
|
2.8W Stereo Class-D Audio Amplifier |
|
产品特性
|
· Operating
Voltage: 2.4V~5.5V
· Filter-free Class-D Amplifier
· High Efficiency 87% at PO=1.5W, 8W Speaker,
VDD=5V
· Fast Startup Time (20ms)
· High PSRR: 70dB at 217Hz
· Thermal and Over-Current Proections
· Two Gain-Setting Selectable : 6dB and 12dB
· Less External Components Required
· Space Saving Package– TQFN3x3-16
· Lead Free Available (RoHS Compliant) |
|
产品应用
|
· Handsets
· PDAs
· Portable multimedia devices
· Notebooks |
|
文字介绍
|
The APA2600 is
a stereo, high efficiency, filter-free Class-D
audio amplifier available in a TQFN3x3-16 pins
package.
The internal gain setting can minimize the
external component count and save the PCB space.
For the flexible application, the gain can be
set to 6dB or 12dB by GAIN control pin. High
PSRR and differential architecture provide
increase immunity to noise and RF rectification.
In addition to these features, short startup
time and small package size make the APA2600 is
an ideal choice for cellular handsets, PDA, and
notebook PCs. |
|
|
|
|
【ATLAB -

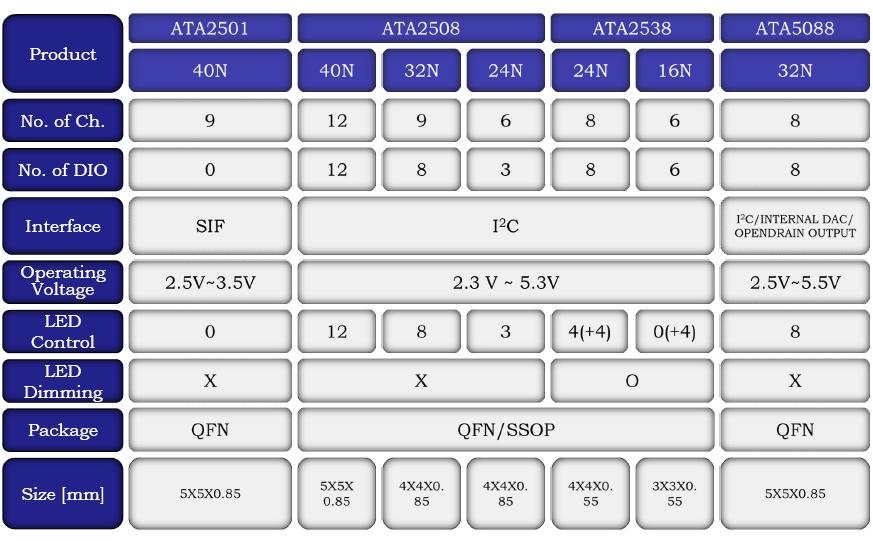

ATLab Digital Capacitive Sensor (DPI7
family)】 |
|
|
|
产品规格
|
>Extremely low power consumption (under 50μA in
active mode/20uA in idle mode)
>Support wide AIC™dynamic range. (~70pF)
>Pulse Pass TDM architecture
>Supports 8 channels touch sensor and 4~8
channels open drain type touch outputs.
>Support 1 channel is pu |
|
产品特性
|
>High
Sensitivity
30 fF/step now (x 5 than others), break 1
fFbarrier soon.
Small sensing area Better resolution
Extend to another applications (e.g. proximity
sensing, display embedded touch screen)
>Digital Advantages
Following Moore’s Law / Insens |
|
产品应用
|
.Mobile Phone
and other Handheld Devices
.Portable Media Players(MP3,Video/Photo)
.Digital Still and Video Cameras
.LCD Monitor and Flat-Panel Display Controls
.Keyboards and Mice
.Remote Controls
.GPS Navigation Systems |
|
文字介绍
|
Since 2005
ATLab released new touch sensor device of DPI7
family to market. DPI7 family achieved lower
power consumption in IDLE power saving mode as
low as 70% of its predecessor and added a self
recovery mechanism against a failure due to an
electrical |
| |
|
|
|
|
产品规格
|
3*3*0.9mm |
|
产品特性
|
3D加速度传感器 |
|
产品应用
|
Mp3 / Mp4 /
PMP / 手机 / 计步器 / 游戏手柄 |
|
文字介绍
|
对比BMA020C,
BMA150除了在封装尺寸和电器性能上延续了BOSCH G-sensor产品的优势,
在精度上表现更为出色! 除了能实现BMA220的基本应用以外,
还可以配合BOSCH提供的精确算法, 实现计步器功能,
可以选择不同的运动模式,侦测用户每天运动状况.目前在Apple-Ipod
Nano产品上也根据G-sensor的特性, 增加了记步健身功能. |
|
|
|
|
|
|
产品规格
|
2*2*0.9mm |
|
产品特性
|
3D加速度传感器 |
|
产品应用
|
Mp3 / Mp4 / 手机
/ PMP |
|
文字介绍
|
德国Bosch(博世)三轴加速度传感器(G-sensor)
以其目前市面最小封装尺寸(2*2*0.9mm) 和 超低功耗(工作:200μA,
待机:1μA)的独特优势特别适合应用于手持产品.
根据侦测多媒体手持设备X.Y.Z三轴的参数变化,实现以下功能:
‧Mp4横竖屏切换,
‧双敲击播放/暂停,
‧甩动前后换歌/待机画面等. |
|
|
|
|
|
|
产品规格
|
USB Speadkers-on-a-Chip with Hardware Acoustic
Echo Cancellation DSP.
48Pin QFN |
|
产品特性
|
1. Wideband
Acoustic Echo Cancellation DSP engine exceeding
TIA 920 requirement.
2. Integrated 1.2W Class-D amplifier,higher
output reference design available.
3. 24-bit DAC/ 16-bit ADC.
4. USB 2.0 full speed compliant.
5. Auxiliary line in input with jack sense.
6. Music-On-Hold.
7. Aux Fade-in/Fade-out.
8. DSP Array Microphone.
9. USB bus powered or external powered option. |
|
产品应用
|
. All-in-One
PC speakers,MP3 player dock,speakerphone.
. USB VoIP speakerphone.
. LCD monitor with built-in speakers and
speakerphone.
. Notebook PC docking station.
. Embedded USB audio application. |
|
文字介绍
|
单芯片:CX20562
整合了数字影音处理器、音讯编码器以及 Class-D 放大器等功能.
主要功能包括卓越音质表现的先进声音处理、回音消除以及杂音抑制等.
此单芯片解决方案整合通用总线 USB 接口，能够让制造商开发出兼容于 PC 与 Mac
的随插即用式产品，并拥有可以与各种音讯外围连接的附属模拟音源输入功能。 |
|
|
|
|
|
|
产品规格
|
‧超小封装尺寸的SMD (3.2 × 2.5 × 0.7mm)
‧频率范围宽12MHZ-60MHZ
‧超小封装尺寸的SMD (3.2 × 2.5 × 0.7mm) |
|
产品特性
|
‧非常通用的全系列AT型晶体单元。
‧小尺寸封装，高稳定性。 |
|
产品应用
|
‧各种IC匹配的时钟。
‧手机，蓝牙，ISM,MCU时钟等
‧ECU匹配时钟。 |
|
文字介绍
|
目前的电子产品越来越向小型化、便携式发展，这就要求元器件同样向小小型化发展，EPSON
正是走在器件小型化的前列，在小型化的同时保持了产品一贯的高精度，高稳定度，为您的设计提供便利。 |
|
|
|
|
|
|
产品规格
|
‧超小封装尺寸的SMD (3.2 × 1，5 × 0.8 mm)
‧标准时钟频率32.768KHZ. |
|
产品特性
|
‧采用QMEMS工艺具有优越的一致性和稳定性。 |
|
产品应用
|
‧小型便携式通讯设备和电子设备 |
|
文字介绍
|
EPSON专注于小尺寸，高精度，高稳定度的32.768K晶体，主要应用于时钟、小型便携式通讯设备和电子设备，比如超薄手机，应为其厚度只有0.8mm，所以特别适用于对体积要求严格的电子产品。 |
|
|
|
|
|
|
产品规格
|
‧超小封装尺寸的SMD (5 × 3.2 × 1.3 mm)
‧VDD=3.0V+-0.3V |
|
产品特性
|
‧通过采用真空密封实现优异的耐环境特性
‧利用振动晶体的高度稳定性
‧睡眠模式下的剪辑启动时间和低功率消耗 |
|
产品应用
|
‧
便携多媒体播放器图像稳定性检测
‧人机接口的运动检测 |
|
文字介绍
|
照相机的防抖补正是通过防抖，即测试出人的动作来进行补正的。人的动作是以腕关节为中心的旋转运动为主体的。为了测试这个旋转运动，检测角速度就是角速度传感器的重要使命。通过检测角速度，就能正确地测试出耕种各样的动作。EPSON
Toyocom的角速度传感器以水晶为材料，实现了小型化并达到了高度的稳定性，为此被数码相机所采用。同时也大量应用于例如导航系统或者游戏等需要检测人或者物体动作的商品。 |
|
|
|
|
【Infineon - ESD0P2RF-02LRH】
|
|
|
|
产品规格
|
ESD / transient protection of RF signal lines
according to:
IEC61000-4-2 (ESD): ±20kV (contact)
IEC61000-4-4 (EFT): 40 A (5 / 50 ns)
IEC61000-4-5 (Surge): 3 A (8 / 20 μs) |
|
产品特性
|
• Extremely
small form factor down to 0.62 x 0.32 x 0.31 mm³
• Very low dynamic resistance
• Max. working voltage: ±5.3 V
• Extremely low capacitance: 0.2 pF typ.
• Very low reverse current < 1 nA typ.
• Very low series inductance down to 0.2 nH typ.
• Pb-free (RoHS compliant) package
• Qualified according AEC Q101 |
|
产品应用
|
• ESD
protection of sensitive RF signal lines
• RF antenna protection, frontend module
• GPS, mobile TV, FM radio, RKE, UWB |
|
文字介绍
|
ESD0P2RF-02LRH
is the protection diode , Diode bi-direction,
Extremely low capacitance: 0.2 pF, Can
protection External ANT(DVB-T,FM….) input. |
|
|
|
|
【Infineon - ESD5V0L1B-02V】
|
|
|
|
产品规格
|
ESD / transient protection according to:
IEC61000-4-2 (ESD): ± 25 KV (contact)
IEC61000-4-4 (EFT): 40 A (5/50 ns)
IEC61000-4-5 (surge): 2.5 A (8/20 μs) |
|
产品特性
|
• Max. working
voltage: ± 5 V
• Ultra low dynamic resistance: 0.3 Ω
• Low capacitance: 8.5 pF typ
• Very low reverse current: < 1 nA typ.
• Pb-free (RoHS compliant) package SC-79
• bi-directional
• Qualified according AEC Q101 |
|
产品应用
|
• Cellular
handsets, portable devices,
notebooks and computers
• Digital cameras, power supplies
and audio/ video equipment, accessories |
|
文字介绍
|
ESD5V0L1B-02V
is the protection diode , Diode bi-direction &
Package size compatitable 0603 size. RD solder
to PCB easily. |
|
|
|
|
|
|
产品规格
|
ESD / transient protection of four I/O lines
and one Vcc line exceeding:
IEC61000-4-2 (ESD): ± 15 kV (contact)
IEC61000-4-4 (EFT): 2.5 kV / 50 A (5/50 ns)
IEC61000-4-5 (surge): 3 A (8/20 μs) |
|
产品特性
|
• Reverse
working voltage data lines: 5.3 V max.
• Reverse working voltage Vcc: 6 V max.
• Very low capacitance: 0.4 pF typ.
• Very low reverse current < 10 nA typ.
• Very low clamping voltage
• Pb-free (RoHS compliant) package SC74 |
|
产品应用
|
• USB 2.0 and
USB 3.0 ports
• Ethernet port: 10/100/1000 Mb/s
• IEEE 1394 FireWire ports
• Mobile communications e.g. high-speed
SIM card protection
• Consumer products (STB, DVD, DSC, DVC...)
• Notebooks and desktop computers, peripherals |
|
文字介绍
|
The
ESD5V3U4RRU is a TVS diode array in a ultra low
Capacitance. The ESD5V3U4RRU, featuring a
typical capacitance of 0.4 pF and was designed
for digital high-speed applications operating at
voltages of up to 5.3 V,In USB 2.0 port is esay
use. |
|
|
|
|
【Inpaq -
ACA-5036-A2-CC-S】 |
|
|
|
产品规格
|
2.4GHz ISM Band Chip Antenna
L*W*T=5.2*3.7*0.7 mm |
|
产品特性
|
‧Center
Frequency(Mhz)： 2450 ‧Bandwidth(MHz): 180
‧ Peak Gain(dBi): 3 typ
‧Impedance（Ω）: 50 typ.
‧Efficiency(%): 80 typ
‧Matching Circuit: Pi matching circuit
‧Test Condition: Measured on 80*40 mm Antenna
Evaluation Board. |
|
产品应用
|
Bluetooth,
WLAN, Wi-Fi, ZigBee,802.11b/g |
|
文字介绍
|
‧High gain and
single band
‧Compact size and low profile
‧Omni-directional
‧SMD type
‧RoHS compliant |
|
|
|
|
|
|
产品规格
|
Power Inductor
L*W*T=2.5*2.0*0.9 mm |
|
产品特性
|
‧Inductance(uH)： 1.5
‧Test Freq(MHz)：1
‧S.R.F(MHz) Min.：50
‧Rated Current(mA)：1500 |
|
产品应用
|
Suitable for
DVD, DSC, PND, PC, NB, Power Line. |
|
文字介绍
|
‧The
monolithic construction performs high
reliability and ensures a closed magnetic flux
in a component avoids magnetic leakage and
interference.
‧Allow for higher mounting density.
‧Low DC resistance |
|
|
|
|
|
|
产品规格
|
TVS(Transient Volitage Suppressor)
SOT23-6L
4 channels |
|
产品特性
|
‧Capactance(pF)： 1
‧Vrwm(Volts)：5V
‧ Vb(Volts)：6.2V
‧ ESD Air/Contact(KV max.)：15/8 |
|
产品应用
|
‧Low
Capacitance Product
‧Applications for High-Speed
‧Signal Lines sunch as HDMI,DVI,
‧USB,IEEE1394 Port etc. |
|
文字介绍
|
‧SMD type
silicon based chip.
‧Quick response time(<1ns).
‧Low leakage current and clamping voltage.
‧Low capacitance can meet high speed single
transient voltage protection
‧Small package to save board space
‧Solid-stage silicon-avalanche technology
‧ead free type |
|
|
|
|
【NEWPORT - NM310 (DVB-T/H Dual Mode) /
NM305 (DVB-T)】 |
|
|
|
产品规格
|
NMI310: DVB-H/T RF Tuner+Demodulator SOC
NMI305: DVB-T RF Tuner+Demodulator SOC
0.13um CMOS
VHF, UHF and L Band multi-band support
Ultra low power consumption: 20mW in DVB-H mode
and 200mW in DVB-T mode
8mm x 8mm BGA package
Support SPI, SDIO, TS, EBI and I2C Interfaces |
|
产品特性
|
RF Tuner,
Baseband Demodulator and Memory integrated on a
single SOC die
Fully MBRAI Compliant
Supports DVB-T mode operation
No external memory required
Low Noise (3dB system NF)
High Linearity (+2dBm IP3)
110Hz Doppler (16QAM, 8K, Rate ½) |
|
产品应用
|
Cellular Phone
PND
PMP/MP4
Portable DVD Player
Portable TV
USB dongle
NB
DTV tuner module |
|
文字介绍
|
NM310结合四频段、直接降频、DVB-H基频解调及所需内存等技术，灵敏度、频道切换及干扰抑制等性能较为突出。接收器可同时接收8个频道并维持在3.0dB的低杂音指数(Noise
Figure)，因此可提供广泛的覆盖性。
另外在低功耗的设计上已达到20dBm，在系统线性度上最多可达到10dB。其它包括55dB的相邻信道选择性能力且在8K模式下有着较高的都卜勒(Doppler)性能。因为SoC的特性加上无需外部内存，Balun转换器及其它射频组件等特点，可降低材料成本。 |
|
|
|
|
【NEWPORT - NMI320 (ISDB-T 1&3 Seg)】
|
|
|
|
产品规格
|
ISDB-T 1 & 3 Segment Tuner + Demodulator SOC
Supports UHF and VHF operation
Power consumption below 72 mW
7mm x 7mm BGA package
Support SPI, SDIO, TS, EBI and I2C Interfaces |
|
产品特性
|
RF Tuner,
Baseband Demodulator and Memory integrated on a
single SOC die
Dual mode 1 segment and 3 segment operation
Very low noise figure: 3.0 dB typical
Up to +25dBm IIP3
-110dm Sensitivity (QPSK) |
|
产品应用
|
Cellular Phone
PND
PMP/MP4
Portable DVD Player
Portable TV
USB dongle
NB
DTV tuner module |
|
文字介绍
|
NM320的主要特点为具有高于120dB的动态增益范围，50dB的镜像抑制及大于55dB的相邻信道选择性能力。功率消耗为70mW、杂音指数(Noise
Figure) 3.0dB，及线性度(+20dBm
IP3)，并包含双频段的接收能力，ISDB-T One & Three
Seg的解调能力及所有所需的内存，而且不需外接内存，Balun转换器及回路滤波器(Loop
Filter)。使能于较少的材料成本(BOM Cost)下，提供客户完整的解决方案。 |
|
|
|
|
|
|
产品规格
|
Low VCEsat (BISS) transistor |
|
产品特性
|
‧Low
collector-emitter saturation voltage VCEsat
‧High collector current capability: IC and ICM |
|
产品应用
|
‧Power
management
‧Driver in low supply voltage applications
‧Inductive load driver |
|
文字介绍
|
PBSS5350X: PNP
low VCEsat (BISS)
transistor/VCEO=50V/IC=3A/SOT89
PBSS4350X:NPN low VCEsat (BISS)
transistor/VCEO=50V/IC=3A/SOT89
PBSS5350D:PNP low VCEsat (BISS)
transistor/VCEO=50V/IC=3A/SOT457
PBSS5350Z:PNP low VCEsat (BISS)
transistor/VCEO=50V/IC=3A/SOT |
|
|
|
|
|
|
产品规格
|
150 MHz pixel rate HDMI 1.3 transmitter with 3 ×
8-bit video inputs, HDCP and CEC support |
|
产品特性
|
‧DVI 1.0
‧HDMI 1.3a
‧EIA/CEA-861B
‧CEC (HDMI 1.3)
‧SimplayHD
‧HDCP 1.3 |
|
产品应用
|
‧Digital Video
Camera (DVC)
‧Digital Still Camera (DSC)
‧Portable Multimedia Player (PMP)
‧Mobile Phone
‧Ultra-Mobile Personal Computer (UM PC) |
|
文字介绍
|
TDA19989 is a
very low power and very small size
High-Definition Multimedia Interface
(HDMI) v. 1.3a transmitter. It is backward
compatible DVI 1.0 and can be connected to any
DVI 1.0 and HDMI sink.
It allows mixing 3 × 8-bit RGB or YCbCr video
stream with a pixel rate up to 150 MHz
together with one S/PDIF or one I2S-bus audio
streams with an audio sampling rate up to
192 kHz. |
|
|
|
|
|
|
产品规格
|
Enhancement mode Field-Effect Transistor (FET) |
|
产品特性
|
‧Logic level
threshold compatible
‧Very fast switching
‧ESD protected, typical 3 KV HBM only 2N7002CK |
|
产品应用
|
‧Power
management
‧Logic level translator
‧High-speed line driver |
|
文字介绍
|
2N7002CK:N-MOS/VDS=60V/ID=300mA / SOT23 / ±3KV
ESD
PMV65XP:P-MOS /VDS=60V/ID=300mA/ SOT23
PMGD370XN:Dual N-MOS/VDS=30V/ID=740mA /SOT363 |
|
|
|
|
【NXP -
PESD/IP series (ESD/EMI filter)】 |
|
|
|
产品规格
|
ESD protection /EMI filter Solution |
|
产品特性
|
‧Low line
capacitance
‧According to IEC61000-4-2, level 4 standard
‧Ultra small Package for SOD882 |
|
产品应用
|
I/O ports and
Key pad ESD protection/EMI filter |
|
文字介绍
|
IP4223CZ6/IP4284CZ10 forUSB2.0/3.0 ports ESD
protection Solution.
PESD-series(SOD882) :Low capacitance ESD
protection diodes in SMD plastic
packages designed to protect one data line from
ESD damage.
IP425X-series:The IP425x family consists of 4-,
6- and 8-channel RC low-pass filter arrays which
are
designed to provide filtering of undesired RF
signals on the I/O ports of portable
communication or computing devices. |
|
|
|
|
【SGMICRO - SGM803 / SGM809 / SGM810】
|
|
|
|
产品规格
|

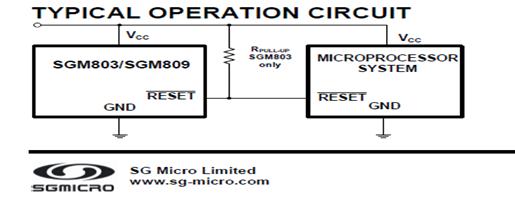

1.
They provide a reset output suring power-up ,
power-down and brownout conditions.
2. On power-up , an internal timer holds reset
asserted for 240ms.
3. The RESER output remains operational with Vcc
as low as 1V.
4.The SGM803/809 provide an active low reset
signal while the SGM810 provides an active high
signal output.
5. Seven reset threshold voltage options are
available suitable for monitoring 2.5V, 3V, 3.3V
and 5V supply voltages. |
|
产品特性
|
1. Precision
Voltage Monitor:2.5V, 3V, 3.3V, 5V
2. Superior Upgrade for MAX803/MAX809/MAX810 and
ADM803/ADM809/ADM810
3. Low power consumption(17uA TYP)
4. Reset assertion down to 1V Vcc
5. 160ms Min power-On erset
6. -40C to +125C Operating temperature range. |
|
产品应用
|
1.
Microprocessor Systems
2. Controllers
3. Intelligent instruments
4. Automotive systems
5. Safety systems
6. Portable instruments. |
|
文字介绍
|
|
| |
|
|
|
|
产品规格
|
1.

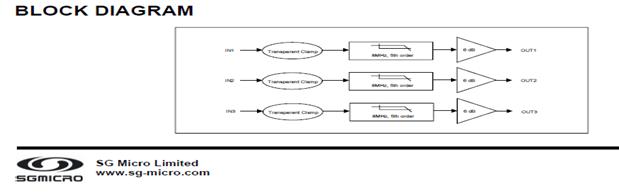

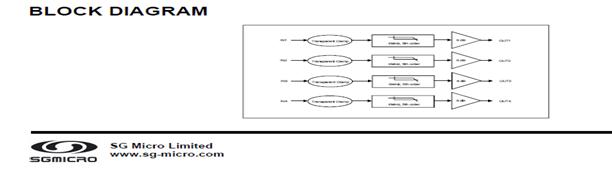

SGM9119 is a Low-Voltage, triple video amplifier
can ofer 6dB Gain rail-to- rail output driver
and 5th order output reconstruction filter on
all three channels.
2. It has 8MHz -3dB bandwidth and 31.5V/us slew
rate.
3. Operating form single power supply ranging
from 3.3V to 5.5V and sinking an 21mA quiescent
current. |
|
产品特性
|
1. Thriple 5rh
Order 8MHz (SD)filters
2. 6dB output driver gain
3. Rail-to-Rail output.
5. AC or DC coupled inputs
6. AC or DC coupled outputs.
7. Operates from 3.3V to 5.5V power supply.
8. Supply current(7mA/Channel)/ 21mA total
supply current.
9. -40C to +85C operating temperature range. |
|
产品应用
|
1. Cable and
Satelite STB
2. Video Amplifiers
3. Communications Devices
4. Portable and Handheld Products.
5. Personal video recorders.
6. Video on Demand
7. DVD players. |
|
文字介绍
|
|
| |
|
|
|
|
产品规格
|
1.
SGM9124 is a Low-Voltage, 4-Channel video
amplifier can ofer 6dB Gain rail-to- rail output
driver and 5th order output reconstruction
filter on all three channels.
2. It has 8MHz -3dB bandwidth and 35V/us slew
rate.
3. Operating form single power supply ranging
from 3.3V to 5.5V and sinking an 30mA quiescent
current. |
|
产品特性
|
1. 4-Channel
5rh Order 8MHz (SD)filters
2. 6dB output driver gain
3. Rail-to-Rail output.
5. AC or DC coupled inputs
6. AC or DC coupled outputs.
7. Operates from 3.3V to 5.5V power supply.
8. Supply current(7mA/Channel)/ 21mA total
supply current.
9. -40C to +85C operating temperature range. |
|
产品应用
|
1. Cable and
Satelite STB
2. Video Amplifiers
3. Communications Devices
4. Portable and Handheld Products.
5. Personal video recorders.
6. Video on Demand
7. DVD players. |
|
文字介绍
|
|
| |
|
|
|
|
产品规格
|
•

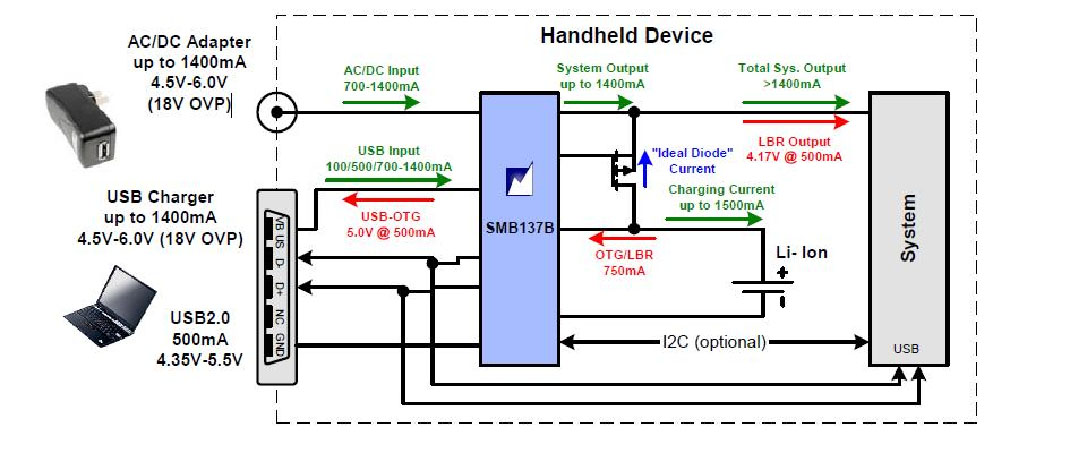

USB & AC Input with Automatic Input Selection
(SMB137B)
• CurrentPath™ for Independent System and
Battery Charging Operation
• TurboCharge™* for 50% Current Gain from
Current-limited Power Sources
• Automatic Charger Input Current Adjustment
based on Wall Adapter Current Limit *
• Automatic Power Source Detection per USB 1.0
Charging Specification
• Integrated USB On-the-Go Power Support (+5V @
500mA)
•“Low-Battery Recovery *” Mode for Instant “Dead
Battery”Power On and Extended Talk/Standby Time
• +3.5V to +6.2V Operating Input (+18V
Protection)
• 3MHz Switch-Mode Operation (Chip Inductors)
• Very low reverse leakage and shutdown current
• I2C Programmable (Volatile and Non-volatile)
• Fast/Pre-Charge/Termination Current
• Float Voltage
• Pre-Charge/Dead-battery Thresholds
• Built-in Safety – supports IEEE 1725 standard
• Input OV Protection to +18V
• Battery OV/OC Protection
• Trickle Charge for Deeply-Discharged Cells
• Watchdog and Safety Timers
• Digital Fault Monitors
• Battery Temperature Mon |
|
产品特性
|
充電控制方面整合了輸入限流
AC/USB, 定電流/定電壓模式充電, 各項截止與安全保護的機制，全部都可以藉由
I²C/SMBus
介面來存取控制，提供設計者更快捷、更便利的開發途徑。此外，獨立的Enable(EN)
接腳可提供做為暫停充電/睡眠模式之用。OTG 的功能提供Device
電源,不需要額外設計電源。內建逆電流防制迴路可有效阻擋並降低因IC
Standy-By時，來自電池的放電損耗 |
|
产品应用
|
• Mobile/Smart
Phones
• Digital Cameras/Camcorders
• Portable Media Players/Games
• Handheld GPS Terminals |
|
文字介绍
|
SMB137B具備USB/AC輸入、CurrentPath管理、快速充電模式、低電池容量恢復、AICL
及支援USB On-The-Go等功能，此元件為一可編輯開關式單顆鋰電池充電IC,
可供任何攜帶型產品應用。此方案透過USB
/AC充電器提供一個簡單及有效的充電模式。有別於以往傳統的充電設備，SMB137B的高效率電源開關模式消除了線性式方案中低充電電流及溫度的問題。除此之外，可編輯開關式的動作模式亦具備可快速充電(TurboCharge)的優點。 |
|
|
|
|
【Telechips - Arm11 system LSI】
|
|
|
|
产品规格
|
‧
ARM 1176JZF-S
‧CPU 600 MHz @ 1.25V, 720MHz @1.45V
‧32 bits Data Bus
‧16KB ITCM / DTCM / 16KB I&D Caches
‧65nm CMOS Process |
|
产品特性
|
Low power
consumption
enhanced video decoding for all files |
|
产品应用
|
PVR ,PMP,
Portable Navigation , Car AV/AVN , Jukebox |
|
文字介绍
|
The TCC8900 is
the system LSI for digital multimedia
applications which based on ARM1176JZF-S, ARM’s
proprietary RISC CPU core. It can decode and
encode various types of video and audio
standards by software and dedicated hardware
accelerators – JPEG / MPEG1 / MPEG2 /
MPEG4-SP/ASP / H.264 / VC-1 / RV and other types
of video standard and MP3 /AAC / MPEG4-AAC /
MPEG4-BSAC and other types of standard for audio |
|
|
|
|
|
|
产品规格
|
‧16M-256M SDRAM
‧64M-256M DDR1
‧256M/512M/1G DDR2
‧1M-128M SPI Flash |
|
产品特性
|
‧标准型DRAM产品，65nm制程
‧标准型SPI Flash产品，90nm制程 |
|
产品应用
|
PMP.MP3.MP4.PND… |
|
文字介绍
|
winbond
标准型DRAM and SPI Flash产品，兼容市售主流品牌,广泛应用于各平台.
Winbond
产品均获得chipset供应商之认证，用于数据之暂存功能。其具有读写高速，兼容性好，高性价比的优点
Winbond 备有齐全的市场主流规格DRAM 和串口Flash可供选择，详情请洽SACL
相关行销人员。 |
|
|
|
|
【Wolfson - WM8310 Integrated Power
Management Subsystem】 |
|
|
|
产品规格
|
Battery Charger
• Programmable single-cell lithium-ion /
lithium-polymer battery charger (1A max charge
current)
• Battery monitoring for temperature and voltage
• Autonomous backup battery charging and
switching
System Control
• I2C or SPI compatible primary control
interface
• Interrupt based feedback communication scheme
• Watchdog timer and system reset control
• Autonomous power sequencing and fault
detection
• Intelligent power path and power source
selection
• OTP memory bootstrap configuration function
Additional Features
• Auxiliary ADC for multi-function analogue
measurement
• 128-bit pseudo-random unique ID
• Secure Real-time clock with wake-up alarm
• 12 x configurable multi-function (GPIO) pins
• Comprehensive clocking scheme: low-power 32kHz
RTC crystal oscillator, Frequency Locked Loop,
GPIO clock output and 4MHz RC clock for power
management
• System LED outputs indicating power state,
battery charger or fault status
• Selectable USB current limiting up to 1.8A (in
accordance with USB Battery Charging
specification Rev 1.1)
Package Options
• 7x7mm, 169-ball BGA package, 0.5mm ball pitch |
|
产品特性
|
• Integrated
32kHz XTAL Osc
• Secure RTC for DRM
• FLL and system clocking
• OTP programmable startup/shutdown sequence and
startup voltages
• Programmable wake/sleep sequence and sleep
voltages
• Watchdog timer
• Up to Sixteen multi-functional GPIOs
• Control of external regulators |
|
产品应用
|
• Portable
Media Players
• Cellular Handsets
• Electronic Books
• Electronic Gaming Devices |
|
文字介绍
|
客制化WM8310包括了一個一次性可編程（OTP）存儲器，使得該設備可進行優化成最終用戶的系統。此外，配置的WM8310在產品開發過程中的修改可以經由使用外部EEPROM。除了大的靈活性，WM8310提供同級領先的性能與
BuckWise™DC - DC轉換技術。
BuckWise™採用谷值電流模式控制功能，使輸出電壓低於
0.8V的所有操作條件下，沒有任何性能損失。 |
|
|
|
|
【Wolfson - WM8904 Ultra Low Power Stereo
CODEC】 |
|
|
|
产品规格
|
•
4mW quiescent power consumption for DAC to
headphone playback
• 2.4mW quiescent power consumption for analogue
bypass playback
• DAC SNR 96dB typical, THD -86dB typical
• ADC SNR 91dB typical, THD -80dB typical
• Control write sequencer for pop minimised
start-up and shutdown
• Single register write for default start-up
sequence
• Integrated FLL provides all necessary clocks
- Self-clocking modes allow processor to sleep
- All standard sample rates from 8kHz to 96kHz
• Stereo digital microphone input
• 3 single ended inputs per stereo channel
• 1 fully differential mic / line input per
stereo channel
• Digital Dynamic Range Controller (compressor /
limiter)
• Digital sidetone mixing
• Ground-referenced headphone driver
• Ground-referenced line outputs
• 32-pin QFN package (4x4mm, 0.4mm pitch)
• 36-ball W-CSP package (6×6 ball grid, 0.4mm
pitch)+D5 |
|
产品特性
|
• Ultra-Low
Power
• High quality audio CODEC
• Wolfson Class W amplifier techniques
• Simpler system design
• Faster time to market
• Small footprint
• Low risk |
|
产品应用
|
• Portable
Multimedia Players
• Multimedia handsets
• Handheld Gaming
• Wireless Headsets |
|
文字介绍
|
WM8904納入了Wolfson的
W類放大器技術，智能追踪實際的音樂信號級別，並使用一種自適應的雙驅動電荷泵來優化功耗。耳機輸出也無需大型直流隔離電容器，從而產生改進的低音響應，並顯著節省
PCB空間和音頻子系統的材料清單。 |
|
|
|
|
【Wolfson - WM8912 Ultra-Low Power Stereo
DAC with HP driver】 |
|
|
|
产品规格
|
•
4mW quiescent power consumption for DAC to
headphone playback
• DAC SNR 96dB typical, THD -86dB typical
• Class W ground-referenced headphone driver
- 28mW per channel into 32Ω at <1% THD
- 30mW per channel into 16Ω at <1% THD
• Dynamic range controller
• ReTune™ Mobile parametric equalizer
• Integrated control write sequencer for pop
minimised start-up and shutdown
• Single register write for default start-up and
shutdown sequences
• On-chip FLL provides all necessary clocks
• DAC supports standard sample rates from 8kHz
to 48kHz
• 32-pin QFN package (4x4mm, 0.4mm pitch) |
|
产品特性
|
• Ultra-Low
Power
• High performance audio DAC
• Wolfson Class W amplifier techniques |
|
产品应用
|
• Portable
Multimedia Players
• Multimedia handsets
• Handheld Gaming |
|
文字介绍
|
WM8912使用了Wolfson創新的
SmartDAC™技術，獨特的低功耗DAC電容開關架構，它使DAC到耳機的功耗小於
4mW的。WM8912還納入了Wolfson的
W類放大器技術，G類的進化，其中包括一個自適應雙驅動電荷泵和直流伺服電路架構，消除了耳機輸出時所需要大的隔離直流電容器。 |
|
|
|
|
【Wolfson - WM9010 Class G Headphone
Driver】 |
|
|
|
产品规格
|
•
Hi-fi audio headphone drivers (104dB SNR - ‘A’
weighted)
• Stereo analogue audio inputs
• Ground-referenced, cap-less headphone outputs
• Integrated charge pump and oscillator circuits
• Low quiescent current
• RF noise suppression
• Pop and click suppression
• 12-pin CSP package (1.84 x 1.34 x 0.7mm) |
|
产品特性
|
• Automatic
input signal level detect for Class G mode
• 1mA quiescent power consumption |
|
产品应用
|
• Mobile
Handsets
• Portable Media Players
• LCD Televisions |
|
文字介绍
|
WM9010是一款低功耗立體聲耳機驅動器設計用於手機和便攜式媒體播放器的應用。
G類放大器技術是用來實現高功率效率，低靜態電流。
可接受1Vrms立體聲類比訊號輸入；Hi - Fi的輸出驅動器可在 32Ω負載提供高達
28mW。 |
|
|
