| 产品名称：
|
就地模制的罩盖密封件 |
|
| |
|
|
|
|
|
| 技术支持：
|
给我留言 |
|
| 在线询价：
|
询价 |
|
| 库存查询：
|
查询
|
|
| 详细资料：
|
|
|
|
| |
|
|
| |
应 用 |
| |
|
| |
我们的导电弹性体密封件一直被选来用在航空、航海和地面电子设备上，以满足高等级的屏蔽和环境密封要求。在上百种应用中，我们在由我们加工或由我们客户提供的罩盖上模制导电弹性体，做成在屏蔽效果、安装和维护方面均具有明显优点的永久性密封/罩盖组件。结合我们的耐腐蚀、镀银铝填充硅酮和氟硅酮，这些组件特别适用于军用/航空航天应用中的环境要求
|
| |
|
| |
特 点 |
| |
|
| |
1)
由优良的材料着手---
我们的耐腐蚀CHO-SEAL
1285和1298银/铝衬料提供1
GHz时候的90
dB屏蔽效果、良好的耐盐雾性(MIL-STD810)
、EMP耐久性和-55至200℃的使用温度范围
2)
设计和成本上的优点
1．
衬料体积---
与模切衬料相比，通常密封材料要少，因而在许多应用场合，降低了成本
2．
断面设计---
压缩/变位要求能够符合采用不多的紧固件，结果是改善了可维护性
3．
紧固密封件---
允许紧固件能更方便地设计在衬料以内或者在衬料的外侧，减少EMI和水分通过紧固孔泄漏进入机箱
4．
生产节约---
衬垫、盖和压缩挡板成为一体，减少了外购项目和相应的后勤与文件
5．
安装节约---
不一致的和昂贵的粘合剂粘接操作被取消了
6．
现场可靠性和可维护性---
损坏的衬垫或罩子作为单件替换件，产生误用的可能性很小。导电衬垫也不会在日常维护中被普通的非导电衬垫来替换
3)
有限元分析(FEA)最佳设计
|
| |
|
| |
重要技术参数 |
| |
|
| |
|
| |
|
| |
订货信息 |
| |
|
|
|
我们能够就地模制上表所述的任何一种CHO-SEAL导电弹性体。选择满足你应用的性能标准的材料。
如果你希望我们提供给你完整的衬垫/罩组件，连同你要求的询价单，寄机箱外形的图纸到我公司。
如果你希望我们在现有的罩上模制CHO-SEAL弹性体，请寄图纸或实际的罩样品用于评估。
注意：提供用于模制的罩盖可能要求进行工装界面的改进，而且必须是未电镀和未涂漆的，但是能够由我们按照你的要求进行表面处理。
尺寸限制：我们能够生产任何总体尺寸大于19x19mm的就地模制的衬垫/底板组件。对于平的衬料，推荐的最小衬料外形断面是1.6mm长，最小厚度是0.5mm。断面和厚度再小的产品尽管不推荐也能供应。
|
硅酮
按照ZZ-R-765
级2A和
2B
|
氟硅酮
按照MIL-R-25988
类型2、级1
|
|
牌号 |
生产号
|
牌号 |
生产号
|
|
40
50
60
70
80
|
2514
2530
2515
2527
2531
|
40
50
60
70
80
|
2524
2526
2529
2534
2535
|
|
|
|
| 产品名称： |
薄型铝制屏蔽通风板 |
|
| |
|
|
|
|
|
| 技术支持： |
给我留言 |
|
| 在线询价： |
询价 |
|
| 库存查询： |
查询
|
|
| 详细资料： |
|
|
|
| |
|
|
| |
应 用 |
| |
|
| |
TECKCELL-A(LP)是一种又薄又经济的铝制屏蔽通风板,主要用于商用领域.
|
| |
|
| |
特 点 |
| |
|
| |
◆ TECKCELL-A新型通风板由铍铜片和定向金属丝填硅橡胶构成.
◆
TECKCELL-A新型通风板由6.4mm厚蜂窝制成,宽为3.2mm
◆
TECKCELL-A新型通风板价格非常低廉.
◆
TECKCELL-A新型通风板有很好的通风性和电磁屏蔽效果.
|
| |
|
| |
重要技术参数 |
| |
|
| |
材料说明
◆ 框架:铝合金6063-T1按QQ-A-200/9.
◆ 蜂窝:铝合金根据美军标MIL-C-7438
5052 Grade B, Class2.
◆ EMI衬垫:
铍铜:55-45000
导电橡胶:固态硅胶内填蒙尔乃丝
◆ 涂层:
标准:铬转换涂层,美军标MIL-C-5541,Class
1A或3A
可选涂层:
镀锡:美军标MIL-T-10727,型1
电镀镍 :美军标 MIL-C-26074A,Class
1,Grade B
屏蔽效能
|
TECKCELL-A |
电场 |
平面波 |
|
10MHz |
1GHz |
10GHz |
|
铍铜 |
70dB |
50dB |
30dB |
|
导电橡胶 |
60dB |
40dB |
25dB |
|
| |
|
| |
订货信息 |
| |
|
| |
产品编号:
|
尺寸 |
衬垫 |
|
L(公差±0.38mm) |
C(公差±0.25mm) |
铍铜簧片 |
金属丝衬垫 |
|
59.94mm |
50.03mm |
60-40001 |
60-40011 |
|
79.76mm |
71.37mm |
60-40002 |
60-40012 |
|
91.94mm |
82.55mm |
60-40003 |
60-40013 |
|
119.13mm |
104.90mm |
60-40004 |
60-40014 |
|
| |
|
|
|
| |
|
|
|
| 产品名称：
|
Spira蜂窝波导屏蔽通风窗 |
|
| |
|
|
|
|
|
| 技术支持：
|
给我留言 |
|
| 在线询价：
|
询价 |
|
| 库存查询：
|
查询
|
|
| 详细资料：
|
|
|
|
| |
|
|
| |
应 用 |
| |
|
| |
All Spira-Cell,
Econo-Cell, and Fan Filters include our
patented “blending” process of the aluminum
honeycomb panel that provides high and
reliable levels of shielding. Our filters
also include the use of epoxy which
mechanically bonds the honeycomb panel to
the frame and the use of our patented spiral
EMI gasket, which ensures an excellent,
long-lasting EM bond between the panel and
the frame.
|
| |
|
| |
特 点 |
| |
|
| |

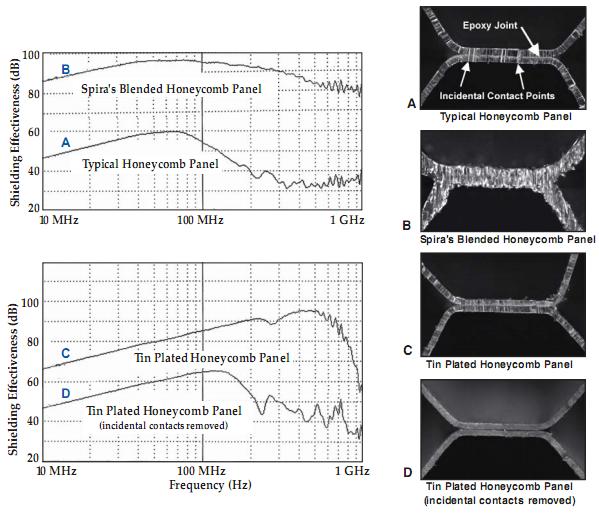

The shielding effectiveness graphs
illustrate the shielding of
1/8”
cell by
1/4”
thick honeycomb panels including: (A) the
level of shielding obtained from a typical
honeycomb panel; (B) the shielding from a
panel which has been processed using our
patented blending process; and (C,D) the
shielding obtained from tin plated honeycomb
panels, where most of the incidental contact
points across the epoxy joint were removed
from one of the panels during the
pre-plating cleaning process (D).
|
| |
|
| |
重要技术参数 |
| |
|
| |
Spira’s Shielded Fan Filters provide a high and
reliable level of
shielding
at very cost effective and competitive prices.
They include
the “Spira
Advantage” as described on page 25, using our
patented honeycomb blending process and
patented spiral Flexi-Shield gasket to provide
exceptional EMI shielding and EM bond.
Filter Size Spira’s Fan
Filters are compatible with 40, 60, 80,
92 and 120mm fans or can be made in custom sizes
on request.
Cell Size The filters use
1/8”
cell by
1/4”
or
1/2”
thick
aluminum honeycomb panels.
Frame
The frame is
made from chem-film plated 6061-T4 aluminum.
Spiral Material
The filters include
a Flexi-Shield tin/ lead plated beryllium copper
gasket in standard force. RoHS compliant version
is available on request.
Salt-Fog Option
A salt-fog version is
available on request, and includes our
Flexi-Shield edge tin/lead plated beryllium
copper gasket. The honeycomb panel and frame are
chem-film plated
(or can be tin plated on request). RoHS
compliant version is available on request.
Shielding Effectiveness
This graph
illustrates that with the “Spira Advantage” our
Fan Filters can provide up to 80dB of shielding
at 1GHz! |
| |
|
| |
订货信息 |
| |
|
|
|
|
Fan Filter
Part Number |
Fan
Size |
A
±.030 |
B
±.010 |
C
±.015 |
D
±.015 |
E
±.010 |
F
±.020 |
G
±.020 |
|
HF-40mm-25 |
40mm |
1.71 |
1.180 |
1.38 |
.150 |
.265 |
.319 |
.345 |
|
HF-40mm-50 |
40mm |
1.71 |
1.180 |
1.38 |
.150 |
.265 |
.569 |
.595 |
|
HF-60mm-25 |
60mm |
2.50 |
1.970 |
2.17 |
.170 |
.265 |
.319 |
.345 |
|
HF-60mm-50 |
60mm |
2.50 |
1.970 |
2.17 |
.170 |
.265 |
.569 |
.595 |
|
HF-80mm-25 |
80mm |
3.34 |
2.810 |
3.01 |
.170 |
.265 |
.319 |
.345 |
|
HF-80mm-50 |
80mm |
3.34 |
2.810 |
3.01 |
.170 |
.265 |
.569 |
.595 |
|
HF-92mm-25 |
92mm |
3.78 |
3.250 |
3.45 |
.170 |
.265 |
.319 |
.345 |
|
HF-92mm-50 |
92mm |
3.78 |
3.250 |
3.45 |
.170 |
.265 |
.569 |
.595 |
|
HF-120mm-25 |
120mm |
4.82 |
4.125 |
4.50 |
.170 |
.348 |
.319 |
.345 |
|
HF-120mm-50 |
120mm |
4.82 |
4.125 |
4.50 |
.170 |
.348 |
.569 |
.595 |
Custom sizes are available on
request. Contact us for more
information. |
 |
Custom sizes are available on request.
Contact us for more information.
|
|
|
|
|
| 产品名称：
|
防尘屏蔽通风板 |
|
| |
|
|
|
|
|
| 技术支持：
|
给我留言 |
|
| 在线询价：
|
询价 |
|
| 库存查询：
|
查询
|
|
| 详细资料：
|
|
|
|
| |
|
|
| |
应 用 |
| |
|
| |
TECKSCREEN通风板用来同时进行电磁干扰防护和空气过滤.常用在电子设备壳体
移动军事指挥站和屏蔽室中.
|
| |
|
| |
特 点 |
| |
|
| |
◆
TECKSCREEN通风板由三层拉制铝质金属丝夹在拉制金属里然后装配好外框构成.
◆
TECKSCREEN通风板上有一种电磁干扰衬垫,它提供优秀的屏蔽界面.
◆
TECKSCREEN通风板是具有蜂窝状结构通风板的替换品.
|
| |
|
| |
重要技术参数 |
| |
|
| |
材料说明
◆ 框架:铝合金6063-T1按QQ-A-200/9.
◆ 拉制金属网屏:铝合金3003-H14按ASTMB-209.
◆ 金属丝屏:铝合金金属丝纤维RR-W-365型号VII,18X14重丝网.
◆ 电磁屏蔽衬垫:
金属丝网:镀锡铜包铁金属丝.
弹性材料:聚氯丁海绵胶按MIL-R-6130类型II,A级,中等条件.
◆ 盲孔紧固件:钢合金,镀镉6-32UNC-2B或8-32UNC-2B.
表面处理
◆ 铬酸盐: 铬酸盐转化涂层按MIL-C-5541,1A或3A级.
|
TEKSCREEN |
磁场 |
电场 |
平面波 |
|
100KHz |
10MHz |
1GHz |
10GHz |
|
镀层铬酸盐 |
70dB |
120dB |
80dB |
60dB |
|
| |
|
| |
订货信息 |
| |
|
|
|
TECKSCREEN通风板应注明:框架型号,整体框架和开口尺寸,空气流动方向
孔洞位置和紧固体要求.
|
|
|
|
|
