Introduction |
|
The DiskOnModule is a storage device based
on flash memory technology, which emulates
an ordinary magnetic hard disk. The
DiskOnModule series products provide an all
in one module solution for solid-state flash
disk. The DiskOnModule is suitable for use
in portable and embedded systems, which have
limited space and power consumption. Unlike
standard IDE drives, no signal cable and
extra, special space are required.The DiskOnModule is s solid-state solution
for IDE Hard Disk driver, which has no
moving parts. That provides a good stability
in a moving system. The DiskOnModule into
product are also free from extra and special
algorithm or some firmware driver. Just plug
the DiskOnModule into the IDE slot and play
it, users can play DiskOnModule as same as
the Hard Disk Drivers.
The DiskOnModule family provides the
capacities ranging from 4MB up to 256MB. |
|
|
|
Specifications |
|
Temperature |
0°C to 70°C
Non-Operating -20°C 100°C above |
|
Relative Humidity |
8 % to 95% (No condensation) |
|
Vibration |
Operating 0.2G(10mins)
Non-Operating 15G |
|
Shock |
Operating 150G (2.2msec with half size)
Non-Operating 1000G |
|
Write Transfer Rate |
1.2MB/sec |
|
Read Transfer Rate |
2.5MB/sec |
|
PIO mode |
28.3MB/sec maximum |
|
MTBF(@25°C) |
300,000 hours |
|
ECC |
22 bits per 256 bytes |
|
Power Cycle |
5,000 Times minimum |
|
Voltage DC Req. |
+5.0V ¡Ó 10 % |
|
Power Consumptions |
Read 21mA
Write 28mA
Sleep 0.3mA |
|
|
|
Capacity Specifications |
|
Capacity |
No. Of Cylinders |
No. Of Sectors/track |
No. OfHeads |
Unformatted Capacity (Bytes) |
|
4MB |
250 |
16 |
2 |
4096000 |
|
8MB |
500 |
16 |
2 |
8192000 |
|
16MB |
1000 |
16 |
2 |
16384000 |
|
24MB |
750 |
16 |
4 |
24576000 |
|
32MB |
500 |
16 |
8 |
32768000 |
|
48MB |
750 |
16 |
8 |
49152000 |
|
64MB |
500 |
32 |
8 |
65536000 |
|
96MB |
750 |
32 |
8 |
98304000 |
|
128MB |
500 |
32 |
16 |
131072000 |
|
192MB |
380 |
63 |
16 |
196116480 |
|
256MB |
507 |
63 |
16 |
261660672 |
|
|
|
Ordering Information |
|
Model |
|
|
DOMxxx |
(xxx = 004 ~256MB) |
|
|
| DiskOnModule (DOM) |
 |
| |
| |
|
|
The DiskOnChip is a well-known
flash memory module comes from M-systems. With M-systems'
single-chip and TrueFFS technology, the DiskOnChip provides
the high-performance, high reliability and low cost solution
for flash disk applications with limited space.
M-Systems Flash Disk Pioneers
Ltd. develops, manufactures and markets the flash-based data
storage devices. With the cutting edge technology in the
flash disk field, M-systems offers a series of embedded
flash disk to the industrial market. For the further
information about M-systems please visit the website at |
-
|
Bootable, Driver Free and IDE-based Industrial Embedded Solid State Disk
|
-
|
Error Detection and Correction (EDC/ECC)
|
-
|
Built-in TrueFFS for Full Hard Disk Emulation
|
-
|
High Performance with IDE Mode 4 up to 16.6 Mbytes/sec of Data Transfer Bandwidth
|
|
Specification
Memory Capacity
|
16 ~ 256 MBytes
|
Mechanical Dimension (40-pin)
|
56.3 x 6.0 x 30.6 mm (L x W x H)
|
Mechanical Dimension (44-pin)
|
53.0 x 6.0 x 31.2 mm (L x W x H)
|
Package Type
|
40-/44-pin pitch 2.54/2.0 mm
|
Operating Voltage
|
5V ± 10%
|
Power Consumption
|
Active
|
55 mA (Max)
|
Sleep / Ideal Mode
|
180 µA (Max)
|
Temperature
|
Operating
|
0 ~ 70 oC
|
Storage
|
-55 ~ 80 oC
|
Humidity
|
10 ~ 95% (Non-condensation)
|
Vibration
|
Operating
|
1G / 1 axis
|
Shock
|
Non-operating
|
10G / 3 axis
|
EDC/ECC
|
For each 512-byte block of data:
- Corrects up to two 10-bit symbols, including two random bit errors.
- Corrects single bursts up to 11 bits.
- Detects single bursts up to 31 bits and double bursts up to 11 bits.
- Detects up to 4 random bit errors.
|
|
| DiskOnChip2000 (DOC) |
 |
| |
| |
|
|
Introduction |
| The
DiskOnChip is a well-known flash memory module comes from
M-systems. With M-systems' single-chip and TrueFFS technology,
the DiskOnChip provides the high-performance, high reliability
and low cost solution for flash disk applications with limited
space. |
|

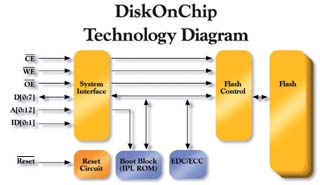

DiskOnChip Block Diagram |
 |
|
M-Systems Flash Disk Pioneers Ltd.
develops, manufactures and markets the flash-based data storage
devices. With the cutting edge technology in the flash disk
field, M-systems offers a series of embedded flash disk to the
industrial market. For the further information about M-systems
please visit the website at
http://www.m-sys.com |
|
Feature |
-
|
Bootable, Compact and Low Profile Industrial Embedded
Solid State Disk |
-
|
Error
Detection and Correction (EDC/ECC) |
-
|
EPROM
Compatible Electrical Interface |
-
|
High
Performance with 1.4 / 0.5 MBytes/sec Sustained
Read/Write |
-
|
Built-in
TrueFFS for Full Hard Disk Emulation |
-
|
8 KBytes of
Memory Window |
|
Specification
Memory Capacity (DiskOnChip2000)
|
16 ~ 576 MBytes
|
Memory Capacity (DiskOnChip2000 Millennium)
|
8 MBytes
|
Package Type
|
32-pin DIP
|
Operating Voltage
|
3.3V or 5V
|
Power Consumption
(5V)
|
Active
|
40 mA
|
Stand by (Low Profile)
|
60 µA
|
Stand by (High Profile)
|
240 µA
|
Power Consumption
(3.3V)
|
Active
|
30 mA
|
Stand by (Low Profile)
|
40 µA
|
Stand by (High Profile)
|
120 µA
|
Sustained Transfer Rate
|
Read
|
1.4 MBytes/sec
|
Write
|
0.5 MBytes/sec
|
Burst Transfer Rate
|
Read
|
5 MBytes/sec
|
Write
|
5 MBytes/sec
|
Temperature (Standard)
|
Operating
|
0 ~ 70 oC
|
Storage
|
-55 ~ 100 oC
|
Temperature (Extended)
|
Operating
|
-40 ~ 85 oC
|
Storage
|
-55 ~ 100 oC
|
Humidity
|
10 ~ 90% (Non-condensation)
|
EDC/ECC
|
For each 512-byte block of data:
- Corrects up to two 10-bit symbols, including two random bit errors.
- Corrects single bursts up to 11 bits.
- Detects single bursts up to 31 bits and double bursts up to 11 bits.
- Detects up to 4 random bit errors.
|
|
|
