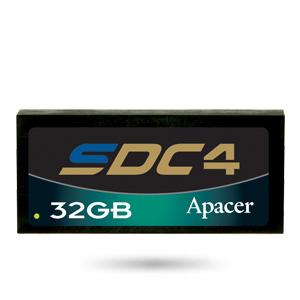

SATA Disk Chip(SLC)
规格 型号 SDC4-18 pin 接口 SATA II 3Gb/s 连接器 18
(7x2+2x2) round pin connector 外形
| USB SSD系列 | SATA SSD系列 | PATA SSD系列 | 闪存卡系列 |
| 服务器内存 | 工业台式机内存 | 工业笔记本内存 | |
| mSATA | M.2(NGFF) | SATA Disk Chip(SLC) | SATA SSD系列 |
SDC4 (32pin)
突出显示
SATA interface with 6 mm in height
DIP Form factor for superior
shock/vibration resistance
Advanced wear-leveling and Block
managemen
Built-in HW ECC, Quick Erase and SMART
Functions
Power Failure Recovery
Ideal for PC/104 stackable application
规格
型号 SDC4-32Pin
接口 SATA II 3Gb/s
连接器 32(16x2) round pin connector
外形(英寸) DIP Form Factor
NAND闪存类型 SLC
容量 2GB~32GB
持续读取能力(MB/秒) Up to 85
持续写入能力(MB/秒) Up to 80
ECC支持 Built-in hardware BCH ECC,
correcting 16- bit or 24-bit error per
512-byte data sector
扩展工作温度 ( °C ) -40~+85
存储温度 -40~+100
冲击 50G
振动 15G
湿度 5%~95%
工作电压 3.3 V
低功耗 Active mode: 360 mA;Idle mode: 120
mA
MTBF (hours) 2,000,000
Certification CE, EN55022, CISPR22, EN
55024, EN 6100 FCC, Part 15 Class B,
MLIL-STD-810F, RoHS

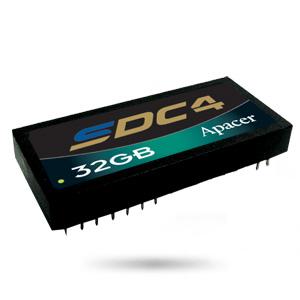

SDC4 (18pin)
突出显示
SATA interface with 6 mm in
height
DIP Form factor for superior
shock/vibration resistance
Advanced wear-leveling and Block
managemen
Built-in HW ECC, Quick Erase and SMART
Functions
Power Failure Recovery
Ideal for PC/104 stackable application
规格
型号 SDC4-18 pin
接口 SATA II 3Gb/s
连接器 18 (7x2+2x2) round pin connector
外形(英寸) DIP Form Factor
NAND闪存类型 SLC
容量 2GB~32GB
持续读取能力(MB/秒) Up to 85
持续写入能力(MB/秒) Up to 80
ECC支持 Built-in hardware BCH ECC, correcting 16- bit or 24-bit error per 512-byte data sector
扩展工作温度 ( °C ) -40~+85
存储温度 -40~+100
冲击 50G
振动 15G
湿度 5%~95%
工作电压 3.3V
低功耗 Active mode: 360 mA;Idle mode: 120 mA
MTBF (hours) 2,000,000
Certification CE, EN55022, CISPR22, EN 55024, EN 6100 FCC, Part 15 Class B, MLIL-STD-810F, RoHS
型号 SDC4-18 pin
接口 SATA II 3Gb/s
连接器 18 (7x2+2x2) round pin connector
外形(英寸) DIP Form Factor
NAND闪存类型 SLC
容量 2GB~32GB
持续读取能力(MB/秒) Up to 85
持续写入能力(MB/秒) Up to 80
ECC支持 Built-in hardware BCH ECC, correcting 16- bit or 24-bit error per 512-byte data sector
扩展工作温度 ( °C ) -40~+85
存储温度 -40~+100
冲击 50G
振动 15G
湿度 5%~95%
工作电压 3.3V
低功耗 Active mode: 360 mA;Idle mode: 120 mA
MTBF (hours) 2,000,000
Certification CE, EN55022, CISPR22, EN 55024, EN 6100 FCC, Part 15 Class B, MLIL-STD-810F, RoHS
