Adtron I25FB Flashpak®
IDE Flash Solid State Disk

OVERVIEW

• Category: Solid State Flash Disk
• Form Factor: 2.5-inch
• Host Interface: IDE UDMA-100
• Technology: Adtron ArrayPro™ performance engine and EraSure™ Data Security
• Capacity: Up to 56 GBytes
• Sustained Data Transfer Rates:
  Reads: Up to 65 MBytes/second
  Writes: Up to 60 MBytes/second

FLASH DISK DESCRIPTION

The Adtron I25FB Flashpak® solid state disk delivers high speed and durability with an industry standard ATA/ATAPI interface and UDMA-100 in a 2.5-inch form factor. Designed with Adtron ArrayPro parallel array processing technology for high performance, the Adtron I25FB flash disk performs under conditions of extended temperatures, high shock and vibration and rapid temperature gradients.

Complete with ATA/ATAPI compliance ensuring host compatibility, the Adtron I25FB Flashpak solid state disk uses Adtron SmartStorage™ architecture to deliver exceptional sustained read/write performances and capacities to meet your demanding application needs.

Adtron I25FB Flashpak flash disks are low profile, 2.5-inch flash disks that provide the same storage functions found in hard disk drives, plus the enhanced operating reliability of long-life mean time before failures (MTBF) and rugged durability. The industry standard ATA interface simplifies the integration of flash disks into almost any computing platform and operating environment.

No system modifications are required to replace an IDE hard disk drive in an existing embedded application, making it easy to upgrade computing platform reliability to all solid state performance.

For defense applications requiring data security, Adtron EraSure™ data security technology provides multiple levels of programmable declassification and access control techniques. EraSure Clear is a simple function that eliminates data on the flash disk, after which the flash disk is reusable. EraSure Sanitize follows one of several common sanitize procedures or a custom sanitize procedure may be pre-programmed. Optional Adtron EraSure access control features including, write and password protection are also available. For more information on declassification and access control techniques, contact Adtron

SOLID STATE DISK RELIABILITY

Prediction Method	MTBF*
MIL-HDBK-217F	250,000 hours
Telcordia	1,400,000 hours (ground fixed, uncontrolled)
Telcordia	2,900,000 hours (ground fixed, controlled)

^{*Tested with 1GB capacity at 30°C}

FLASH DISK FEATURES AND BENEFITS

FEATURE	BENEFIT
Proven industry standards coupled with Adtron technology	Standard ATA/ATAPI interface delivers unparalleled operating system compatibility
Adtron ArrayPro technology with full flash disk operations using 2.5-inch IDE disk drives	Parallel array processing provides unmatched flash disk performance
No system modifications required for replacements of IDE hard disks	Easily replace rotating hard disk drives with proven reliability solid state flash technology
PIO, Multiword DMA and UDMA-100 supported	Backward compatibility with industry-standard hard disk technology
Environmental Testing	Meets Mil-Std-167-1 (Vibration, dry heat and damp heat) and Mil-S-901D (High impact shock) specifications
Adtron EraSure data security technology provides declassification options	Compliant with NISPOM DoD 5220.22-M, NSA 130-2, Air Force AFSSI-5020, Army AR380-19, Navy NAVSO P-5239-26 and IRIG 106-3

FLASH DISK SPECIFICATIONS

SPECIFICATION	I25FB FLASH DISK
Hardware	Host computer with IDE interface
Software	BIOS and O/S with IDE support
Interface and connector	IDE
Data transfer rate	Sustained Read/Write Rates: Reads: Up to 65 MBytes/sec Writes: Up to 60 MBytes/sec
Capacities	512 MBytes to 56 GBytes
Power requirements	Voltage = 5V ± 5% @ 1.25A (max)
Dimensions	512 MB to 8 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 9.3mm [.368"]H 12 GB to 24 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 15.1mm [.594"]H 28 GB to 40 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 21.5mm [.846"]H 44 GB to 56 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 27.9mm [1.098"]H
Operating temperature	Commercial (C): 0 to 70°C Industrial (I): -40 to 85°C
Environmental Testing	MIL-S-910D (High Impact Shock) MIL-STD-167-1 (Vibration, Dry Heat, Damp Heat)
Standard Warranty	3 Years

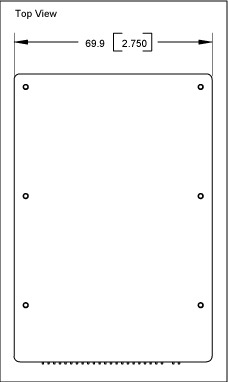

FLASH DISK DRAWINGS

Drawings are not to scale.
