Adtron A25FB-10 Flashpak®
SATA Flash Solid State Disk

OVERVIEW

• Category: Solid State Flash Disk
• Form Factor: 2.5-inch
• Host Interface: Serial ATA (SATA)
• Technology: Adtron ArrayPro™ performance engine and EraSure™ Data Security
• Capacity: Up to 56 GBytes
• Sustained Data Transfer Rates:
  Reads: Up to 65 MBytes/second
  Writes: Up to 55 MBytes/second

FLASH DISK DESCRIPTION

The A25FB Flashpak® flash solid state disk is powered by the patent-pending Adtron ArrayPro™ performance engine to deliver industry leading performances previously unachieved in a flash disk. The A25FB leverages this unique ArrayPro technology to provide true sustained performances up to 65 MBytes per second. In addition to performance, the A25FB Flashpak flash disk excels over hard disk drives (HDDs) in terms of suitability in the world's most demanding applications where reliability and durability are critical.

These 2.5-inch flash solid state disks can easily replace standard 2.5-inch HDDs, providing full HDD functionality with higher performance speeds. In addition, A25FB Flashpak flash SDDs are far superior to HDDs in terms of reliability, availability and durability making these SATA flash solid state disks ideal in environments that require ruggedness, shock resistance and environmental resilience in no-compromise applications.

To meet the unique data security requirements of defense and security applications, Adtron EraSure™ data security provides multiple levels of data elimination techniques.

EraSure Clear provides a fast data elimination function that enables erasing of data in seconds.

EraSure Sanitize uses an agency defined and unique customer defined pre-programmed sanitization procedure allowing full media declassification.

Combined with the ArrayPro performance engine, EraSure Sanitize provides unparalleled sanitization performance. In addition, optional access control features include write protection and password login for added data security.

For more information on declassification and access control techniques, contact Adtron

SOLID STATE DISK RELIABILITY

Prediction Method	MTBF*
MIL-HDBK-217F	250,000 hours
Telcordia	1,400,000 hours (ground fixed, uncontrolled)
Telcordia	2,900,000 hours (ground fixed, controlled)

^{*Tested with 1GB capacity at 30°C}

FLASH DISK FEATURES AND BENEFITS

FEATURE	BENEFIT
Proven industry standards coupled with Adtron technology	Standard Serial ATA interface delivers unparalleled operating system compatibility while Adtron flash disks replace and offer exceptional alternatives to HDD
Adtron ArrayPro performance engine in a 2.5-inch form factor	Parallel array processing provides unmatched flash disk performance
Adtron EraSure data security technology provides comprehensive declassification options	Provides the most comprehensive and fastest flash data security capabilities. Compliant with NISPOM DoD 5220.22-M, NSA 130-2, Air Force AFSSI-5020, Army AR380-19, Navy NAVSO P-5239-26 and IRIG 106-3
Serial-ATA interface combined with the Adtron Flashpak technology	Enables broad operating system capability, including Microsoft® Windows®, Linux, and Sun™ Microsystems Solaris™ operating systems
Hot Swap feature	Allows users to remove and replace the A25FB flash disk with power on, reducing planned and unplanned downtime

FLASH DISK SPECIFICATIONS

SPECIFICATION	A25FB FLASH DISK
Hardware	Host computer with Serial ATA-1.0 (SATA-Revision 1.0a) interface, 1.5 Gb/s
Software	BIOS and O/S with SATA-1.0 support
Interface and connector	Serial ATA (SATA) 7-pin signal segment, 15-pin power segment
Data transfer rate	Sustained Read/Write Rates: Reads: Up to 65 MBytes/sec Writes: Up to 55 MBytes/sec
Capacities	512 MBytes to 56 GBytes
Power requirements	Voltage = 5V @ .6A (typ) at 16GByte capacity
Dimensions	512 MB to 8 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 9.3mm [.369"]H 12 GB to 24 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 14.0mm [.551"]H 28 GB to 40 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 20.4.mm [.803"]H 44 GB to 56 GB: 69.9mm [2.75"]W x 101.6mm [4.00"]D x 26.8mm [1.055"]H
Operating temperature	Commercial (C): 0 to 70°C Industrial (I): -40 to 85°C
Standard Warranty	3 Years

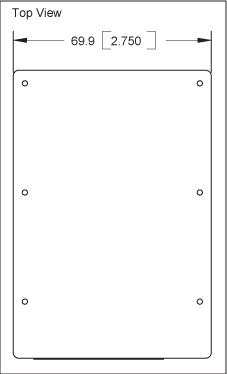

FLASH DISK DRAWINGS

Drawings are not to scale.
