高精度位移传感器 gp2y0ah01k

关注次数:43
高精度位移传感器 gp2y0ah01k
■Description
GP2Y0AH01K0F is a distance measuring sensor unit,
composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit.
The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.
This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.

■Features
1. High-accuracy type
   Distance measuring range : 4.5 to 6.0 mm
2. Analog output type
3. Package size : 27×21.2×8.5 mm
4. Consumption current : Typ. 20 mA
5. Supply voltage : 4.5 to 5.5 V
6. Resolution : 50μm
■Agency approvals/Compliance
1. Compliant with RoHS directive(2002/95/EC)
2. Content status of six substances specified in
“ Management Methods for Control of Pollution Caused by Electronic Information Products Regulation ” (popular name : China RoHS)
(Chinese : 电子信息产品污染控制管理办法)

■Applications
1. Copier
2. Multi-function equipment
3. Laser beam printer

■Block diagram


■Outline Dimensions


■Absolute Maximum Ratings


■Electro-optical Characteristics


* L : Distance to reflective object
Note 1 : Using reflective object : White paper (Made by Kodak Co., Ltd. gray cards R-27・white face, reflectance; 90%)

■Recommended operating conditions


Fig. 1 Timing chart


Fig. 2 Example of distance measuring characteristics (output)


■Notes
●Advice for the optics
• The lens of this device needs to be kept clean. There are cases that dust, water or oil and so on deteriorate
the characteristics of this device. Please consider in actual application.
• Please don’t do washing. Washing may deteriorate the characteristics of optical system and so on.
Please confirm resistance to chemicals under the actual usage since this product has not been designed against washing.
●Advice for the characteristics
• In case that an optical filter is set in front of the emitter and detector portion, the optical filter which has the most
efficient transmittance at the emitting wavelength range of LED for this product (λ = 870 ± 70nm), shall be recommended to use. Both faces of the filter should be mirror polishing. Also, as there are cases that the characteristics may not be satisfied according to the distance between the protection cover and this product or the thickness of the protection cover, please use this product after confirming the operation sufficiently in actual application.
• In case that there is an object near to emitter side of the sensor between sensor and a detecting object, please use this device after confirming sufficiently that the characteristics of this sensor do not change by the object.
• When the detector is exposed to the direct light from the sun, tungsten lamp and so on, there are cases that it can not measure the distance exactly. Please consider the design that the detector is not exposed to the direct light from such light source.
• Distance to a mirror reflector can not be sometimes measured exactly.
In case of changing the mounting angle of  this product, it may measure the distance exactly.
• In case that reflective object has boundary line which material or color etc. are excessively different, in order to decrease deviation of measuring distance, it shall be recommended to set the sensor that the direction of boundary line and the line between emitter center and detector center are in parallel.

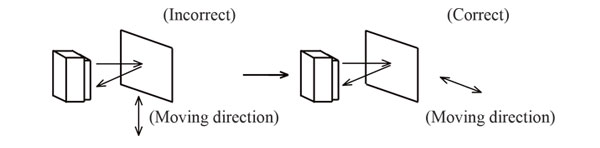

• In order to decrease deviation of measuring distance by moving direction of the reflective object, it shall be recommended to set the sensor that the moving direction of the object and the line between emitter center and detector center are vertical.



●Advice for the power supply
• In order to stabilize power supply line, we recommend to insert a by-pass capacitor of 10μF or more
between Vcc and GND near this product.

●Notes on handling
• There are some possibilities that the internal components in the sensor may be exposed to the excessive mechanical
stress. Please be careful not to cause any excessive pressure on the sensor package and also on the PCB while assembling this product.

●Presence of ODC etc.
This product shall not contain the following materials.
And they are not used in the production process for this product.
Regulation substances : CFCs, Halon, Carbon tetrachloride, 1.1.1-Trichloroethane (Methylchloroform) Specific brominated flame retardants such as the PBB and PBDE are not used in this product at all.
• The RoHS directive (2002/95/EC)
This product complies with the RoHS directive (2002/95/EC).
Object substances: lead (except for lead in glass of electronic components), mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and
polybrominated diphenyl ethers (PBDE)

• Content of six substances specified in “ Management Methods for Control of Pollution Caused by Electronic
Information Products Regulation ” (Chinese : 电子信息产品污染控制管理办法)



✓: indicates that the content of the toxic and hazardous substance in all the homogeneous materials of the part is below the concentration limit requirement as described in SJ/T 11363-2006 standard.
*  : indicates that the content of the toxic and hazardous substance in at least one homogeneous material of the part exceeds the concentration limit requirement as described in SJ/T 11363-2006 standard.

Lead in glass of electronic components (designated by “*” in the above table) are exempt from the RoHS directive (2002/95/EC), because there is no effective way to eliminate or substitute them by present scientific technology.

■Package specification


■Important Notices

· The circuit application examples in this publication are provided  to  explain  representative  applications  of SHARP devices and are not intended to guarantee any circuit design  or  license  any  intellectual  property  rights.  S HARP takes no responsibility for any problems related to any intellectual property right of a third party resulting from the use of SHARP's devices.

· Contact SHARP in order to obtain the latest device specifi- cation  sheets  before  using  any  SHARP  device.  S H A R P reserves the right to make changes in the specifications, characteristics, data, materials, structure, and other contents described herein at any time without notice in order to improve design or reliability. Manufacturing locations are also subject to change without notice.

· Observe the following points when using any devices in this publication. SHARP takes no responsibility for damage caused by improper use of the devices which does not meet the conditions and absolute maximum ratings to be used specified in the relevant specification sheet nor meet the following condi- tions:
(i) The devices in this publication are designed for use in general electronic equipment designs such as:
--- Personal computers
--- Office automation equipment
--- Telecommunication equipment [terminal]
--- Test and measurement equipment
--- Industrial control
--- Audio visual equipment
--- Consumer electronics
(ii) Measures such as fail-safe function and redundant design should be taken to ensure reliability and safety when SHARP devices are used for or in connection
with equipment that requires higher reliability such as:
--- Transportation control and safety equipment (i.e., aircraft, trains, automobiles, etc.)
--- Traffic signals
--- Gas leakage sensor breakers
--- Alarm equipment
--- Various safety devices, etc.
(iii) SHARP devices shall not be used for or in connection with equipment that requires an extremely high level of reliability and safety such as:
--- Space applications
--- Telecommunication equipment [trunk lines]
--- Nuclear power control equipment
--- Medical and other life support equipment (e.g., scuba).

· If the SHARP devices listed in this publication fall within the scope of strategic products described in the Foreign Exchange and Foreign Trade Law of Japan, it is necessary to obtain approval to export such SHARP devices.

· This publication is the proprietary product of SHARP and is copyrighted, with all rights reserved. Under the c o p y - right laws, no part of this publication may be r e p r o - duced or transmitted in any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of SHARP. Express written permission is also required before any use of this publication may be made by a third party.

· Contact and consult with a SHARP representative if t h e r e are any questions about the contents of this publication.
