适配器转换
商运达实业是专业化的电子组件供应商，长期致力于美国、日本、欧盟等集成电路在中国的推广及应用。具有十几年集成电路的销售经验，是MAX、AD、MOTO、IR、M/A-COM、NS、XILINX、INTERPOINT、LATTICE、CYPRESS、ST、ALTERA、TI、LT、VICOR、AA、GAIA、COSEL等电子厂商在中国的特约经销商及代理商，在电子行业享有很高的声誉。并且我公司在美国有公司，自行代理及经营美国各大IC品牌。有能力接受军品级,工业品级，较偏门、冷门之高科技元器件的订单。我公司在北京、美国、台湾备有大量现货，以薄利多销为经营理念，竭诚为广大用户提供服务。公司是一家技朮型资深电子元器件贸易公司，由一批工作在中国尖端科技战线上的高级技朮人员共同创建而成。公司主要经营各类电子元器件，包括SMD组件，IC，微波射频，二、三极管等。并提供技朮支持和产品配套服务。理念：“科技在先，贸易而后”
公司的独到之处在于强调“科技在先，贸易而后”的理念。不停留于“以钱易货”的简单经营模式，而是派出专业人员对国际上最先进的科技动态进
行跟踪研究，掌握各类元器件的第一手技朮数据，为我们的客户提供最完善的技朮支持。公司还拥有一批技朮精英，进行产品的开发和配套，他们一直与国内诸多高科技单位，院校保持着密切的商业往来，并向他们提供全方位的技朮支持。宗旨：“质量第一，信誉至上”
公司的经营宗旨是“质量第一，信誉至上”。公司十分注重公司形象与商业信誉，设有严格的品管机制，对进货渠道严格把关，以确保将高质量的商品提供给我们的客户。开拓，进取
抱着这样的理念与宗旨，以及公司全体员工不懈的努力，公司的规模得到了不断地发展，现已在深圳、北京、上海、南京等地设立了多家分公司，业务已经拓展到世界许多国家和地区。公司愿与国内外所有新老客户建立良好的商业友谊。在科技日新月异的今天，愿我们能成为您的得力助手，令您的产品、您的市场更具竞争力。
*Coaxial
adapter
|
Model tpye
|
Description
|
Freq.(GHz)
|
VSWR
|
|
In Series Adapters
|
|
5032/5033/5031
|
BNC adapter,
F/F, M/M, and M/F
|
DC-8
|
1.25:1Max
|
|
5043/5044/5045
|
SMA adapter,
F/F, M/M, and M/F
|
DC-18
|
1.15:1Max
|
|
5163/5164/5165
|
SMA adapter,
F/F, M/M, and M/F
|
DC-26.5
|
1.20:1Max
|
|
5103/5104/5105 |
N adapter,
F/F, M/M, and M/F |
DC-18
|
1.12:1Max
|
|
5041/5042/5040 |
TNC adapter
,F/F, M/M, and M/F |
DC-18
|
1.20:1Max
|
|
5086/5085/5084 |
3.5mm adapter
,F/F, M/M, and M/F
|
DC-34
|
1.25:1Max
|
|
5170/5171/5172 |
2.9mm(K)
adapter, F/F, M/M, and M/F
|
DC-40
|
1.30:1Max
|
|
5148/5149/5150 |
2.4mm
adapter, F/F, M/M, and M/F
|
DC-50
|
1.30:1Max
|
|
5173/5174/5175 |
1.85mm(K)
adapter, F/F, M/M, and M/F
|
DC-65
|
1.40:1Max
|
|
Between Series Adapters
|
|
5106/5107/5108/5109 |
SMA-M/N-M(F),SMA-F/N-M(F)
|
DC-18
|
1.12:1Max
|
|
5015/5016/5017/5018 |
SMA-M/TNC-M(F),SMA-F/TNC-M(F)
|
DC-18
|
1.25:1Max
|
|
5246/5247/5248/5249 |
SMA-M/3.5mm-M(F),SMA-F/3.5mm-M(F)
|
DC-18
|
1.25:1Max
|
|
5250/5251/5252/5253 |
SMA-M/1.85mm-M(F),SMA-F/1.85mm-M(F)
|
DC-18
|
1.30:1Max
|
|
5126/5128/5127/5129 |
TNC-M/N-M(F),
TNC-F/N-M(F) |
DC-18
|
1.25:1Max
|
|
5144/5145/5146/5147 |
N-M/3.5mm-M(F), N-F/3.5mm-M(F)
|
DC-18
|
1.12:1Max
|
|
5166/5168/5169/5167 |
N-M/2.9mm-M(F), N-F/2.9mm-M(F)
|
DC-18
|
1.15:1Max
|
|
5157/5158/5155/5156 |
N-M/2.4mm-M(F), N-F/2.4mm-M(F)
|
DC-18
|
1.15:1Max
|
|
5242/5244/5243/5245 |
N-M/1.85mm-M(F), N-F/1.85mm-M(F)
|
DC-18
|
1.25:1Max
|
|
5080/5082/5081/5083 |
2.4mm-M/SMA-M(F),2.4mm-F/SMA-M(F)
|
DC-26.5
|
1.20:1Max
|
|
5065/5066/5067/5068 |
2.4mm-M/3.5mm-M(F),2.4mm-F/3.5mm-M(F)
|
DC-34
|
1.25:1Max
|
|
5154/5153/5152/5151 |
2.4mm-M/2.9mm-M(F),2.4mm-F/2.9mm-M(F)
|
DC-40
|
1.30:1Max
|
|
5075/5076/5077/5078 |
2.4mm-M/1.85mm-M(F),2.4mm-F/1.85mm-M(F)
|
DC-50
|
1.35:1Max
|
|
5262/5263/5264/5265 |
2.9mm-M/SMA-M(F),2.9mm-F/SMA-M(F)
|
DC-18
|
1.30:1Max
|
|
5258/5259/5260/5261 |
2.9mm-M/1.85mm-M(F),2.9mm-F/1.85mm-M(F)
|
DC-40
|
1.40:1Max
|
|
|
|
|
|
|
*Other
Adapters
in series and between series are also available upon request only.
*Coaxial connectors frequency
range from DC-65GHz are available.
Waveguide to Coaxial
Adapter
|
Model tpye
|
Description
|
Freq.(GHz)
|
VSWR
|
IL(dB)
|
|
WCA-wr-m-cnt-pf
|
waveguide sizes WR22 thru WR975.
|
0.75-50.0
|
1.04 to 1.20 :1
|
0.2Max |
|

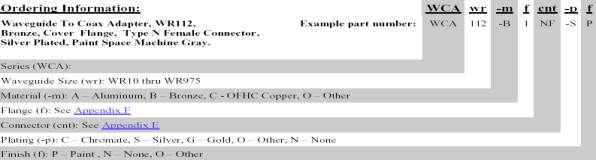

Rectangular
Waveguide To Coax Adapters
* Additional
sizes,configurations Specification available upon
request.
|
|
DCA-wr-m-f-cnt-pf
|
WRD180 thru WRD420
|
0.5-40.0 |
1.06 to 1.35 :1 |
0.35Max.
|
|

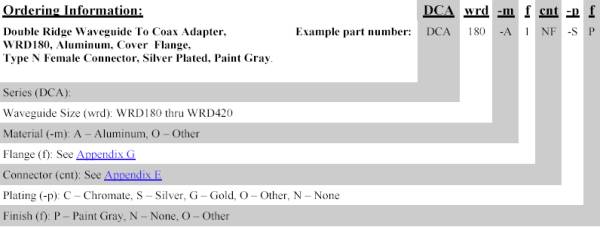

Double Ridge Waveguide To Coax Adapters
*
Additional sizes and configurations available upon
request.
|
Waveguide to
Waveguide Transitions
|
Model tpye
|
Freq.(GHz)
|
VSWR
|
|
WWT-wr1-f1-wr2-f2-m-l-p-f |
Up to 110
|
1.05:1 typ.
|
|

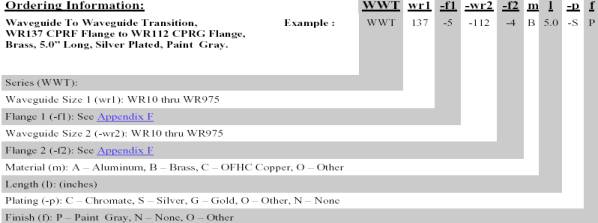

Rectangular To Rectangular Waveguide Transitions
|
|
Model
tpye |
Freq.(GHz)
|
VSWR
|
|

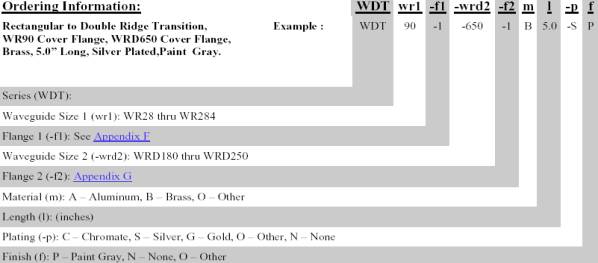

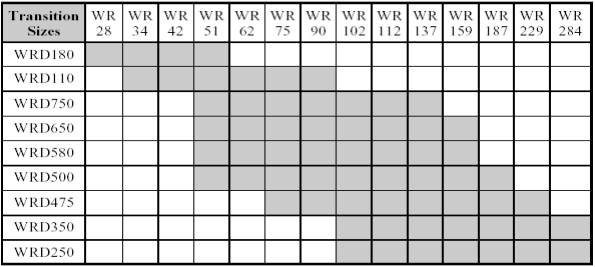

Rectangular To Double Ridge Waveguide Transitions
|
|

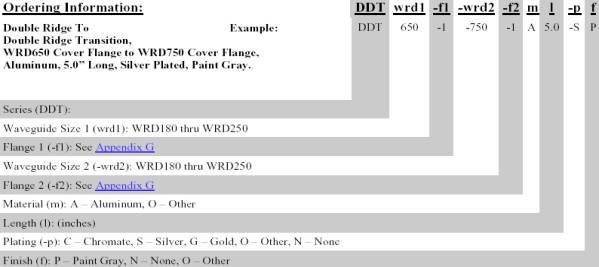

Double Ridge To Double Ridge Waveguide Transitions
|
|
QUAD-RIDGE TO DOUBLE-RIDGE TRANSITIONS
Q650-WRD650
7.5-18GHz,1.06:1 VSWR Max, 0.2dB IL
Q250-WRD250
2.5-7.5GHz,1.06:1 VSWR Max,0.2dB IL
*
Other
lengths,bands and types
available
upon request.
|
|
