| Order No. |
Description |
|
| |
|
|
| |
Transient recorder modules: |
|
| TR 20-16bit |
Transient recorder, 16 Bit-20 Ms/s A/D and 250 MHz photon counting
acquisition, up to 3278 µs signal length. (Available from December 2010) |
|
| TR 40-12bit |
Transient recorder, 12 bit-40 MHz A/D and 250 MHz photon counting
acquisition, up to 0.4 ms signal length. |
|
| TR 20-12bit |
Transient recorder, 12 bit-20 MHz A/D and 250 MHz photon counting
acquisition, up to 0.8 ms signal length. |
|
| TR 20-12bit-AP |
Transient recorder with 2 separate inputs for 12 bit-20 MHz A/D and
250 MHz photon counting acquisition, allows simultaneous use of 2
detectors. |
|
| PR 20-160-P |
Photon Counting system, 250 MHz max. photon count rate, signal
trace: 819 μs - 122km, two channels fit into one cassette. |
|
| PR10-160-P |
Photon Counting system, 250 MHz max. photon count rate, signal
trace: 1 838 μs - 244km, two channels fit into one cassette. |
|
| |
Options and Accessories: |
|
| Trig-Las |
Optical trigger module for passive Q-switched laser |
|
| Cab-2 |
Data cable transient rack to interface card, shielded connectors
with brackets, length 2 m. |
|
| |
|
|
| |
Rack and power supplies: |
|
| Rack-1 |
Housing and power supply for single transient recorder. +5.4 V, -5
V, linear power supplies, data interface, AC 230 V-50 Hz / 110V-60 Hz
input. |
|
| Rack-2 |
Housing and power supply for 2 transient recorders. AC 230 V-50 Hz /
110V-60 Hz input. |
|
| Rack-6 |
Housing and power supply for up to 6 transient recorders. AC
230 V-50 Hz / 110V-60 Hz input. |
|
| PMT-Rack3 |
Rack for up to 3 pmt modules |
|
| PMT-Rack8 |
Rack for up to 8 pmt modules |
|
| |
|
|
| |
Ethernet Remote Control |
|
|
Ethernet-IO |
Ethermet interface module option for transient recorder rack.
Control and readout of up to 16 transient recorders |
|
| PM-Remote-8
|
Ethernet interface for remote control of up to 8 photomultipliers.
Remote high voltage setting and high voltage monitor. incl. LabView
routines. Mounted in 3 HU cassette. |
|
| PM-Remote-4
|
Ethernet interface for remote control of up to 4 photomultipliers.
Remote high voltage setting and high voltage monitor. incl. LabView
routines. Mounted in 3 HU cassette. |
|
| APD-Remote-4
|
Ethernet interface for remote control of up to 4 APD modules. Remote
high voltage setting and TEC on/off control. incl. LabView routines.
Mounted in 3 HU cassette. |
|
| Trigger
generator |
Ethernet interface for active laser flashlamp, Q-switch, Gating and
transient recorder control. Variable repetition rate and pretrigger
delay. Incl. LabView routines. Mounted in 3 HU cassette. |
|
| Laser Monitor |
Ethernet laser monitor. Continous acquisition of laser pulse energy
measured by laser power meter (not. incl.) or photodiode (included).
|
|
| |
|
|
| |
Detectors: |
|
| |
Photomultiplier modules based on Hamamatsu mini PMT's, HV supply,
stabilized dynodes, overcurrent protection, cables. |
|
| PM-HV-06 |
160-650nm Bialkali |
|
| PM-HV-03 |
185-650nm Bialkali |
|
| PM-HV-02 |
300-880nm Multialkali |
|
| PM-HV-20 |
300-900nm Multialkali |
|
| PM-HV-R9880-110 |
230-700nm Super Bialkali |
|
| PM-HV-R9880-210 |
230-700nm Ultra Bialkali |
|
| PM-HV-R9880-20 |
230-920nm Multialkali |
|
| gating |
optional gating circuit for the PMT modules shown above. The gated
PMT version can only be used in gated mode, max. gate ON time = 1ms |
|
| Boresite |
4-quadrant boresite alignment system, detector, photon counter,
Ethernet interface |
|

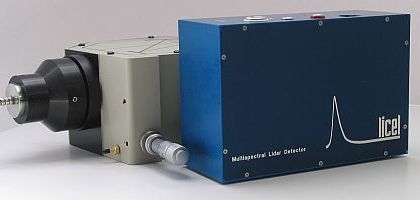

| SP32-xx |
32-channel Multi-Anode PMT single photon counting system, high
voltage supply, Ethernet interface, max. count rate 100MHz |
|
| xx = 03 |
Bialkali photocathode 185-650nm |
|
| xx = 20 |
Multialkali photocathode 300-880nm |
|
| xx = 200 |
Ultra Bialkali (UBA) photocathode 300-650nm |
|
| Sp32-Power |
External Power for Multispectral Lidar detector |
|
| Fiber |
Fiber Bundel for Multispectral Lidar detector |
|
| |
| |
NIR (1064nm) enhanced Si-APDs for analog detection: |
|

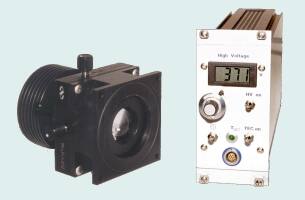

| APD-0.8 |
Silicon APD detector module detector size 0.8 mm (dia.),
responsitivity at 1060 nm typ. 34 A/W, peltier cooled, integrated
preamplifier, 50 Ω output, integrated temperature control, HV supply
(0...400V) and power supply. |
|
| APD-1.0 |
Silicon APD detector module detector size 1.0 mm (dia.), features as
shown above. |
|
| APD-3.0 |
Silicon APD detector module detector size 3.0 mm (dia.), features as
shown above. |
|
| |
Standard Si sensitivity APDs for analog or p.c. detection: |
|
| APD-C30902 |
Silicon APD detector module detector size 0.5 mm (dia.), not
infrared enhanced, lower dark count rate |
|
| |
InGaAs APD module for eyesafe lidar |
|
| APD-InGaAs |
InGaAs APD detector module, 0.2mm dia., sens. 1100-1700 nm, air
cooled, incl. AC/DC power supply, HV supply, focussing and alignment
optics |
|
| |
|
|
| |
Polarization measurements: |
|

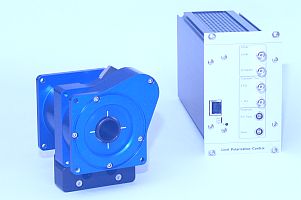

| Polarotor |
Rotating polarizing beamsplitter for alternating measurements of
parallel and perpendicular polarized signals up to 50Hz laser rep. rate.
Ethernet interface. |
|
| |
|
|
| |
Software: |
|
| Basic |
Drivers for LabView routines (source code) to perform data
acquisitions, display signals, combine analog and photon counting
signals, analyze photon counting pulse height distribution. Additional
low level C-routines (NI-DAQ based) for integration into existing
software. |
|
| File |
Customized file format and naming convention according to local
standards. |
|
| Develop |
LabView drivers for off-line software development, simulating
hardware behaviour of transient recorders and lidar systems. |
|
