Concerning to sensor circuits we’ve developed a variety of capacitance-voltage-converter on our own, which are especially used in our inclination sensors. This is why our ICs are particularly suitable for analyzing test signals of capacitive sensors. Therefore, they can be used easily in any cases where finest capacitance variations have to be detected and where they have to be transformed into a proportional analogue voltage variation. You can find details to our CU-converters at the particular sites to the corresponding series.

Circuits

CU-Converter ASIC GC-HT133

Product details

CU-Converter ASIC GC-CVC1.1

Product details

CU-Wandler ASIC GC-CVC2.1

Product details

We are even able to measure several physical values with only one individual sensor. For this reason we developed our combined sensors. The particularly sturdy housing of these comes into effect as well as at our other sensors. Therefore, they are predestinated for industrial application.

However, our own requirement to our products goes one step further:
We claim highest quality. Just because of this reason we are able to offer sensors which are characterized by their pinpoint accuracy. At the moment we provide a combination of rotary rate and inclination sensors to you, but we also want you to give us possible special solutions and/or other combinations in order that we will adapt them on demand immediately.

Results 1 - 1 of 1

Combined Sensors

Gyro and Inclination Sensor IS1A45G015P58

Product details

Encoder Circuits

GC-NIP | Nonius-Interpolator with Interpolation rate up to 8192

Product details

GC-IP2000 | Interpolation rate up to 2048

Product details

GC-IP1000B | Interpolationrate up to 1000

Product details

GC-IP201/IP201B | Interpolationrate 20 up to 256

Product details

GC-IP200 | Interpolationrate up to 200

Product details

GC-AIP40 | Interpolationrate 4 up to 40

Product details

Devices and Appliances

You as our customer should take the advantage of our interpolation units that they can be toggled straight between the measuring and the processing system. Those systems are based on our interpolation circuits from series GC-IP. You may also receive housing with higher degree of protection for our stand-alone appliances on request.

The PC cards which had been developed by our staff are designed as discrete modules to acquire and handle measured data for incremental analogue and digital signals. Furthermore there’s the opportunity for you to link measuring sensors. The cards are available as two- and three-channeled (digital) and four-channeled (digital and analogue) systems respectively. Each of those channels is indeed independently of the others configurable.

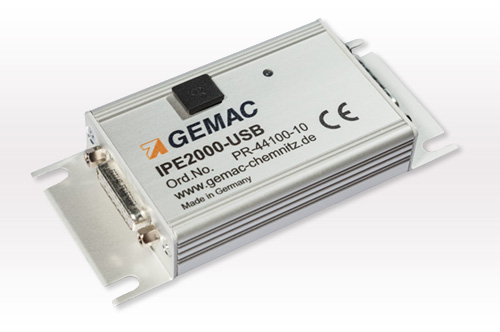

Stand-alone Appliances

Our interpolation units from series IPE can be conducted at lots of different encoder systems even if they are working with varying measuring principles.

All of our appliances have i.a. the following qualities:

opportunity to link path or angle measuring systems with sine-shaped output signals
availability of different designs for potential or power signals
patented internal gain and offset control
high dynamic and low signal transit time
reference point processing
sensor error detection

Product	Interpolation rate	Output signal	Other
IPE-16000-USB	up to 16000	SPI, RS422	Configuration by USB possible, status-LED
IPE-2000-USB	up to 2048	SPI, RS422	Configuration by USB possible, status-LED
IPE-201	up to 256	ABZ, SPI, SSI, BiSS	Configuration by USB possible, status-LED
IPE-40	up to 40	RS422

PC Cards

Our PC cards are available in two different versions:

MVSPCIe has a GC-IP2000 as an interpolator in each arbor
ZKPCI09 is a pure counter card which is able to process square-qave signals

Manuals and Information Sheets:

Linecard & Selection Guide: Download

Stand-alone Appliances:

Manual IPE-16000-USB Download
Manual IPE-2000-USB Download
Manual IPE-201 Download
Manual IPE-40 Download

PC-Cards:

Information Sheet Interpolation and Counter Card MVSXMC Download
Information Sheet Interpolation and Counter Card MVSPCIe Download
Manual MVSPCIe Download
Manual ZKPCI09 Download

Software:

Software IPE-16000-USB Download
Software IPE-2000-USB Download
Software IPE-201 Download
Software MVSPCIe Download
Software ZKPCI09 Download

Special Solutions and Accessories

On your demand we integrate interpolation algorithm as well as interpolation ICs into your appliances. That’s why you achieve a higher level of functionality of your appliances and at the same time you get our warranty for workflows going off without a hitch. Moreover the compatibility will increase, too.

NEW:

USB to SPI Converter

The „USB to SPI Converter“ unit is used as a stand alone USB interface and power supply for any SPI device such as microcontrollers, sensors or integrated circuits. It is also suitable for interfacing GEMAC mbH integrated circuits, demoboards and user boards. With the USB to SPI Converter software tools it is also possible to apply a stabilized 5.0 volt or 3.3 Volt power supply voltage to the interface and drive SPI device up to 400mA directly from USB port.

Downloads

Information Sheet Download
Manual Download
Library Download
Driver Download

电流型倾角传感器

单双轴倾角传感器

高分辨率、高精度

铝制外壳，安装简便

适合工业等不同场合的应用德国GEMAC倾角传感器适用于起重机、旋挖钻机、高空作业车等重工行业，船舶、太阳能等领域

IS2A10/45P18 ，IS1A10/45/60P18 （可选）

性能参数
测量范围	单轴±10° (IS1A 10 P18)	单轴±45° (IS1A 45 P18)	单轴±60° (IS1A 60 P18)	双轴±10° (IS2A 10 P18)	双轴±45° (IS2A 45 P18)	双轴±60° (IS2A 60 P18)
分辨率	0.05°
校准精度	±0.5（25℃)
线性度	±0.4°
温度系数	±0.009°/K
关断频率	18Hz（典型）
工作温度	-40 ~+80 ℃
接口类型	电流型输出4~20mA
工作电压	15~30V DC
耗电量	<25mA
接插件	5 针（M12 ）
防护等级	IP65/67
抗冲击	最大3,500g
外形尺寸	58×90×31mm
重量	约200 克
