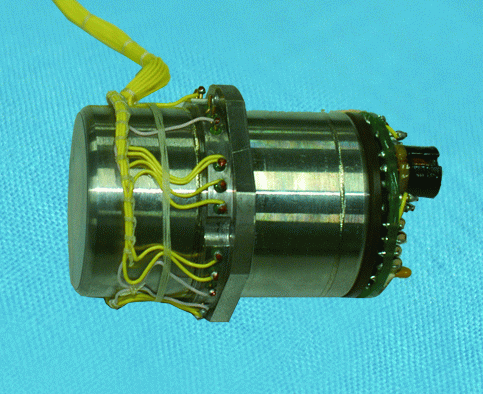

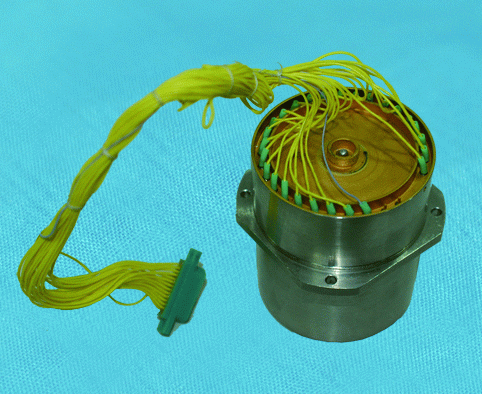

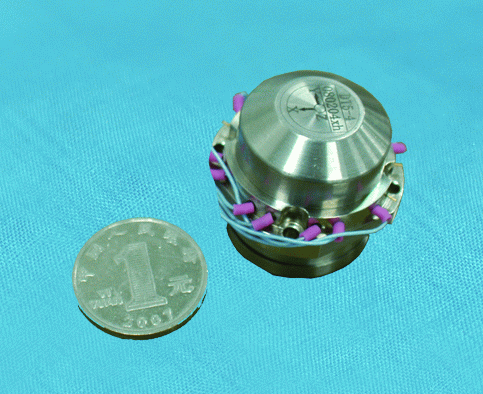

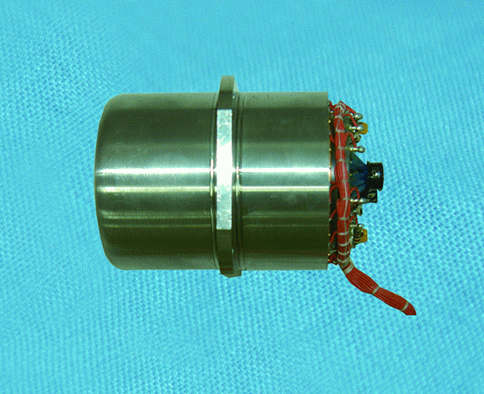

F-98 Impulse Fiber Optic Gyroscopes
Description:
The fiber optic gyro F98 Impulse Fiber is the rotation angular velocity of the volume and weight of the world's smallest fiberoptic gyroscope,
gyroscope direct measurement of the object, output and angular velocity is proportional to the analog voltage signal, easy to use.
Performance parameter:
Item |
Technical Index |
Remark |
Operating temperature |
-40℃~+60℃ |
|
Dynamic Range |
±170º/s |
|
Power Consumption |
3W |
|
Null Bias |
±0.5°/h |
|
Null bias temperature |
±3°/h |
-40℃~+60℃ |
Bias Stability |
≤0.07º/h |
Temperature |
Bias Repeatability |
≤0.07º/h |
|
Scale Factor/nonlinearity |
≤50ppm |
0.1 º/s as standard。 |
Ripple |
30mV |
|
Weight |
450±10g |
|
