产品特点

美蓓亚压力传感器有SOS式和金属箔应变片式两种。
SOS式是使用蓝宝石上硅技术及应变片，将压力作为电信号进行测量的高精度、长期稳定型压力传感器。可根据不同的测量目的连接各种不同的测量仪器，对压力进行显示、记录、控制和监视。
蓝宝石上硅(SOS)技术是指在蓝宝石（Al₂O₃单晶）衬底上生长硅薄膜的结晶（外延生长），加工成硅半导体而形成应变片的技术。 硅半导体应变片和蓝宝石衬底（压力传感器隔膜）之间的接合为原子级别，因此可获得优异的稳定性。

• 高精度
  蓝宝石作为隔膜材料属于氧化铝单晶，响应性高，直线性和磁滞特性极其优异。
• 高可靠性
  硅半导体和蓝宝石衬底之间的接合为原子级别，因此具有极其稳定的特性和高可靠性。负压侧的负载特性与正压侧可保持相同水平，因此可测量高精度的复合压。
• 高耐热性
  SOS技术中的蓝宝石衬底本身即为高绝缘体，即使在350℃的高温环境下也可用作传感器。
• 氢气适应性
  蓝宝石的氢气适应性优异，解决了透射和脆化问题。

产品用途

• 建筑机械的液压管理
• 在狭窄管道内进行的压力测量
• 空调制冷剂的压力监视
• 气体填充容器的品质管理
• 可根据不同用途提供各种尺寸、形状和规格精度，可用作嵌入设备用传感器。

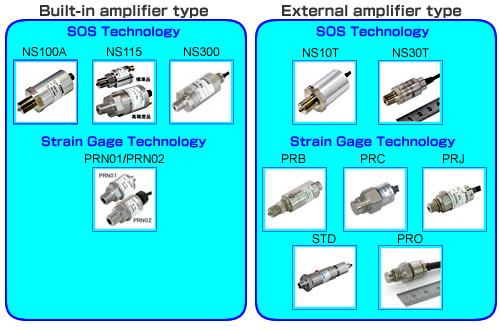

《主体型号》

• SOS内置放大器型压力变送器：
  NS100A；NS115P；NS115
• SOS压力传感器：
  NS10T、NS30T
• 应变片式内置放大器型压力变送器：
  PRN01、PRN02、PRN03
• 应变片式压力传感器：
  PRB、PRC、PRJ、STD

  Using strain gage, these pressure transducers are sensors that measure pressure as electric signals. Minebea manufactures high-precision pressure transducers that apply Silicon On Sapphire technology; and prolonged stability-type pressure transducers that use strain gages. Connected to various measuring devices for measurement purposes, these devices perform displaying, recording, controlling, monitoring the pressure, etc.

  SOS type pressure transmitter

  Introduction of SOS type pressure sensor - Direct Pressure-Type Sensors with Silicon On Sapphire (SOS) Technology - The pressure transducers have a silicon thin film (epitaxial growth) formed on a sapphire (Al2O3 single crystal) board. Using this silicon thin film, silicon semiconductor strain gages have their electrical resistance wires themselves connected to a sapphire board, consisting of an ideal sensor that is extremely stabilized physically and electrically. Approximately 60 units are used in each H-IIA rocket. High-accuracy, negative / absolute pressure use NS100A series Accuracy 0.2 %R.O., Possible to measure the compound pressure and absolute pressure accurately. Comformed to CE standard (only for voltage output) Rated capacity : 200 kPa~50 MPa High-accuracy with long term stability NS115P / NS115 series Accuracy 0.1%R.O., Excellent in a long term stability, solidity and a surge pressure measurement. Zero point adjustment is available. Rated capacity : 500 kPa~10 MPa(NS115P / High-accuracy type), 5 MPa~50 MPa (NS115 / Standard type) Compact size & High-accuracy type NS300 series Compact size (φ22 x 1.62 mm)and light weight (100 g). Drain cock is equipped with, by which the air in pressure medium can be pulling out. Rated capacity : 1 MPa ~ 10 MPa

  Strain Gage type pressure transmitter

  High endurance type PRN01 / PRN02 series Total aAccuracy : ±1.0 %F.S., ASIC amplifier is mounted, High performance type with excellent feature in temperature effect and a noise. Rated capacity : 5 MPa~100 MPa

  SOS type pressure transducer

  High temperature type for compound pressure measurement NS10T series Accuracy 0.2 %R.O., Possible to measure the compound pressure with high-accuracy and high responce. Natural frequency : 72 kHz~1 278 kHz Rated capacity : 200 kPa~50 MPa (NS10T), 200 kPa~10 MPa (NS10T-H) High temperature type for compound pressure measurement NS30T series Small size and light weight pressure transmitter with accuracy 0.2 %R.O., Possible to measure the compound pressure with high-accuracy and high response. Natural frequency : 72 kHz~566 kHz Rated capacity : 200 kPa~10 MPa

  Strain Gage type pressure transducer

  High reliability standard type PRB series Small size and light weight. Easy to attach and remove. Plentiful product line with wide pressure range. Rated capacity : 1 MPa~100 MPa Small and high responce type PRC series Flash diaphragm method high response type. small size, light weight, easy to attach and remove. Rated capacity : 1 MPa~100 MPa Small type for high / low temperature measurement PRJ series For high temperature (150 ℃) to low temperature (-40℃), small size and light weight, easy to attach and remove. Rated capacity : 1 MPa~10 MPa High pressure type STD series For high pressure range, The pressure receiving diaphragm is an integration structure with screw Rated capacity : 200 MPa ~ 500 MPa Flash diaphragm type PRO series Compact and light weight type. Screw M10 x P1.0 High response, Rated capacity : 2 MPa ~ 20 MPa NS100A series 　 　 ・ 　 Highly accurate pressure transmitter 0.2%R.O. as a standard by SOS technology. （including Non-linearity, Hysteresis and Repeatability.) 0.1 %R.O. is also available as a high accurate type. ・ 　 High reliability and durability by SOS technology. ・ 　 Can correspond to the absolute pressure and compound pressure ・ 　 Small size and light weight ・ 　 Wide range pressure from 200kPa to 50MPa can be measure. Rated capacity 200 kPa ~ 50 MPa Safe overload 200 %R.C. Ultimate overload 300 %R.C. Accuracy 0.2 %R.O. (including non-linearity, hysteresis and repeatability) Rated output Current : 4 mA ~ 20 mA (2 wires method, Load resistance 500 ohm or less, at 24 V) Voltage : 0 V ~ 10 V (Load resistance 5 k-ohm or more) Response frequency 1 kHz Power supply voltage DC 24 V(18 V ~ 28 V) Power consumption Approx. 20 mA Insulation resistance 1 000 MΩ or more (DC 50 V) Temp. range, compensated -20 ℃ ~ 70 ℃ Temp. range, safe -30 ℃ ~ 80 ℃ Temp. effect on zero 0.2 %R.O./10 ℃ Temp. effect on output 0.2 %LOAD/10 ℃ Cable φ4.7, 2 m shielded cable directly attached, Cable end separated (Cable attached type) Connector R03-RB5F(receptacle) Class of protection IP44 or equivalent Material of pressure hole Stainless steel Material of cover Alluminium alloy (with almite processing) Material of pressure diaphragm Single crystal sapphire, etc., Mounting screw G3/8{PF} Weight Approx. 200 g Tightening torque 20 N･m ~ 40 N･m {2.04 kgf･m ~ 4.08 kgf･m} Special specification NS100A-D6 : Guranteed accuracy 0.2 %R.O. at negative side. Power supply voltage : ±DC15 V NS100A-H : As an amplifier part is are separated.(The highest, environmental temperature is 200 ℃) NS100A-S70 : IP67 waterproof construction with zero adjustment factor) NS102 : Pressure inlet port : φ10 　 　 Parts No. Rated capacity NS100A-200KP*-*132 200 kPa NS100A-500KP*-*132 500 kPa NS100A-1MP*-*132 1 MPa NS100A-2MP*-*132 2 MPa NS100A-5MP*-*132 5 MPa NS100A-10MP*-*132 10 MPa NS100A-20MP*-*132 20 MPa NS100A-25MP*-*132 25 MPa NS100A-30MP*-*132 30 MPa NS100A-35MP*-*132 35 MPa NS100A-50MP*-*132 50 MPa CAD files (DXF) Specification sheet (PDF) Instruction manual (PDF) - Connector type (43KB) KS50890-2 (121 KB) No.KS60030-1 (355KB) NS115P / NS115 series 　 　 ・ 　 Excellent in the long term stability. ・ 　 Accuracy 0.1%R.O. is available (including non-linearity, hysteresis and repeatability) ・ 　 Small size and light weight, the Cable horizontal putting out type is possible. ・ 　 Excellent in solidity and a surge pressure ・ 　 Attached zero point adjustment * 　 Application Automatic transmission testing equipment, Solenoid valve testing device, Fuel cell evaluation device 　 　 　 Rated capacity 500 kPa ~ 10 MPa (NS115P / High-accuracy type) 5 MPa ~ 50 MPa (NS115 / Standard)) Safe overload 200 %R.C. Ultimate overload 300 %R.C. Accuracy 0.1 %R.O. (NS115P / High-accuracy type) 0.5 %R.O. (NS115 / Standard type)) (including non-linearity, hysteresis and repeatability) Rated output Current : 4 mA ~ 20 mA (2 wires method, Load resistance 500 Ω or less, at 24 V) Voltage : 0 V ~ 5 V, 0 V ~ 10 V (Load resistance 5 kΩ or more). Zero adjustment range ±1 % Power supply voltage DC 24 V(18 V ~ 28 V) Power consumption Approx. 20 mA Insulation resistance 1 000 MΩ or more (DC 50 V) Temp. range, compensated -20 ℃ ~ 70 ℃ Temp. range, safe -30 ℃ ~ 80 ℃ Temp. effect on zero ±0.15 %R.O./10 ℃ (NS115P / High-accuracy type) 0.5 %R.O./10℃ (NS115 / Standard type) Temp. effect on output ±0.15 %LOAD/10℃ (NS115P / High-accuracy type 0.5 %LOAD/10℃ (NS115 / Standard type) Ｏ-ring seal FKM4-class D (High-accuracy type), NBR(Standard type) Selectable by the medium. Class of protection IP67 Material of pressure hole SUS316L (high-accuracy type), SUS304L (Standard type) Material of cover SUS316 (high-accuracy type), Aluminium (Standard type) Material of pressure diaphragm Single crystal sapphire Mounting screw 1/8 ･ 1/4 ･ 3/8G{PF}, {PT} Weight NS115 : Approx. 200 g, NS115P : 250 g (Main body only) Tightening torque 20 N･m ~ 40 N･m Parts No. Rated capacity NS115P-500KP*-***2 500 kPa NS115P-1MP*-***2 1 MPa NS115P-2MP*-***2 2 MPa NS115P-2.5MP*-***2 2.5 MPa NS115P-5MP*-***2 5 MPa NS115P-10MP*-***2 10 MPa NS115-5MP*-***2 5 MPa NS115-10MP*-***2 10 MPa NS115-20MP*-***2 20 MPa NS115-25MP*-***2 25 MPa NS115-30MP*-***2 30 MPa NS115-35MP*-***2 35 MPa NS105-50MP*- ***2 50 MPa NS300 series 　 　 ・ 　 Compact size (φ22 x 1.62 mm)and light weight (100 g) ・ 　 Drain cock is equipped with, by which the air in pressure medium can be pulling out. Rated capacity 1 MPa ~ 10 MPa Safe overload 200 %R.C. Ultimate overload 200 %R.C. Accuracy 0.2 %R.O. (including non-linearity, hysteresis and repeatability) Rated output 0 V ~ 10 V (Load resistance 5 kΩ or more). Power supply voltage DC 24 V (18 V ~ 28 V) Insulation resistance 1 000 MΩ or more (DC50 V) Response frequency Approx. 1 kHz Temp. range, compensated -20 ℃ ~ 120 ℃ Temp. range, safe -30 ℃ ~ 130 ℃ Temp. effect on zero ±0.2 %R.O./10 ℃ Temp. effect on output ±0.2 %LOAD/10℃ Class of protection IP65 (Main body only) Ｏ-ring seal FKM4-class D (High-accuracy type), NBR(Standard type) Selectable by the medium. Material of pressure hole Stainless steel Material of cover Stainless steel Material of pressure diaphragm Single crystal sapphire Mounting screw 1/8 R {PT} Weight 100 g (Main body only) Cable φ3.8, 4-cores shielded cable 3 m directly attached. Tightening torque 10 N･m ~ 20 N･m Parts No. Rated capacity NS300-1MP 1 MPa NS300-2MP 2 MPa NS300-5MP 5 MPa NS300-10MP 10 MPa PRN01 / PRN02 Series 　 　 ・ 　 ASIC(Application Specific I.C.) amplifier is installed. ・ 　 High performance type pressure transmitter with a little temperature effect and excellent in noise. ・ 　 Total accuracy : ±1.0 %F.S. (Including the temperature effect from -20℃ to 70℃.) ・ 　 The newly developed high stability and low current strain gage has been used for the diaphragm made of 17-4 PHs. ★ 　 Application Injection molding machine, Press machine, Various pump systems, Hydraulic apparatus Rated capacity 5 MPa~100 MPa Safe overload 150 %R.C. Ultimate overload 200 %R.C. Accuracy ±1.0 %F.S. (including non-linearity, hysteresis, repeatability) Rated output Current : 4 mA ~ 20 mA Voltage : 0 V ~ 5 V, 1 V ~ 5 V 　 　 Response frequency 1 kHz Power supply voltage DC12 V ~ 28 V Insulation resistance 1 000 MΩ or more (DC50 V) Temp. range, compensated -20 ℃ ~ 70 ℃ Temp. range, safe -30 ℃ ~ 80 ℃ Temp. effect on zero PRN01 : ±1.0 %F.S./-20 ℃ ~ 70 ℃ PRN02 : ±2.0 %F.S./-20 ℃ ~ 70 ℃ Temp. effect on output PRN01 : ±1.0 %F.S./-20 ℃ ~ 70 ℃ PRN02 : ±2.0 %F.S./-20 ℃ ~ 70 ℃ Cable φ4.7, shielded 1 m cable directly attached, cable end is separated(Cable directly attached type : PRN01) Class of protection IP65 Material of element Stainless steel (17-4PH) Mounting screw G3/8{PF}, R3/8{PF} (PRN01/02-100MP : G1/2{PF}, R1/2{PF}) Weight Approx. 70 g Parts No. Rated capacity PRN0*-5MP**S* 5 MPa PRN0*-10MP**S* 10 MPa PRN0*-20MP**S* 20 MPa PRN0*-35MP**S* 35 MPa PRN0*-50MP**S* 50 MPa PRN0*-100MP**S* 100 MPa NS10T series for compound pressure measurement 　 　 ・ 　 High accuracy at 0.2 %R.O.(including non-linearity, hysteresis and repeatability.) 0.1 %R.O. as high accurate spec. is available. ・ 　 Natural frequency : 72 kHz~1 278 kHz ・ 　 Gage pressure measurement (including compound pressure and negative pressure) from -100 kPa to each rated capacity (200 kPa ~ 10 MPa) is measurable. ・ 　 Temperature environment upto150 ℃ is possible. * 　 Application Automatic transmission or engine test stand. Changeable valve lift mechanism testing instrument and various test benches, Solenoid valve experiment device, Calorie meter, CO2 compressor, Flow measurement device Parts No. NS10T Rated capacity 200 kPa~50 MPa Safe overload 200 %R.C. Ultimate overload 300 %R.C. Accuracy ±0.2 %R.O. (±0.1 %R.O. for high accurate type ) (including non-linearity, hysteresis and repeatability) Rated output 1.5 mV/V±0.15 mV/V (NS10T-200KP, -500KP: 1.0 mV/V±0.10 mV/V) Excitation, recommended DC10 V Excitation, maximum DC15 V Zero balance ±0.05 mV/V Input resistance 700 Ω ~ 1 000 Ω Output resistance 700 Ω ~ 1 000 Ω Insulation resistance 5 000 MΩ or more Temp. range, compensated -20 ℃ ~ 120 ℃ Temp. range, safe -40 ℃ ~ 160 ℃ Temp. effect on zero 0.2 %R.O./10 ℃ Temp. effect on output 0.2 %LOAD/10 ℃ Class of protection IP55 Material of pressure inlet hole SUS630 or 17-4PH Material of cover Aluminium (Alumite processing) Material of diaphragm Saphire Mounting screw 3/8 G{PF}, R{PT} Tightening torque 20 N･m ~ 40 N･m Cable φ3.8, high temperature type shielded 3 m cable directly attached, cable end is separated Weight Approx. 200 g (main body only) Parts No. Rated capacity NS10T-200KP 200 kPa NS10T-500KP 500 kPa NS10T-1MP 1 MPa NS10T-2MP 2 MPa NS10T-5MP 5 MPa NS10T-10MP 10 MPa NS10T-20MP 20 MPa NS10T-30MP 30 MPa NS10T-35MP 35 MPa NS10T-50MP 50 MPa NS30T series 　 　 ・ 　 Small size and light weight ・ 　 The manifold type pressure can be measured by high accuracy and the high response. ・ 　 Natural frequency : 72 kHz~566 kHz ・ 　 Accuracy 0.2 %R.O. ・ 　 Temperature environment 150℃ at max.(NS30T-H series) * 　 Application Experimental use of automatic transmission engine, Various test benches, Solenoid valve experiment device,Calorie meter, CO2 compressor, Flow measurement device Rated capacity 200 kPa~10 MPa Safe overload 200 %R.C. Ultimate overload 300 %R.C. Accuracy ±0.2 %R.O. (including non-linearity, hysteresis and repeatability) Rated output 1.5 mV/V±0.15 mV/V Excitation, recommended DC10 V Excitation, maximum DC15 V Zero balance ±0.05 mV/V Input resistance 700 Ω ~ 900 Ω Output resistance 700 Ω ~ 900 Ω Insulation resistance 1 000 MΩ or more (DC 50 V) Temp. range, compensated -20 ℃ ~ 120 ℃ Temp. range, safe -45 ℃ ~ 160 ℃ Temp. effect on zero ±0.2 %R.O./10 ℃ Temp. effect on output ±0.2 %LOAD/10 ℃ Class of protection IP65 Material of pressure hole Stainless steel (SUS340L) Material of diaphragm Sapphire Mounting screw G1/8{PF}, R1/8{PT} Tightening torque 20 N･m ~ 40 N･m Cable φ3.8,shielded high temperature 1 m cable directly attached, cable end is separated Weight Approx. 45 g (only main body) Parts No. Rated capacity NS30T-200KP 200 kPa NS30T-500KP 500 kPa NS30T-1MP 1 MPa NS30T-2MP 2 MPa NS30T-5MP 5 MPa NS30T-10MP 10 MPa PRB series 　 　 ・ 　 Small size, light weight, easily attached and detached. ・ 　 Abundant lineups corresponding to wide-range pressure. Rated capacity 1 MPa~100 MPa Safe overload 150 %R.C. Ultimate overload 300 %R.C. Rated output 1.5 mV/V±0.015 mV/V (PRB-1MP : 1 mV/V±0.01 mV/V) Non-linearity 0.2 %R.O. (PRB-1MP : 0.3 %R.O.) 　 Hysteresis 0.2 %R.O. (PRB-1MP : 0.3 %R.O.) Repeatability 0.3 %R.O. Excitation, recommended 6 V or less Excitation, maximum 10 V Zero balance PRB-1MP : ±0.05 mV/V PRB-2MP~100MP : ±0.045 mV/V Input resistance 350 Ω±3.5 Ω Output resistance 350 Ω±3.5 Ω Insulation resistance 1 000 MΩor more.((DC 50 V) (between lead and main body.) Temp. range, compensated -10 ℃ ~ 60 ℃ Temp. range, safe -15 ℃ ~ 100 ℃ Temp. effect on zero 0.2 %R.O./10 ℃ Temp. effect on output 0.2 %LOAD/10 ℃ Connector with NDI-7P-R(receptacle) Connector P/N : PRC03-21A10-7F Cable CAC-101-5M (Options) Class of protection IP64 Material of element PRB-200KP ~ 500KP : Beryllium steel, (Part of pressure diagram is stainless steel.) PRB-1MP ~ 100MP : Stainless steel Mounting screw G3/8{PF} (PRB-100K : G1/2{PF}) Weight PRB-1MP~-10MP : Approx. 220 g PRB-20MP~-50MP : Approx. 300 g PRB-100MP : Approx. 450 g Parts No. Rated capacity PRB-1MP 1 MPa PRB-2MP 2 MPa PRB-5MP 5 MPa PRB-10MP 10 MPa PRB-20MP 20 MPa PRB-30MP 30 MPa PRB-50MP 50 MPa PRB-100MP 100 MPa PRC series 　 　 ・ 　 High response typ with flash diaphragm. ・ 　 Compact size, Easy mounting or detaching Rated capacity 1 MPa~100 MPa Safe overload 150 %R.C. Ultimate overload 300 %R.C. Rated output 1.5 mV/V±0.15 mV/V (PRC-1MP : 1 mV/V (+0.2, -0.1) mV/V) Non-linearity 0.5 %R.O. 　 Hysteresis 0.5 %R.O. Repeatability 0.5 %R.O. Excitation, recommended 3 V or less Excitation, maximum 6 V Zero balance ±0.225 mV/V (PRC-1MP : ±0.25 mV/V) Input resistance 120 Ω±1.2 Ω Output resistance 120 Ω±1.2 Ω Insulation resistance 1 000 MΩ or more (DC 50 V) (between bridge and main body) Temp. range, compensated -10 ℃ ~ 50 ℃ Temp. range, safe -10 ℃ ~ 75 ℃ Temp. effect on zero 0.8 %R.O./10 ℃ Temp. effect on output 0.8 %LOAD/10 ℃ Cable φ6.3, 4 -cores 30 cm cable directly attached with NDI-7P-J (Jack) at the cable end Connector type : PRC03-32A10-7F10.5 Class of protection IP64 Material of element Stainless steel Mounting screw G3/8{PF} Weight Approx. 120 g Parts No. Rated capacity PRC-1MP 1 MPa PRC-2MP 2 MPa PRC-5MP 5 MPa PRC-10MP 10 MPa PRC-20MP 20 MPa PRC-50MP 50 MPa PRC-100MP 100 MPa PRJ series 　 　 ・ 　 Use upto a temperature (150 ℃) ・ 　 Compact size and light weight, easy to install/detach. Rated capacity 1 MPa~10 MPa Safe overload 150 %R.C. Ultimate overload 300 %R.C. Rated output PRJ-1MP : 1 mV/V±0.2 mV/V PRJ-2MP : 1.5 mV/V±0.3 mV/V PRJ-5MP~10MP : 1.5 mV/V±0.15 mV/V Non-linearity 0.3 %R.O. 　 Hysteresis 0.3 %R.O. Repeatability 0.3 %R.O. Excitation, recommended 6 V or less Excitation, maximum 10 V Zero balance ±0.05 mV/V Input resistance 373.6 Ω±5 Ω Output resistance 350 Ω±5 Ω Insulation resistance 1 000 MΩ or more (DC 50 V) (between bridge to main body) Temp. range, compensated -40 ℃ ~ 150 ℃ Temp. range, safe -40 ℃ ~ 165 ℃ Temp. effect on zero 0.25 %R.O./10 ℃ Temp. effect on output 0.5 %LOAD/10 ℃ Cable φ5.6, 4 -cores shielded 1.5 mcable for high temperature directly attached with NDI-7P-J(Jack) at the cable end. Class of protection IP60 Material of element Stainless steel Mounting screw R1/8{PT} Weight Approx. 45 g (PRJ-10MP : Approx. 60 g) Parts No. Rated capacity PRJ-1MP 1 MPa PRJ-2MP 2 MPa PRJ-5MP 5 MPa PRJ-10MP 10 MPa STD series 　 　 ・ 　 High pressure measurement ・ 　 Pressure receiving part is the integration structure with thread. * 　 Application High level oil pressure and hydraulic system, Hydro-forming machine, Diesel engine common rail oiltight device Rated capacity 200 MPa ~ 500 MPa Safe overload 120 %R.C. Ultimate overload 120 %R.C. Rated output STD-200MP ~ 400MP : 1 mV/V±0.0025 mV/V STD-500MP : 0.75 mV/V±0.007 5 mV/V Non-linearity STD-200MP ~ 400MP : 0.35 %R.O. STD-500MP : 0.5 %R.O. 　 Hysteresis 0.1 %R.O. Repeatability 0.05 %R.O. Excitation, recommended 6 V or less Excitation, maximum 10 V Zero balance STD-200MP ~ 400MP : ±0.025 mV/V STD-500MP : ±0.019 mV/V Input resistance 120 Ω±2.4 Ω Output resistance 118.5 Ω±2.4 Ω Insulation resistance 1 000 MΩ or more (DC 50 V) (betwee bridge and main body) Temp. range, compensated -10 ℃ ~ 75 ℃ Temp. range, safe -10 ℃ ~ 75 ℃ Temp. effect on zero 0.09 %R.O./10 ℃ Temp. effect on output 0.09 %LOAD/10 ℃ Cable φ6.3, 4-cores shielded 3 m cable directly attached, Y-crimp type terminal lugs are attached at cable end. Class of protection IP64 Material of element Stainless steel Mounting screw G1/2{PF} (STD-500MP : G3/4{PF}) Weight Approx. 1.4 kg Parts No. Rated capacity STD-200MP 200 MPa STD-300MP 300 MPa STD-400MP 400 MPa STD-500MP 500 MPa PRO series 　 　 ・ 　 Compact and light weight φ15 mm x 33 mm, Approx. 25 g ・ 　 Screw M10 x P1.0 ・ 　 Non-linearity 0.5 %R.O. / Hysteresis 0.5 % ・ 　 Safe temperature range : -30 dc ~ 150 dc ・ 　 Compact flash diaphragm type (Bolt shape) ・ 　 High response, and no need to pulling out in the pressure inlet. ・ 　 Application - Industrial machine that measures pressures such as adhesive, paste, paints and greese. - Experimental uses of adapting for car such as hydraulic brakes and air conditioner compressors. - testing set to shich it gives priority to high response. Rated capacity 2 MPa~20 MPa Safe overload 150 %R.C. Ultimate overload 200 %R.C. Rated output ±1.0 mV/V±0.3 mV/V Non-linearity 0.5 %R.O. 　 Hysteresis 0.5 %R.O. Excitation, recommended DC1.5 V / AC2.0 V Excitation, maximum DC3 V Zero balance ±1.6 mV/V Input resistance 350 Ω±40 Ω Output resistance 350 Ω±40 Ω Insulation resistance 1 000 MΩ or more (DC 50 V) (between bridge and main body) Temp. range, compensated -30 ℃ ~ 150 ℃ Temp. range, safe -40 ℃ ~ 160 ℃ Temp. effect on zero 0.8 %R.O./-20 ℃~ 70 ℃ Temp. effect on output 0.8 %LOAD/-20 ℃~ 70 ℃ Cable φ3.8, 4 -cores 30 cm cable directly attached Class of protection IP64 Material of element Stainless steel Mounting screw M10 x P1.0 Weight Approx. 25 g Parts No. Rated capacity PRO-2MP 2 MPa PRO-5MP 5 MPa PRO-10MP 10 MPa PRO-20MP 20 MPa
