touchlessgestureTouchless Gesture & PROXIMITY Control

ENABLING product differentiation among
consumer electronic devices






newspectroATR & TransMission
mid infrared (mir) spectrometers

for outstanding accuracy across industrial, ENVIRONMENTal and laboratory applications;

Industrial MIR Spectrometers

Handheld MIR Spectrometers

ATR & Transmission MIR Spectrometer Demo Kits


pyro-componentsPyroelectric Line Array Components


packaged sensorsPackaged Sensor Components

Transistor Outline (TO) Packaged Sensors:


demo kitsDemo Kits available

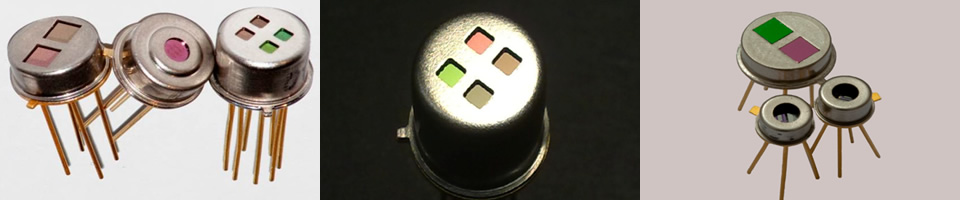

TO Packaged Sensors

topackaged

TO Packaged Sensors

Single, Dual & Quad Channel

Pyreos offers a full range of TO packaged sensors from single to quad channel in the common sized TO39/TO5 packages and also a miniaturised single channel TO46. Our products are reliable and easy to use. They all have a standard voltage output and pin compatibility with other suppliers, but benefit from both the advanced performance of our thin film pyroelectric sensor and the integration of a front-end operational amplifier within the package. Together this provides a compelling competitive advantage circuit offering extremely strong responsivity, fast frequency operation, and unparalleled robustness, allowing our customers to set new performance limits in terms of measurement resolution, temperature range, and real-time analysis.

All of our sensors are available with a wide choice of filters, and with options for all common gases, including CO2, toxic, flammable and refrigerant gases. Our team can also source filters for your NDIR gas or liquid analysis application.

KEY Features & Benefits

  • Pin compatible
  • High responsivity & S/N ratio
  • Robust – low microphonics
  • Reliable & easy to use
  • Operational from 1-20 Hz
  • Wide filter choice
  • Extended temperature range
  • Less external gain required
  • Rapid supply to customers!

Ideal for:

  • NDIR gas detection
  • NDIR pellistor replacements
  • Automotive gas analysis
  • Medical IR analysis
  • Anaesthesia
  • Fluid analysis
  • THz detection
  • Energy measurement
  • Miniaturised designs

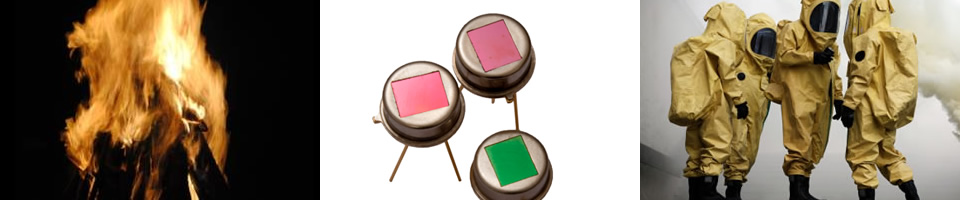

Flame Detectors

flamedetectors

Flame Detectors

Standard Single Channel Flame Detectors

Pyreos has a range of single channel flame detector products in standard TO packages for use in industrial flame detection. All of our flame detectors offer a wide field of view of over 900 in all directions. Our products offer improved sensitivity to flame flicker, as well as robustness and rapid recovery from mechanical or electrical shock compared to our competitors. We provide standard detectors with filters covering the key visible, near IR and mid IR flame signatures, and we can also source or assemble custom filters for you. Our flame detectors offer excellent performance at a competitive price and are pin and filter compatible with other suppliers (see datasheet PY-ITV-FLAME–T039(2+1)). They are available immediately in sample quantities to a few thousand pieces. Please contact us for a quotation.

Multi-channel Flame Detectors

Pyreos has developed unique three channel and four channel flame detector products. These socket and surface mount flame detector products provide all of the required IR flame sensing in component, without compromising on field of view or performance. The close proximity of the sensors ensures a better overlap in their field of view, thereby improving safety, whilst offering our customers further savings in the size and thickness of sapphire window required in their end product housing. The reduced component count, new form factor, and surface mount compatibility offer new opportunities for reduced size, cost and weight, without reducing performance.  Both three and four channel sensors can be built with your choice of filters.

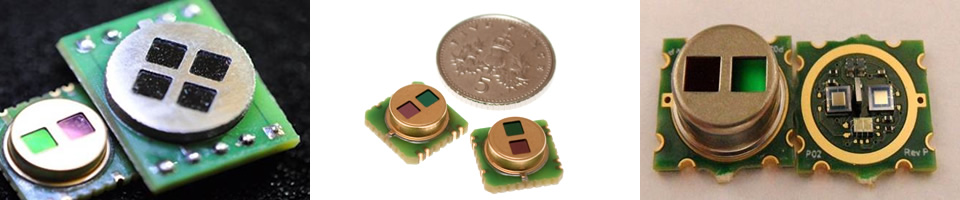

Surface Mountable Sensors - Dual and Quad Channel

surface

Surface Mountable Sensors - Dual and Quad Channel

Overview

Pyreos pyroelectric thin film IR sensors have a MEMs device structure that contributes to their overall robustness and reliability. An enhanced ability to withstand high temperatures and a solid four sided die attachment process makes surface mount pyroelectric IR sensors possible. This new, low profile package provides excellent EMC noise shielding and has further improved reliability by eliminating failures related to metal pins of conventional TO packages. Plus it enables fully automated surface mount assembly of gas sensor products.  Pyreos currently offers dual channel sensors that have a similar package cap and window size to our TO39 packaged sensors, with all filter window options available. Our premium surface mount quad channel sensor offers the highest possible signal-to-noise performance and has been used by customers in combination with our emitters to achieve 1ppm detection levels.

The package form factor also offers excellent flexibility to provide new configurations and formats of multi-gas sensors and emitters to our customers, enabling innovation in final product design and function.

FEATURES & PERFORMANCE

  • Thin form factor
  • Improved reliability
  • Flexible package design
  • Surface Mount automated assembly

Key Benefits

  • Smaller gas sensor products
  • Lower manufacturing costs
  • Enhanced product quality

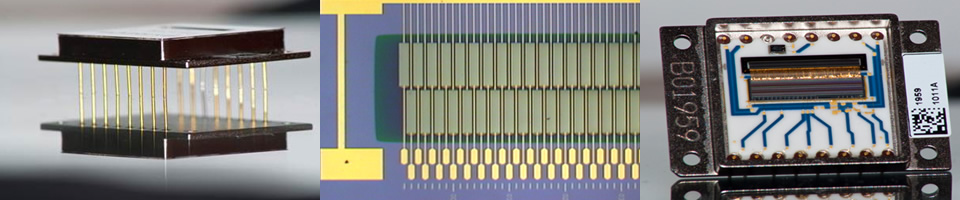

linearray

Line Array Components

Overview

Pyreos has a unique capability to manufacture un-cooled pyroelectric line array sensors that offer high performance right across the infrared spectrum. Our unique thin film pyroelectric material can be easily patterned to provide individual sensor pixels on the thermally isolating membrane layer of our sensor device. By dispersing different wavelengths of light onto each sensor pixel, new, low cost, solid state IR spectrometers and IR imaging devices become possible. Our customers are using this breakthrough product to provide new analytical solutions in medical, industrial, and scientific fields.

The line arrays are housed in a standard metal dual in line 16 pin package, that outputs an amplified, analogue multiplexed signal.  The arrays can be supplied with a variety of filter window options including NIR and mid-IR linear variable filters (LVF), as well more standard options such as anti-reflection coated Si, ZnSe, or Ge windows. These line array products provide a radical new low cost alternative approach to building IR spectrometers and  spectral analysers.

KEY Features & Benefits

  • Strong sensitivity across the IR spectral region
  • Fast operation & readout
  • Robust MEMs sensor structure
  • Choice of resolution
  • Spectral engine with LVF
  • Low power consumption
  • Low cost uncooled solution
  • Small size and weight

Ideal For:

  • IR spectroscopy
  • Medical diagnostics
  • Diabetes monitoring
  • Laser line calibration
  • Process monitoring
  • Oil analysis
  • InGaAs replacement
  • Terahertz imaging
  • Security screening

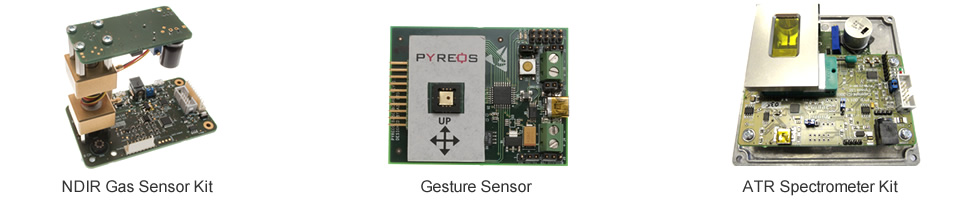

demokits

Demo Kits

Overview

Pyreos has a range of easy-to-use, PC-compatible demonstration kits (Demo kits) available immediately for rapid and full evaluation of our sensor technology. Our demonstartion kits typically use standard and well known, off-the-shelf electronic components to take our sensor output  signal and digitise it, so that it can be transferred and analysed via USB interface on a standard Windows based PC. All the operating instructions, functionality, and schematics are contained in the Demo User Guides. One kit can also support numerous Pyreos products, for example the NDIR gas kit, which can take any of the Pyreos TO packaged sensors. Our knowledgeable applications team will be available to support you as you move forward in the development of your product.


Demo Kits Available For rapid and easy testing

  • Touchless Gesture Control Demo kit
  • Transmission Spectrometer Demo Kit
  • ATR Spectrometer Demo Kit
  • Line Array Demo Kit
  • Gas Sensor Demo Kit

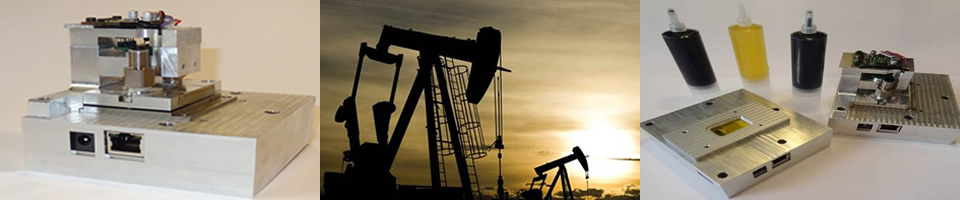

industrialspectro

Industrial MID INFRARED (MIR) Spectrometers

Overview

Pyreos is able to supply rugged, solid-state mid IR spectrometer systems that can provide high performance monitoring of liquids or gases in the harshest of environments.  Our industrial systems are designed and built to each customer’s unique requirements to provide the best possible solution, and have included high pressure and explosive proof solutions. Our expertise includes developing chemometric solutions for customers.




Features & Performance

  • Rapid, accurate mid IR analysis  - suitable for liquids or gases
  • Standard interfaces available: CAN/RS232/Ethernet/wireless
  • Solid state with a wide temperature range and stabilised for vibration & shock

Key Benefits

  • Economic and accurate mid IR data
  • Robust and long lasting - suitable for online or inline continuous mid IR monitoring
  • Can be designed to integrate into your existing manufacturing system

Ideal for:

  • Oil analysis & condition monitoring
  • Transformer monitoring
  • Food processing
  • Petrochemical, diesel & biodiesel analysis
  • Chemical reaction monitoring
  • Pharmaceutical manufacturing

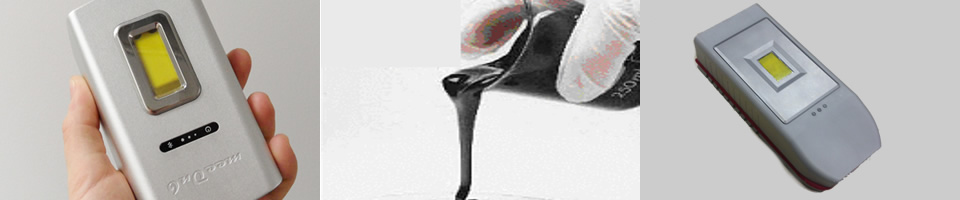

portablespectro

Handheld mid IR Spectrometer For ATR & Transmission

Overview

Pyreos brings you handheld mid IR spectroscopy for immediate, simple and accurate analysis of solids, liquids and slurries typically over 2.5- 5.0 or 5.5 -11 um ranges. Our battery powered devices are compact and robust enabling instant, reliable on-site results removing the wait for expensive lab-based analysis or any requirements for complex training.

Using Attentuated Total Reflectance Measurement (ATR) as a sampling method allows for instant, convenient and              cost-effective collection of multiple infrared spectral measurements. An additional software suite is further available to enable rapid and advanced chemometric and prediction functionality.




Features & Performance

  • Rapid analysis in 5.5-11um (fingerprint region) & 2.5-5.0um (functional groups)
  • Ultra compact, lightweight enclosure (0.5kg)
  • Long life battery with USB charging option
  • Consistent and accurate analysis with ability to measure in the ppm range
  • Can be pre-loaded with chemometric calibration data
  • Simple, easy to use software
  • Rapid PLSR analysis feasible through purchase of additional Pyreos chemometrics software

Key Benefits

  • Fast, accurate results at low cost
  • Onsite analysis – no more waiting for expensive lab based results!
  • High performance even in harsh, challenging environments

Ideal for

  • Portable oil analysis
  • Soil analysis
  • Food analysis
  • Oil in water analysis
  • Biodiesel monitoring
  • Pharmaceutical QA
  • Medical analysis of urine & saliva
  • Wastewater monitoring
Spectroscopy Solutions Brochure
gassensing

Gas Sensing

Overview

NDIR gas detection has a vital role in reducing the global effects of climate change. As the premier method for monitoring CO2 gas levels in both environmental and industrial settings, NDIR (non-dispersive infra-red) gas detection helps ensure compliance with the most challenging government environmental targets and safety legislation. Pyreos sensor and emitter products are helping our customers achieve ground breaking performance improvements in detection limits and reliability, as well as enabling innovative new product form factors.

NDIR gas detection is also the preferred method for detecting many other flammable, toxic, and refrigerant gases in a wide variety of industrial process control and medical applications, as it is recognised as a technique that offers excellent reliability and accuracy, as well as the lowest overall cost of ownership.

The recent  introduction of lower cost pulseable black-body IR emitters has further extended the range of gases that can now be monitored using NDIR to include gases with “fingerprint” absorptions from 4-15 microns like NO2, SOx , NH3 and many more. Our sensors’ strong mid IR sensitivity is ideally suited for these.

Pyreos sensors and emitters combine to  provide excellent fast frequency operation, enabling high accuracy, real-time multi-gas analysis and greatly reducing the size, cost and weight of multi-gas analysers.

With a wide product range and an easy ability to provide custom products in unique form factors, Pyreos is here to help take your gas sensing applications to new levels of performance and competitive advantage.

Pyreos' Solution

  • TO Packaged Sensors
  • TO Packaged Blackbody Emitters
  • Surface Mount Sensors
  • Surface Mount Emitters / Bulb replacements

Key Benefits

  • Performance
  • Reliability
  • Stability
  • Ease of Use
  • Cost-to-performance



Pyreos薄膜热释电红外探测器





英国Pyreos公司是一家专业的薄膜热释电红外探测器生产厂商,其产品主要是各种规格的热释电传感器,可以覆盖1.3um-25um的红外谱段,灵敏度高,频率响应特性好,拥有14项专利技术,性能优良。基于其独有的薄膜热释电探测技术(Thin-Film Pyroelectric Technology),这项技术由德国西门子公司于上世纪九十年代初开发出来,历经十余年的研发和改进,2008年被Pyreos公司收购,并开始大批量生产基于该技术的红外探测器。

薄膜热释电探测器主要用锆钛酸铅铁电薄膜(PZT film)作为光电转换元件,其厚度仅为1um,构成一个微型的光电系统,其产生的电流通过两个电极搜集起来。

产品的主要应用领域为:

气体探测

火灾预警

人流量计数

薄膜热释电探测器带给用户的好处:

一、 灵敏度高,D*可以达到>1×109,远远高于其他热释电传感器。

二、 可用来检测更为微弱的信号,提升产品的档次,增强竞争力,降低生产成本。

三、 噪声低且随着温度升高,噪声依然可以维持在较低水平,提高用户系统的信噪比,大幅降低温度对系统的影响。

四、 频率特性好,响应速度快,可达<5ms (200Hz)提高用户系统的响应速度。

五、 熔点高,约600℃,耐高温无需额外的恒温系统及探测器保护装置,大大提高产品在复杂环境下工作的稳定性。

六、 探测器的面积可选的范围很宽,从150um×150um到3mm×2mm,封装形式多样化 用户有更多选择,系统设计更加灵活。

七、 光谱响应范围从1.2um-20um根据不同应用,客户可选择装配有滤光片的探测器,用于火焰检测、气体检测或光谱分析应用中。

火灾预警,行为监控及客流量计数:

与传统的红外发射、接收的方式相比,如果选择合适焦距的红外镜头,配合不同阵列的红外探测器,不仅能够直接捕捉到由被测物体发射的红外信号(去掉了发射这一步骤),还能够获得包括空间位置等更详细的信息,有助于后续的分析系统作出正确的判断,降低误判率。

气体检测:

目前,针对气体检测领域可以提供薄膜热释电传感器,包括单通道、双通道和四通道的气体传感器。由于这种探测器具有低功耗,探头小巧,灵敏度高,性能稳定,频率响应快等优势,可广泛应用于红外气体检测领域,可用来也制作气体分析仪(含便携式),如检测CO2、CO、CH4、H2S、碳氢化合物、氮氧化合物等。




我们公司代理多家国外领先光学元器件及探测器产品,广泛应用于X射线高能检测、工业无损检测、工业CT、小动物CT、行李箱包检测、皮带检测、轮胎检测、钢板测厚、弱光检测、化学发光仪、PET、环境气体检测、XRF等多个领域,其主要国外厂家及产品包括:

    IBSG公司创立于1991年,创始人是几位俄罗斯约费物理技术研究所的主要研究人员。公司致力于开发制造中红外光谱范围的光电器件。目前,IBSG是世界上唯一一家在中红外光谱1600-5000纳米范围内拥有全线中红外光发射二极管和光电二极管的公司。除了拥有宽范围的标准产品我们还可以为不同目的的客户提供定制解决方案。    我公司为IBSG在中国的唯一代理商。
    德国HEIMANN公司为著名的红外探测器制造商,产品包括热释电探测器,热电堆探测器,探测器阵列,应用于红外分析,探测,成像,测温等等。可登录其网站
    我们是HEIMANN联系紧密的中国代理商,可代客户定做各种探测器。
    美国DCS公司有多年的红外CO2模块制造经验,其生产的红外CO2测量模块,价廉物美。我们和DCS有多年的合作经验。是DCS在中国的重要代理商。
    美国VTI公司是专业制造红外气体测量模块的公司,主要有CO2,CO,CH4,NH3和致冷剂模块,公司生产的产品质量非常好,优于英国爱丁堡,价格比之爱丁堡便宜,质量控制非常严格,通过ISO认证,气体模块标定按照NIST 标准, ANSI/IPC-610, level II workmanship 标准。A/D转换都采用16位分辨率。我们和VTI合作多年。可提供定做服务。
    日本FIGARO是世界著名的半导体气体传感器制造商,我们只销售他们代理的日本GS公司的高浓度氧气传感器KE-25和KE-25F3.这个氧气传感器用途非常广泛。在各个行业,分析仪器中均可找应用。我们销售多年,有很好的价格和服务。
    美国S-ET公司是世界著名的紫外LED制造商,是少数几个掌握深紫外LED技术的厂家之一,也是拥有完整的深紫外LED全系列的唯一厂家。

SUNSTAR光电探测器目录





红外光敏电阻系列产品

美国NEP专业生产各种规格高品质硫化铅,硒化铅,铟镓砷红外探测器,广泛用于以下产品:

  • 火焰探测器,锅炉控制等

  • 气体分析仪,包括工业气体、汽车尾气等

  • 湿度分析仪

  • 红外温度测量

  • 光谱仪

  • 蛋白质成分分析仪

我们提供以下产品:

  1. 硫化铅红外光敏电阻系列 (PbS)

  2. 电子冷却硫化铅红外光敏电阻系列 (TEC PbS)

  3. 硫化铅红外线阵探测器 (PbS Linear Array)

  4. 硒化铅红外光敏电阻 (PbSe)



  5. 电子冷却硒化铅红外光敏电阻 (TEC PbSe)

  6. 硒化铅红外线阵探测器 (PbSe Linear Array)

  7. 铟镓砷InGaAs PIN光电二极管近红外探测器







更多产品请看本公司产品专用销售网站:
