Medical Oxygen Sensors
        (O₂ sensors)

1. General Specifications and characteristics of our medical oxygen sensors:

• Interferences against anesthetic gases according to DIN EN 12598 and ISO767

• Up to 18 months warranty from the date of shipment depending on sensor

• Life time up to 60 months

• Storage time up to 6 months max. recommended

• Minimum or basically no warm-up time

• Less risk of leakage based on improved sensor housing

• Highly accurate and stable perfomance

• OEM possible

• Made in Germany

All technical data based on 25°C temperature, 50% relative humidity and 1013hPA pressure.
(Diving sensors on request)

　

For detailed specifications and prices contact Nuova (see contact form below)

E-9/0 　 Connector: 3-pin wired Molex Measuring range: 0-100% O2 Output signal: 9.5–14 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-11/0 　 for specifications ask Nuova	E-14/0 　 Connector: wired phone connector Measuring range: 0-100% O2 Output signal: 8–12 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-14/S                                                Connector: phone plug with cable Measuring range: 0-100% O2 Output signal: 8-10.5 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months
E-15/0 　 Connector: 2 contact rings gold plated Measuring range: 0-100% O2 Output signal: 14–20 mV Response time:< 17 seconds Warranty: 16 months Storage: up to 6 months	E-15/2 　 Connector: 3 contact rings Measuring range: 0-100% O2 Output signal: 14.5–20.5 mV Response time: < 12 seconds Warranty: 15 months Storage: up to 6 months	E-15/4 　 Connector: modular jack Measuring range: 0-100% O2 Output signal: 8–12 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-15/5 　 Connector: 3.5 mm mono jack Measuring range: 0-100% O2 Output signal: 8–12 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months
E-16/0 　 Connector: 3-pin Molex Measuring range: 0-100% O2 Output signal: 9.5-16 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-16/HTT 　 Connector: 3-pin Molex Measuring range: 0-100% O2 9.5-16 mV Response time: 12 s at flow >2l/min Warranty: 16 months Storage: up to 6 months	E-17/A2 　 Connector: 3-pin Molex Measuring range: 0-100% O2 Output signal: 8–12.5 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-17/A4 　 Connector: 3-pin Molex Measuring range: 0-100% O2 Output signal: 10-12.5 mV Response time: < 13 seconds Warranty: 12 months
E-17/J 　 Connector: 3.5 mm mono jack Measuring range: 0-100% O2 Output signal: 13–17 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-25/0 　 Connector: straight power jack Measuring range: 0-100% O2 Output signal: 9–14 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-17/M 　 Connector: 3-pin Molex Measuring range: 0-100% O2 Output signal: 13-16.5 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months	E-17/OS 　 Connector: RJ11 modular jack 4P4C Measuring range: 0-100% O2 Output Signal: 9–12 mV Response time: < 13 seconds Warranty: 16 months Storage: up to 3 months
E-33/0 　 Connector: gold plated Contact rings Measuring range: 0-100% O2 Output signal: 200 µA Response time: < 20 seconds Warranty: 16 months Storage: up to 3 months	E-33/1 　 Connector: double wired PCB plug Measuring range: 0-100% O2 Output signal: 200 µA Response time:< 20 seconds Warranty: 16 months Storage: up to 3 months	E-43/0 　 Connector: gold plated contact rings Measuring range: 0-100% O2 Output signal: 25–35 mV Response time: < 17 seconds Warranty: 12 months Storage: up to 3 months	E-47/0 　 AMP phone jack 4P4C Measuring range: 0-100% O2 Output signal: in accordance with Hudson 5801 analyzer Response time: < 12 seconds Warranty: 16 month Storage: up to 6 months
E-55/0 　 Connector: 4-pin male socket Measuring range: 0-100% O2 Output signal: 250-650nA Response time: < 15 seconds Warranty: 16 months Storage: up to 4 months	E-60/0 　 Connector: AMP phone jack Measuring range: 0-100% O2 Output signal: 3.8-4.8 mV Response time: < 12 seconds Waranty: 16 months Storage: 4 months	E-75/1 　 Connector: AMP Measurng range: 0-100% O2 Output signal: 10 - 14 mV Response time: < 13 seondcs Warratny: 18 months Storage: up to 6 months	E-75/2 　 Connector: mini universal mate N Lock Meauring range: 0-100% O2 Output signal: 10 - 14 mV Response time: < 13 seconds Warranty: 18 months Storage: up to 6 months
E-75/4 　   Connector: NESJ25   Measuring range: 0-100% O2   Output signal: 10-14 mV   Response time < 13 seconds   Warranty: 18 months   Storage: up to 6 months	E-75/6 and E-75/E8 　 Connector: E-75/KE6: SM2SH Connector: E-75/KE8: IP40 3pol Measruring range: 0-100% O2 Output signal: 10-14 mV Response time: < 13 seconds Warranty and Storage as E-75/4	E-75/7 　 Connector: J1 jack connector Measuring range: 0-100% O2 Output signal: 10-14 mV Response time: 13 seconds Warranty: 18 months Storage up to 6 months	E-75/9 　 Connector: J1 jack connector Measuring range 0-100% O2 Output signal: 10-14 mV Response time: 6 seconds Warranty: 18 months Storage: up to 6 months
E-75/10+ 　 Connector: plastic plug Measuring range: 0-100% O2 Output signal: 10-14 mV Response time: 6 seconds Warranty: 18 months Storage: up to 6 month	E-75/R2 　 Connector: 3 gold plated contact rings Measuring range: 0-100% O2 Output signal: 30,8-26,2 mV Response time: 20 seconds Warranty: 18 months Storage: up to 6 months	E-77/0 　 Connector: RJ11 modular plug 4P4C Measuring range: 0-100% O2 Output signal: 7.5–12.5 mV Response time: < 8 seconds Warranty: 16 months Storage: up to 6 months	E-77/0A Connector: AMP phone jack 4P4CV Measuring range: 09-100% O2 Output signal: 10-15 mV Response time: < 5 seconds Warranty: 12 months
E-77/0S 　 Connector: RJ11 modular jack Measuring range: 0-100% O2 Output signal: 9-13 mV Response time: < 15 seconds Warranty: 16 months Storage: up to 6 months	E-8000 　 Connector: 3 gold plated contact rings Measuring range: 0-100% O2 Output signal: 14.5–19.5 mV Response time: < 12 seconds Warranty: 16 months Storage: up to 6 months

Contact Nuova®®

Manufacturer/Model	OEM Sensor/Machine	Nuova Sensors
Airshields®	6735142	E-17/J
Airshields®	6736140	E-55/0
Airshields (Hill Rom)® C2000/C200	8362030	E-17/A2
Airshields® C100	specify monitor and oxygen cell
Airshields® Infant Incubator Isolette	Infant Incubator Isolette	E-17/A2
Akkutronik®	Jet-ventilator	E-77/OA
Allied Healthcare® (B+F Medical)	65004	E-33/0
Alpha Med®		E-17/J
Analytical Industries®	Monitor 2000M/A	E-60/0
Analytical Inustries®	PSR-11-75/KE1	E-75/1
Analytical Industries®	PSR-11-75/KE2	E-75/2
Analytical Industries®	PSR-11-75/KE4	E-75/4
Analytical Industries®	PSR-11-75/KE6	E-75/6
Analytical Industries®	PSR-11-75/KE8	E-75/8
Analytical Industries®	PSR-11-915	E-15/0
Analytical Industries®	PSR-11-915/2	E-15/2
Analytical Industries®	PSR-11-917/M	E-17/M
Analytical Industries®	PSR-11-58	E-47/0
Analytical Industries®	PSR-917/J1	E-25/0
Analytical Industries®	PSR-917/J	E-17/J
Analytical Industries®	other sensors from AII other Nuova
ATOM®	OX-60	E-15/5
ATOM® 2000		E-17/A2
ATOM® 2100 Incubator		E-17/A2
BCI®	R-17	E-17/J
Bertucci®	T1/T2	E-33/0
Bio Tek®	X74223	E-33/0
Biomed®	M-2/M-10	E-17/J
Biomed®	48351	E-33/0
Biotest®	S101	E-15/0
Biotest®	A103	E-17/A2
Biotest®	C102-1	E-17/J
Bird®	AVEA	E-17/M
Bird®	6400 Vent/8400 Vent/VIP Venti/Sentry, 66030 O2 Cell	E-17/J
BMD®	10006	E-17/J
Ceramatec®	CAG-14	E-09/0
Ceramatec®	CAG-1	E-15/0
Ceramatec®	CAG-11	E-15/2
Ceramatec®	CAG-10	E-15/4
Ceramatec®	CAG-13	E-17/J
Ceramatec®	CAG-12	E-17/M
Ceramatec®	CAG-19	E-33/0
Ceramatec®	CAG-18	E-33/1
Ceramatec®	CAG-9	E-55/0
Ceramatec®	CAG-17	E-77/0
Cheiron®	R-24	E-17/M
City Technologies®	MOX-10	E-11/0
City Technologies®	MOX-01	E-17/A2
City Technologies®	MOX-02	E-17/J
City Technologies®	MOX-09	E-17/M
City Technologies®	MOX-04	E-77/0
City Technologies®	MOX-03	E-77/OS
Comen®	MOX-03	E-77/OS
Criticare®	644 cell	E-17/A2
Criticare® (8100 Poet, 8500 Poet)		E-17/A2
Dameca®	42035-46	E-17/J
Datascope®	0600-00-0002	E-17/A2
Datex-Engstrom®	Erica, Elvira	E-17/J
DP Medical®	MVA210	E-15/2
Draeger®	Original 6850930	Original 6850930, ask Nuova
Draeger®	6803290	E-15/0
Draeger®	Incubator 8000 only	E-8000
Draeger®	6850645/6803290 Cicero, Cato, Babylog, Sulla, Oxycom, Oxydig, Savina, Evita 2 & 4, Evita Dura, PM8, Fabius	E-15/2
Draeger®	6850645,  special adopted to Evita 2 & 4, Evita XL, Evita Dura, Babylog, I8000 (long-life sensor)	E-75/R2
Draeger® Narcomed 1A,2,2B,3,4	6850645	E-15/2
EME®, Infant Flow		E-17/M
EnviteC®	OOM204	E-17/A4
EnviteC®	OOM202-1	E-17/J
EnviteC®	OOM202-2	E-09/0
EnviteC®	OxiQuant RM	E-15/0
EnviteC®	OOM201	E-15/2
EnviteC®	OOM102-1	E-15/5
EnviteC®	OxiQuant M	E-15/5
EnviteC®	OOM101	E-15/O
EnviteC®	OOM102	E-17/A2
EnviteC®	OOM102-C	E-17/A2
EnviteC®	OOM103	E-17/A2
EnviteC®	OOM103-1	E-17/J
EnviteC®	OOM202	E-17/M
EnviteC®	OOM107	E-33/0
EnviteC®	OOM107-2	E-33/1
EnviteC®	OOM105	E-77/0
EnviteC®	OOM104	E-8000
EnviteC®	OOM106	ask Nuova
F. Stephan®	Stefanie	E-11/0
F. Stephan®	OOM101	E-15/0
F. Stephan®	ARTEC	E-15/5
F. Stephan®	all others	E-15/5
F. Stephan®	Christina 1107600009 Vent.	E-17/J
Fraser Harlake®	66-00453	E-33/0
Fresenius®	X74223	E-33/0
GE/Marquette®	R-22	E-17/A2
Ginevri®	Figaro 25	E-75/0
Hamilton®	51250, Aladdin, Amadeus, Veolar	E-33/0
Hamilton®	51214, Raphael, Galileo, Arabella, Multniex	E-17/M
Hamilton® O2 Cells	HM-10	E-15/0
Hamilton® O2 Cells	HM-13, HM-14	E-15/2
Hamilton® O2 Cells	HM-12	E-17/A2
Hamilton® O2 Cells	HM-11	E-17/J
Hamilton® O2 Cells	HM-01	E-33/0
Hamilton® O2 Cells	HM-03	E-77/0
Heinen und Loewenstein®	OOM102	E-17/A2
Heinen und Loewenstein®	Leoni, Leoni2	E-17/A4
Henleys®	5556	E-17/A2
Henleys®	5567	E-17/J
Henleys®	5569	E-33/0
Hewlett Packard®	15201-1A	E-15/0
Hewlett Packard®	15201A	E-15/2
Heyer®	Pocket O2	E-33/0
Hill-ROM®	R-22	E-17/A2
Hill-ROM®	R-24	E-17/M
Hudson®	5800, 5801, 5803	E-47/0
Hudson®	5556	E-15/0
Hudson®	5557, V-14	E-15/2
Hudson®	5566	E-17/A2
Hudson®	5567, V-11	E-17/J
Hudson®	5568 C1, V-01	E-33/0
Hudson®	5558, V-03	E-77/0
Hudson®	5565	ask Nuova
Hudson®	5569, V-02, 5525, 5528, 5529, 5550, 5552	E-33/1
Hudson®	5500, V-05, 5557, 6477, 5590, 5595, 5584	E-55/0
IMED®	810/825	E-33/0
Infrasonics® Adult Star/601T	60116	E-17/M
Integral Process®	all	please ask Nuova for compatibles
Invivo®	9445 sensor	E-17/J
Ivac®	1200, 1225	E-33/0
Kontron®	ABT5100	E-17/J
Libra®	OM500	E-33/0
Lifecare®	PLV-100/37-079	E-17/J
Maxtec®	OM25AE/OM-25 ME Monitor	Ask Nuova
Maxtec®	Max-13C	E-14/0
Maxtec®	Max-1	E-15/0
Maxtec®	Max-11	E-15/2
Maxtec®	Max-10	E-15/4
Maxtec®	Max-16	E-16/0
Maxtec®	Max-41	E-16/0
Maxtec®	Max-12A	E-17/A2
Maxtec®	Max-13 (CAG13)	E-17/J
Maxtec®	Max-12 16, 22C	E-17/M
Maxtec®	Max-250 ESF	E-25/0
Maxtec®	Max-250K	E-75/4
Maxtec®	Max-250B	E-75/6
Maxtec®	Max-250E	E-75/9
Maxtec®	Max-250+	E-75/10+
Maxtec®	Max-19 (CAG19)	E-33/0
Maxtec®	Max-18 (CAG18)	E-33/1
Maxtec®	Max-9	E-55/0
Maxtec®	Max-17 (CAG17)	E-77/O
Maxtec®	Max-2	E-15/1
Maxtec®	Max-3	E-77/OS
Maxtec®	Max-8	O-15/3 ask Nuova for availablility
Maxtec®	Max-15 (CAG15)	O-33/2 ask Nuova for availability
Maxtec®	Max-25/250	E-75/1
Maxtec®	Max-14	E-09/0
MEDEC® Belgium	ask Nuova
Medigas®	T-1/T-2	E-33/0
Megamed®	M2	E-33/0
Megamed®	M1	E-33/1
Mercury Medical®	all	please ask Nuova for compatibles
MSA®	655264/655263	E-15/0 also E-15/2
MSA® (Catalyst Research)	710644	E-16/0
MSA® (Catalyst Research)	472062/470644	E-17/M
MSA ®(Catalyst Research)	478841, 485955	E-33/0
MSA® (Catalyst Research)	485905, 655262	E-33/1
MSA® (Catalyst Research)	655265	E-55/0
MSA® (Catalyst Research)	804674	E-77/0
MSA® MiniOx 3000		E-15/5
MSA® MiniOx I, II, III	406931	E-17/J
MSA® MiniOx I	806572	E-09/0
Newport ®	Ventilator 500	E-77/0
Newport®	Ventilator 500 & E360Event	E-75/7
Newport® VM20	VM200	E-77/0
Newport® Wave Ventilato	OM100, OM105	E-77/0

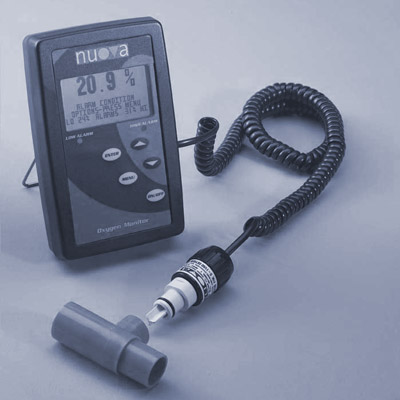

Nuova	M-OA2003 Oxygen Monitor	E-49/0
OES Medical®	Sensor model MOX-3	E-77/OS
Ohmeda®(Datex)®	Giraffe	E-43/0
Ohmeda® (Datex)®	0237-2034-700	E-15/0
Ohmeda® (Datex)® Smart Vent 7900, 7100 Ventilator, Modulus SE, S-5 Espire®, Aestiva, 3000/5, Aespira,	6050-004-110	E-15/4
Ohmed®a Centiva S/5	6051-0000-216	E-17/A2
Ohmeda® O2 cell	6051-0000-224	E-15/2
Ohmeda® O2 cell	6051-0000-217	E-17/J
Ohmeda® O2 cell	6051-0000-222	E-17/M
Ohmeda® O2 cell	6051-0000-219	E-77/0
Oxiquip®	T-1/T-2	E-33/O
Oxitron®	3710	E-15/2
Oxitron®	3310	E-17/J
Oxitron®	3250	E-33/0
Oxitron®	3050	E-33/1
Pacifitech®	All	please ask Nuova for compatibles
Paragon Services®	PS-2000	E-15/2
Paragon Services®	PS-1000	E-15/O
Penlon®	MOX-3	E-77/OS
PPG Biomedical® Saracap	504055-001	E-17/M
PPG Biomedical®, Irisa	505055-001	E-15/2
Puritan Bennett® 740 Ventilator (OLD MODEL)	G-062010-00	E-75/2
Puritan Bennett® 760/840, PB2000 TEST	4-072214-0	E-16/0
Puritan Bennett® 740		E-17/A2
Puritan Bennett® 7820/7200 Vent, PB850	4-020933-00	E-17/J
Puritan Bennett ®840		E-17/M
Puritan Bennett® 840 Ventilator (OLD MODEL)		E-75/1
Respironics® Esprit/Lifecare	1001454	E-17/J
Schoch® Switzerland	T1/T2	E-33/0
Sechrist® 650	43170	E-77/0
Sensidyne®	SV-26	E-09/0
Sensidyne®	SV-14A	E-15/0
Sensidyne®	SV-20A	E-15/4
Sensidyne®	SV-11A	E-17/J
Sensidyne®	SV-12A	E-17/M
Sensidyne®	SV-25A	E-25/0
Sensidyne®	SV-01	E-33/0
Sensidyne®	SV-02	E-33/1
Sensidyne®	SV-03	E-77/0
Sensor Tec® (BPR Medica)	ST-05	E-55/O
Sensor Tec® (BPR Medical)	ST-13	E-15/0
Sensor Tec ®(BPR Medical)	ST-14	E-15/2
Sensor Tec® (BPR Medical)	ST-10	E-15/O
Sensor Tec® (BPR Medical)	ST-12	E-17/A2
Sensor Tec® (BPR Medical)	ST-11	E-17/J
Sensor Tec® (BPR Medical)	ST-12, ST-04	E-17/M
Sensor Tec® (BPR Medical)	ST-02	E-33/1
Sensor Tec® (BPR Medical)	ST-01	E-33/O
Sensor Tec® (BPR Medical)	ST-03	E-77/O
Shoch®	T-1/T-2	E-33/0
Siemens®	9004979/6419332, Ventilators 900, 900C, 900D, 700, 710, 300, V710, 600	E-17/M
SLE®	2000 older style Vent (2 pin connector)	E-75/6 ask for avail.
SLE®	5000 Vent., 3pin connector	E-75/8 ask for avail.
SLE®	T801 Monitor	E-17/J
Spacelabs® 90514 gas analyzer	015-0132-03	E-17/M
Sun Medical®		E-33/0
Taema®	Alys, Clarys, YR010100	E-15/5
Taema®	Cesar (new)	E-17/A2
Taema®	Eolo, Cesar	E-17/J
Taema®	YR 049700, Cesar 2, Horus	E-17/M
Taema®	KV050501, Oxy2100	E-33/0
Taema® Alys®, Claris®	YR 010100	E-/15/5
Teledyne®	C-41131 (R15)	E-15/0
Teledyne®	C-61339 (R23MED)	E-15/2
Teledyne®	R30MED	E-15/4
Teledyne®	TED-AX300 (R17MED)	E-15/5
Teledyne®	R22MED	E-17/A2
Teledyne®	B-62321 (R24MED)	E-17/M
Teledyne®	R24MED	E-17/M
Teledyne®	R29MED	E-25/0
Teledyne®	C1R (B 39022)	E-33/1
Teledyne®	R13MED	E-55/0
Teledyne®	R32MED	ask Nuova
Teledyne®	C2R (B 39023)	E-33/1
Teledyne®	Class C1, T1/T2, TED160, 190	E-33/0
Teledyne®	AX300/MX300	E-15/5
Teledyne® TED60T®, 191T,200T®, 200T®	A51327 (T-7)	E-77/0
Vascular Technology®	100352	E-15/0
Vascular Technology®	101372	E-15/2
Vascular Technology®	103100	E-17/M
Vasular Technology®	101272	E-15/0
Vasular Technology®	100580	E-17/J
Ventrex®	V-26	E-09/0
Ventrex®	V-14A	E-15/2
Ventrex®	V-20A	E-15/4
Ventrex®	V-11/A	E-17/J
Ventrex®	V-12A	E-17/M
Ventrex®	V-01	E-33/0
Ventrex®	V-02	E-33/1
Ventrex®	V-03	E-77/0
Ventronix®	5525, 5528, 5529	E-33/1
Ventronix®	5500, 5570, 5575, 5584, 5590, 5595	E-55/0
Versamed®	I-Vent	E-16/HTT
Viasys®	6400/8400/VIP Ventilator Sensor P/N 60030	E-17/J
Viasys®	AVEA	E-17/M
Viasys®	VELA	E-75/4
VTI®	VT1272, 101272, 100352	E-15/0
VTI®	101372, 100352	E-17/J
VTI®	103100
