4.26um窄带滤光片
　

太阳光模拟器滤光片	Semrock滤光片	Spectrogon滤光片	Chroma滤光片
Andover滤光片	Omega滤光片	Edmund滤光片	Thorlabs滤光片
荧光滤光片	长通/短通滤光片	拉曼滤光片	激光滤光片
陷波滤波片	Chroma激光滤光片	Chroma天文滤光片	可调谐滤光片

滤光片支架

酶标仪滤光片

太阳光模拟器滤光片

供应自主品牌的带通滤光片，中心波长250nm-1540nm、带宽5nm-340nm、透过率9%-93%、截止带OD1-5。该系列滤光片具有品质高端、价格合理的特点，广泛应用于：科学研究、生物医疗、生物化学、生物荧光、机器视觉。该系列光学滤光片的标准尺寸(带套圈)：Φ12.7×6、Φ25.4×6。针对特殊应用，我们可按要求提供定制服务，包括：中心波长、带宽、透过率、尺寸、截止带宽、截止深度。 　 Type Wavelength Bandwidth Transmission Type Wavelength Bandwidth Transmission 250-657nm nm nm T>% 658-1540nm nm nm T>% SF01-250/5-17 250 5 17 SF01-658/10-57 658 10 57 SF01-250/12-70 250 12 70 SF01-658/60-90 658 60 90 SF01-251/6-20 251 6 20 SF01-659/10-67 659 10 67 SF01-252/6-20 252 6 20 SF01-659/16-83 659 16 83 SF01-252/13-25 252 13 25 SF01-660/10-70 660 10 70 SF01-253/6-22 253 6 22 SF01-660/45-63 660 45 63 SF01-253/12-20 253 12 20 SF01-660/110-90 660 110 90 SF01-254/10-19 254 10 19 SF01-661/6-48 661 6 48 SF01-254/12-67 254 12 67 SF01-661/10-60 661 10 60 SF01-255/7-48 255 7 48 SF01-662/10-60 662 10 60 SF01-256/9-17 256 9 17 SF01-662/40-60 662 40 60 SF01-256/12-27 256 12 27 SF01-663/7-48 663 7 48 SF01-257/9-18 257 9 18 SF01-663/40-39 663 40 39 SF01-257/12-20 257 12 20 SF01-664/10-60 664 10 60 SF01-258/20-24 258 20 24 SF01-664/40-67 664 40 67 SF01-260/8-48 260 8 48 SF01-665/10-60 665 10 60 SF01-260/11-18 260 11 18 SF01-665/65-23 665 65 23 SF01-262/10-27 262 10 27 SF01-666/8-54 666 8 54 SF01-263/10-28 263 10 28 SF01-666/140-90 666 140 90 SF01-264/10-24 264 10 24 SF01-667/10-58 667 10 58 SF01-265/10-23 265 10 23 SF01-667/20-80 667 20 80 SF01-270/42-9 270 42 9 SF01-668/10-60 668 10 60 SF01-271/43-15 271 43 15 SF01-668/35-80 668 35 80 SF01-278/12-15 278 12 15 SF01-669/10-57 669 10 57 SF01-283/12-19 283 12 19 SF01-670/10-60 670 10 60 SF01-284/13-15 284 13 15 SF01-670/50-90 670 50 90 SF01-302/10-25 302 10 25 SF01-671/20-90 671 20 90 SF01-325/10-55 325 10 55 SF01-672/20-65 672 20 65 SF01-325/12-63 325 12 63 SF01-672/35-90 672 35 90 SF01-326/12-65 326 12 65 SF01-673/20-70 673 20 70 SF01-342/10-45 342 10 45 SF01-674/20-80 674 20 80 SF01-343/9-45 343 9 45 SF01-675/10-63 675 10 63 SF01-344/10-45 344 10 45 SF01-675/40-80 675 40 80 SF01-345/10-43 345 10 43 SF01-677/40-75 677 40 75 SF01-348/6-48 348 6 48 SF01-678/38-82 678 38 82 SF01-350/8-37 350 8 37 SF01-680/10-88 680 10 88 SF01-350/50-28 350 50 28 SF01-680/40-80 680 40 80 SF01-351/8-16 351 8 16 SF01-681/25-70 681 25 70 SF01-352/8-48 352 8 48 SF01-681/40-90 681 40 90 SF01-353/10-45 353 10 45 SF01-683/40-90 683 40 90 SF01-354/8-25 354 8 25 SF01-684/20-63 684 20 63 SF01-355/10-63 355 10 63 SF01-685/18-90 685 18 90 SF01-355/12-25 355 12 25 SF01-685/40-90 685 40 90 SF01-358/13-61 358 13 61 SF01-686/40-93 686 40 93 SF01-359/11-60 359 11 60 SF01-686/45-90 686 45 90 SF01-360/10-30 360 10 30 SF01-687/20-60 687 20 60 SF01-360/12-45 360 12 45 SF01-688/40-80 688 40 80 SF01-365/60-85 365 60 85 SF01-690/20-90 690 20 90 SF01-365/100-45 365 100 45 SF01-690/48-90 690 48 90 SF01-370/10-35 370 10 35 SF01-695/20-70 695 20 70 SF01-375/12-60 375 12 60 SF01-695/48-90 695 48 90 SF01-375/15-45 375 15 45 SF01-700/10-60 700 10 60 SF01-377/12-48 377 12 48 SF01-700/40-90 700 40 90 SF01-378/12-50 378 12 50 SF01-705/10-60 705 10 60 SF01-379/90-38 379 90 38 SF01-705/40-60 705 40 60 SF01-380/100-40 380 100 40 SF01-706/40-63 706 40 63 SF01-385/95-44 385 95 44 SF01-707/12-64 707 12 64 SF01-385/100-45 385 100 45 SF01-707/17-64 707 17 64 SF01-390/10-52 390 10 52 SF01-710/6-50 710 6 50 SF01-398/7-60 398 7 60 SF01-710/40-85 710 40 85 SF01-400/8-52 400 8 52 SF01-715/17-56 715 17 56 SF01-400/10-60 400 10 60 SF01-717/40-90 717 40 90 SF01-403/9-52 403 9 52 SF01-720/12-75 720 12 75 SF01-403/10-45 403 10 45 SF01-720/40-90 720 40 90 SF01-405/8-60 405 8 60 SF01-725/13-63 725 13 63 SF01-405/40-80 405 40 80 SF01-730/10-70 730 10 70 SF01-406/11-60 406 11 60 SF01-730/20-60 730 20 60 SF01-407/10-59 407 10 59 SF01-735/20-80 735 20 80 SF01-408/11-62 408 11 62 SF01-740/12-56 740 12 56 SF01-410/8-50 410 8 50 SF01-740/290-90 740 290 90 SF01-410/20-60 410 20 60 SF01-742/12-56 742 12 56 SF01-411/20-70 411 20 70 SF01-745/12-56 745 12 56 SF01-415/8-70 415 8 70 SF01-745/290-90 745 290 90 SF01-415/55-91 415 55 91 SF01-747/12-56 747 12 56 SF01-416/7-73 416 7 73 SF01-748/12-63 748 12 63 SF01-417/7-70 417 7 70 SF01-750/10-60 750 10 60 SF01-417/8-72 417 8 72 SF01-750/50-67 750 50 67 SF01-418/7-72 418 7 72 SF01-750/340-90 750 340 90 SF01-418/8-70 418 8 70 SF01-755/50-67 755 50 67 SF01-420/10-58 420 10 58 SF01-760/12-56 760 12 56 SF01-420/40-70 420 40 70 SF01-760/50-85 760 50 85 SF01-422/10-67 422 10 67 SF01-760/340-90 760 340 90 SF01-423/7-84 423 7 84 SF01-763/20-67 763 20 67 SF01-423/8-77 423 8 77 SF01-765/12-60 765 12 60 SF01-424/8-76 424 8 76 SF01-765/50-80 765 50 80 SF01-424/12-69 424 12 69 SF01-769/12-65 769 12 65 SF01-425/7-82 425 7 82 SF01-770/12-85 770 12 85 SF01-425/35-63 425 35 63 SF01-770/50-80 770 50 80 SF01-435/9-65 435 9 65 SF01-775/12-60 775 12 60 SF01-435/10-55 435 10 55 SF01-775/18-90 775 18 90 SF01-440/8-65 440 8 65 SF01-780/10-68 780 10 68 SF01-440/50-88 440 50 88 SF01-780/50-67 780 50 67 SF01-440/100-85 440 100 85 SF01-783/20-62 783 20 62 SF01-441/9-65 441 9 65 SF01-783/126-90 783 126 90 SF01-442/10-60 442 10 60 SF01-785/10-48 785 10 48 SF01-442/47-90 442 47 90 SF01-785/40-67 785 40 67 SF01-443/50-88 443 50 88 SF01-786/10-63 786 10 63 SF01-444/47-90 444 47 90 SF01-787/20-63 787 20 63 SF01-444/50-92 444 50 92 SF01-787/30-67 787 30 67 SF01-445/10-80 445 10 80 SF01-788/20-63 788 20 63 SF01-445/50-88 445 50 88 SF01-788/35-60 788 35 60 SF01-445/103-93 445 103 93 SF01-789/20-63 789 20 63 SF01-446/45-70 446 45 70 SF01-790/15-64 790 15 64 SF01-446/125-91 446 125 91 SF01-790/40-63 790 40 63 SF01-447/10-80 447 10 80 SF01-792/30-85 792 30 85 SF01-447/12-60 447 12 60 SF01-794/35-60 794 35 60 SF01-448/10-60 448 10 60 SF01-795/10-70 795 10 70 SF01-449/10-60 449 10 60 SF01-795/40-63 795 40 63 SF01-450/8-60 450 8 60 SF01-796/20-80 796 20 80 SF01-450/50-88 450 50 88 SF01-796/30-67 796 30 67 SF01-450/100-80 450 100 80 SF01-799/30-85 799 30 85 SF01-452/11-56 452 11 56 SF01-800/10-80 800 10 80 SF01-452/100-80 452 100 80 SF01-800/40-66 800 40 66 SF01-455/11-60 455 11 60 SF01-800/240-95 800 240 95 SF01-455/50-88 455 50 88 SF01-801/12-62 801 12 62 SF01-458/11-52 458 11 52 SF01-801/30-91 801 30 91 SF01-460/10-60 460 10 60 SF01-802/35-63 802 35 63 SF01-460/25-58 460 25 58 SF01-803/30-85 803 30 85 SF01-462/15-90 462 15 90 SF01-804/15-75 804 15 75 SF01-463/22-75 463 22 75 SF01-804/40-63 804 40 63 SF01-464/15-70 464 15 70 SF01-805/20-90 805 20 90 SF01-465/13-56 465 13 56 SF01-805/40-80 805 40 80 SF01-465/55-90 465 55 90 SF01-806/15-75 806 15 75 SF01-468/10-70 468 10 70 SF01-807/20-77 807 20 77 SF01-468/50-90 468 50 90 SF01-807/40-63 807 40 63 SF01-469/8-65 469 8 65 SF01-808/10-80 808 10 80 SF01-469/10-57 469 10 57 SF01-808/40-80 808 40 80 SF01-470/9-43 470 9 43 SF01-810/11-75 810 11 75 SF01-470/35-90 470 35 90 SF01-810/40-66 810 40 66 SF01-471/9-72 471 9 72 SF01-811/30-85 811 30 85 SF01-471/13-60 471 13 60 SF01-812/30-63 812 30 63 SF01-472/13-58 472 13 58 SF01-812/37-63 812 37 63 SF01-473/10-54 473 10 54 SF01-813/20-70 813 20 70 SF01-473/13-62 473 13 62 SF01-813/40-63 813 40 63 SF01-474/14-60 474 14 60 SF01-814/15-52 814 15 52 SF01-475/10-56 475 10 56 SF01-814/35-63 814 35 63 SF01-475/15-63 475 15 63 SF01-815/15-48 815 15 48 SF01-476/20-90 476 20 90 SF01-815/40-90 815 40 90 SF01-477/5-55 477 5 55 SF01-816/20-85 816 20 85 SF01-477/35-90 477 35 90 SF01-816/30-90 816 30 90 SF01-480/10-61 480 10 61 SF01-817/30-90 817 30 90 SF01-480/40-61 480 40 61 SF01-818/40-85 818 40 85 SF01-482/10-58 482 10 58 SF01-820/20-90 820 20 90 SF01-482/18-80 482 18 80 SF01-820/90-66 820 90 66 SF01-483/10-62 483 10 62 SF01-820/200-90 820 200 90 SF01-484/10-56 484 10 56 SF01-822/9-51 822 9 51 SF01-484/15-60 484 15 60 SF01-822/20-85 822 20 85 SF01-485/9-75 485 9 75 SF01-823/30-63 823 30 63 SF01-485/110-90 485 110 90 SF01-825/10-80 825 10 80 SF01-486/9-50 486 9 50 SF01-825/110-90 825 110 90 SF01-486/10-63 486 10 63 SF01-825/200-95 825 200 95 SF01-487/8-65 487 8 65 SF01-828/40-60 828 40 60 SF01-487/10-60 487 10 60 SF01-830/10-80 830 10 80 SF01-488/9-60 488 9 60 SF01-830/170-90 830 170 90 SF01-488/10-70 488 10 70 SF01-832/30-67 832 30 67 SF01-489/9-65 489 9 65 SF01-833/30-60 833 30 60 SF01-489/10-58 489 10 58 SF01-833/43-85 833 43 85 SF01-490/9-67 490 9 67 SF01-835/20-80 835 20 80 SF01-490/18-80 490 18 80 SF01-835/30-90 835 30 90 SF01-492/8-63 492 8 63 SF01-840/20-85 840 20 85 SF01-493/8-51 493 8 51 SF01-840/50-90 840 50 90 SF01-495/8-50 495 8 50 SF01-841/20-75 841 20 75 SF01-495/20-70 495 20 70 SF01-842/10-51 842 10 51 SF01-500/10-60 500 10 60 SF01-842/20-85 842 20 85 SF01-500/40-90 500 40 90 SF01-843/20-80 843 20 80 SF01-504/15-67 504 15 67 SF01-843/50-88 843 50 88 SF01-505/10-60 505 10 60 SF01-844/20-85 844 20 85 SF01-505/16-64 505 16 64 SF01-845/10-80 845 10 80 SF01-506/16-68 506 16 68 SF01-845/50-90 845 50 90 SF01-506/35-90 506 35 90 SF01-846/10-48 846 10 48 SF01-507/10-60 507 10 60 SF01-847/20-80 847 20 80 SF01-507/16-68 507 16 68 SF01-847/45-90 847 45 90 SF01-508/9-63 508 9 63 SF01-848/50-90 848 50 90 SF01-508/15-60 508 15 60 SF01-849/20-75 849 20 75 SF01-509/16-65 509 16 65 SF01-850/10-80 850 10 80 SF01-510/10-60 510 10 60 SF01-850/60-85 850 60 85 SF01-510/35-63 510 35 63 SF01-851/15-57 851 15 57 SF01-515/10-85 515 10 85 SF01-852/20-90 852 20 90 SF01-515/50-88 515 50 88 SF01-853/30-60 853 30 60 SF01-516/35-67 516 35 67 SF01-855/14-60 855 14 60 SF01-517/35-90 517 35 90 SF01-855/50-90 855 50 90 SF01-518/50-90 518 50 90 SF01-856/20-90 856 20 90 SF01-520/10-80 520 10 80 SF01-857/20-85 857 20 85 SF01-520/60-80 520 60 80 SF01-858/20-75 858 20 75 SF01-524/17-75 524 17 75 SF01-858/30-65 858 30 65 SF01-525/6-85 525 6 85 SF01-859/10-40 859 10 40 SF01-525/50-90 525 50 90 SF01-859/15-56 859 15 56 SF01-527/10-70 527 10 70 SF01-860/20-86 860 20 86 SF01-527/17-80 527 17 80 SF01-860/40-80 860 40 80 SF01-528/15-75 528 15 75 SF01-861/25-62 861 25 62 SF01-528/18-75 528 18 75 SF01-862/20-80 862 20 80 SF01-529/20-90 529 20 90 SF01-862/25-60 862 25 60 SF01-530/10-60 530 10 60 SF01-863/25-63 863 25 63 SF01-530/60-85 530 60 85 SF01-863/40-85 863 40 85 SF01-531/17-72 531 17 72 SF01-864/20-52 864 20 52 SF01-531/50-90 531 50 90 SF01-864/25-61 864 25 61 SF01-532/8-70 532 8 70 SF01-865/20-88 865 20 88 SF01-532/50-90 532 50 90 SF01-865/40-80 865 40 80 SF01-535/8-75 535 8 75 SF01-866/10-54 866 10 54 SF01-535/50-80 535 50 80 SF01-866/25-67 866 25 67 SF01-535/150-65 535 150 65 SF01-870/20-70 870 20 70 SF01-537/45-90 537 45 90 SF01-870/40-85 870 40 85 SF01-540/10-67 540 10 67 SF01-873/20-59 873 20 59 SF01-540/60-85 540 60 85 SF01-874/15-60 874 15 60 SF01-541/40-84 541 40 84 SF01-875/10-80 875 10 80 SF01-542/9-60 542 9 60 SF01-875/40-80 875 40 80 SF01-542/40-65 542 40 65 SF01-876/30-90 876 30 90 SF01-544/10-56 544 10 56 SF01-877/15-62 877 15 62 SF01-544/40-85 544 40 85 SF01-878/15-35 878 15 35 SF01-545/20-63 545 20 63 SF01-878/40-52 878 40 52 SF01-545/60-85 545 60 85 SF01-880/10-50 880 10 50 SF01-546/11-46 546 11 46 SF01-880/40-75 880 40 75 SF01-546/18-90 546 18 90 SF01-881/30-90 881 30 90 SF01-547/10-60 547 10 60 SF01-882/40-90 882 40 90 SF01-547/12-45 547 12 45 SF01-883/40-62 883 40 62 SF01-548/10-70 548 10 70 SF01-885/10-75 885 10 75 SF01-548/35-90 548 35 90 SF01-885/40-90 885 40 90 SF01-550/9-60 550 9 60 SF01-890/15-51 890 15 51 SF01-550/40-80 550 40 80 SF01-890/40-90 890 40 90 SF01-550/70-80 550 70 80 SF01-895/15-45 895 15 45 SF01-551/13-55 551 13 55 SF01-895/40-60 895 40 60 SF01-552/10-70 552 10 70 SF01-900/10-80 900 10 80 SF01-552/38-75 552 38 75 SF01-900/40-60 900 40 60 SF01-553/10-63 553 10 63 SF01-905/20-90 905 20 90 SF01-553/40-80 553 40 80 SF01-905/40-60 905 40 60 SF01-554/114-67 554 114 67 SF01-905/130-85 905 130 85 SF01-555/9-60 555 9 60 SF01-910/20-85 910 20 85 SF01-555/44-67 555 44 67 SF01-910/40-60 910 40 60 SF01-555/90-85 555 90 85 SF01-912/30-70 912 30 70 SF01-556/12-46 556 12 46 SF01-915/30-85 915 30 85 SF01-556/13-60 556 13 60 SF01-920/30-90 920 30 90 SF01-558/80-90 558 80 90 SF01-920/80-90 920 80 90 SF01-560/8-65 560 8 65 SF01-922/30-80 922 30 80 SF01-560/40-67 560 40 67 SF01-922/50-85 922 50 85 SF01-560/80-90 560 80 90 SF01-925/10-80 925 10 80 SF01-560/120-90 560 120 90 SF01-925/30-90 925 30 90 SF01-562/10-52 562 10 52 SF01-926/30-80 926 30 80 SF01-564/20-85 564 20 85 SF01-927/30-85 927 30 85 SF01-565/9-50 565 9 50 SF01-930/20-78 930 20 78 SF01-565/15-88 565 15 88 SF01-930/55-67 930 55 67 SF01-565/40-90 565 40 90 SF01-932/30-85 932 30 85 SF01-566/7-52 566 7 52 SF01-932/50-90 932 50 90 SF01-567/10-75 567 10 75 SF01-935/20-57 935 20 57 SF01-568/10-56 568 10 56 SF01-935/55-67 935 55 67 SF01-570/10-60 570 10 60 SF01-937/30-85 937 30 85 SF01-570/25-60 570 25 60 SF01-938/40-56 938 40 56 SF01-571/10-46 571 10 46 SF01-940/10-80 940 10 80 SF01-572/9-48 572 9 48 SF01-940/55-67 940 55 67 SF01-572/10-56 572 10 56 SF01-944/17-63 944 17 63 SF01-573/10-42 573 10 42 SF01-944/30-75 944 30 75 SF01-574/10-50 574 10 50 SF01-945/10-80 945 10 80 SF01-574/25-75 574 25 75 SF01-945/40-63 945 40 63 SF01-575/10-90 575 10 90 SF01-948/18-60 948 18 60 SF01-575/35-90 575 35 90 SF01-948/30-85 948 30 85 SF01-576/10-46 576 10 46 SF01-950/10-70 950 10 70 SF01-576/13-70 576 13 70 SF01-950/50-87 950 50 87 SF01-577/8-54 577 8 54 SF01-952/30-80 952 30 80 SF01-579/12-60 579 12 60 SF01-955/20-63 955 20 63 SF01-579/13-66 579 13 66 SF01-955/40-90 955 40 90 SF01-580/10-52 580 10 52 SF01-956/15-70 956 15 70 SF01-580/70-90 580 70 90 SF01-957/30-80 957 30 80 SF01-581/13-64 581 13 64 SF01-958/15-38 958 15 38 SF01-585/10-75 585 10 75 SF01-960/20-52 960 20 52 SF01-585/35-90 585 35 90 SF01-960/40-63 960 40 63 SF01-585/140-85 585 140 85 SF01-965/16-80 965 16 80 SF01-587/20-65 587 20 65 SF01-965/55-63 965 55 63 SF01-590/12-70 590 12 70 SF01-970/16-63 970 16 63 SF01-590/35-90 590 35 90 SF01-970/55-63 970 55 63 SF01-590/100-90 590 100 90 SF01-973/16-75 973 16 75 SF01-592/12-70 592 12 70 SF01-975/10-75 975 10 75 SF01-594/15-80 594 15 80 SF01-975/80-85 975 80 85 SF01-595/10-50 595 10 50 SF01-978/20-52 978 20 52 SF01-595/150-85 595 150 85 SF01-980/10-70 980 10 70 SF01-600/10-80 600 10 80 SF01-980/80-90 980 80 90 SF01-600/30-70 600 30 70 SF01-981/40-67 981 40 67 SF01-605/20-90 605 20 90 SF01-985/16-52 985 16 52 SF01-607/10-72 607 10 72 SF01-985/40-63 985 40 63 SF01-607/20-90 607 20 90 SF01-986/40-56 986 40 56 SF01-608/10-60 608 10 60 SF01-987/40-66 987 40 66 SF01-610/10-80 610 10 80 SF01-988/30-60 988 30 60 SF01-610/20-90 610 20 90 SF01-990/8-35 990 8 35 SF01-612/8-64 612 8 64 SF01-990/40-85 990 40 85 SF01-614/21-80 614 21 80 SF01-993/30-60 993 30 60 SF01-615/10-52 615 10 52 SF01-994/25-71 994 25 71 SF01-615/35-90 615 35 90 SF01-995/38-60 995 38 60 SF01-617/25-95 617 25 95 SF01-995/40-63 995 40 63 SF01-618/30-90 618 30 90 SF01-996/30-60 996 30 60 SF01-620/7-54 620 7 54 SF01-997/20-60 997 20 60 SF01-620/13-60 620 13 60 SF01-1000/10-70 1000 10 70 SF01-621/13-72 621 13 72 SF01-1000/40-63 1000 40 63 SF01-622/10-52 622 10 52 SF01-1002/15-50 1002 15 50 SF01-622/45-85 622 45 85 SF01-1002/20-66 1002 20 66 SF01-623/10-48 623 10 48 SF01-1005/20-55 1005 20 55 SF01-623/25-60 623 25 60 SF01-1005/40-63 1005 40 63 SF01-624/10-55 624 10 55 SF01-1006/20-59 1006 20 59 SF01-624/15-70 624 15 70 SF01-1008/15-55 1008 15 55 SF01-625/10-63 625 10 63 SF01-1008/40-63 1008 40 63 SF01-625/40-80 625 40 80 SF01-1010/40-60 1010 40 60 SF01-626/15-64 626 15 64 SF01-1015/20-60 1015 20 60 SF01-627/10-63 627 10 63 SF01-1015/40-60 1015 40 60 SF01-627/15-70 627 15 70 SF01-1016/40-55 1016 40 55 SF01-628/13-69 628 13 69 SF01-1018/17-60 1018 17 60 SF01-628/15-70 628 15 70 SF01-1018/30-60 1018 30 60 SF01-630/8-50 630 8 50 SF01-1022/10-60 1022 10 60 SF01-630/80-50 630 80 50 SF01-1023/40-45 1023 40 45 SF01-630/120-80 630 120 80 SF01-1025/10-80 1025 10 80 SF01-631/15-70 631 15 70 SF01-1031/10-60 1031 10 60 SF01-631/50-85 631 50 85 SF01-1034/10-62 1034 10 62 SF01-632/10-85 632 10 85 SF01-1034/40-60 1034 40 60 SF01-632/50-70 632 50 70 SF01-1037/10-60 1037 10 60 SF01-633/10-85 633 10 85 SF01-1040/11-47 1040 11 47 SF01-633/20-52 633 20 52 SF01-1045/11-56 1045 11 56 SF01-635/10-80 635 10 80 SF01-1046/10-80 1046 10 80 SF01-635/50-85 635 50 85 SF01-1050/10-80 1050 10 80 SF01-636/10-52 636 10 52 SF01-1050/15-48 1050 15 48 SF01-636/35-80 636 35 80 SF01-1052/17-80 1052 17 80 SF01-637/18-80 637 18 80 SF01-1053/10-55 1053 10 55 SF01-637/20-70 637 20 70 SF01-1053/15-60 1053 15 60 SF01-638/10-60 638 10 60 SF01-1054/17-65 1054 17 65 SF01-638/35-85 638 35 85 SF01-1055/11-54 1055 11 54 SF01-639/10-65 639 10 65 SF01-1055/17-50 1055 17 50 SF01-639/15-65 639 15 65 SF01-1056/17-58 1056 17 58 SF01-640/10-52 640 10 52 SF01-1057/12-55 1057 12 55 SF01-640/50-85 640 50 85 SF01-1057/20-60 1057 20 60 SF01-642/15-75 642 15 75 SF01-1058/17-65 1058 17 65 SF01-643/10-62 643 10 62 SF01-1058/20-40 1058 20 40 SF01-643/40-67 643 40 67 SF01-1059/17-70 1059 17 70 SF01-645/10-52 645 10 52 SF01-1060/10-50 1060 10 50 SF01-645/40-90 645 40 90 SF01-1060/18-50 1060 18 50 SF01-647/40-52 647 40 52 SF01-1062/18-53 1062 18 53 SF01-647/45-80 647 45 80 SF01-1064/10-45 1064 10 45 SF01-648/10-58 648 10 58 SF01-1064/20-40 1064 20 40 SF01-648/11-62 648 11 62 SF01-1065/15-70 1065 15 70 SF01-649/17-60 649 17 60 SF01-1066/15-48 1066 15 48 SF01-650/8-50 650 8 50 SF01-1067/20-50 1067 20 50 SF01-650/45-63 650 45 63 SF01-1069/10-70 1069 10 70 SF01-650/160-90 650 160 90 SF01-1069/12-22 1069 12 22 SF01-651/22-85 651 22 85 SF01-1070/10-75 1070 10 75 SF01-652/11-65 652 11 65 SF01-1070/20-50 1070 20 50 SF01-652/35-80 652 35 80 SF01-1071/10-75 1071 10 75 SF01-653/16-87 653 16 87 SF01-1073/14-72 1073 14 72 SF01-653/100-85 653 100 85 SF01-1075/10-80 1075 10 80 SF01-654/15-60 654 15 60 SF01-1075/20-50 1075 20 50 SF01-654/35-80 654 35 80 SF01-1080/15-52 1080 15 52 SF01-655/10-75 655 10 75 SF01-1080/20-50 1080 20 50 SF01-655/65-23 655 65 23 SF01-1085/15-51 1085 15 51 SF01-656/6-48 656 6 48 SF01-1085/20-52 1085 20 52 SF01-656/40-89 656 40 89 SF01-1087/20-45 1087 20 45 SF01-656/100-85 656 100 85 SF01-1090/15-45 1090 15 45 SF01-657/10-60 657 10 60 SF01-1090/20-50 1090 20 50 SF01-657/40-63 657 40 63 SF01-1540/75-70 1540 75 70

供应Semrock滤光片，该系列Semrock滤光片采用硬镀膜以防热变形，具有优秀的光学特性。无特别说明情况下，所有滤光片都配有直径25mm圆形氧化铝安装套筒，保证通光孔径不小于21mm。Semrock滤光片，享受如下服务条款：5年质保期、30天替换。我们也提供定制服务，时间一周。 BrightLine® Single-band Bandpass Filters FF01-473/10-25，中心波长473nm，带宽10nm，外径25mm。 　 Hg01-254-25         FF01-260/16-25     FF01-280/10-25     FF01-280/20-25     FF01-285/14-25     FF01-292/27-25 FF01-315/15-25     FF01-320/40-25     FF01-335/7-25       FF01-340/12-25     FF01-340/26-25     FF01-355/40-25 FF01-357/44-25     FF01-360/12-25     Hg01-365-25         FF01-370/6-25       FF01-370/10-25     FF01-370/36-25 FF01-375/6-25       FF01-376/20-25     FF01-377/50-25     FF01-379/34-25     FF01-380/14-25     FF01-386/23-25 FF01-387/11-25     FF01-390/18-25     FF01-390/40-25     FF01-395/11-25     LD01-405/10-25    FF01-405/10-25 FF01-406/15-25     FF01-407/17-25     FF01-414/46-25     FF01-417/60-25     FF01-425/30-25     FF01-427/10-25 FF01-434/17-25     FF01-435/40-25     FF02-438/24-25     LD01-439/8-25      FF01-439/154-25   FF01-440/40-25 FF01-442/46-25     FF01-445/20-25     FF01-445/45-25     FF02-447/60-25     FF01-448/20-25     FF01-452/45-25 FF01-457/50-25     FF01-460/60-25     FF02-460/80-25     FF01-465/30-25     FF01-466/40-25     FF01-469/35-25 FF01-470/22-25     FF01-470/28-25     FF02-472/30-25     FF01-473/10-25     FF01-474/23-25     FF01-475/20-25 FF01-475/23-25     FF01-475/28-25     FF01-475/35-25     FF01-475/42-25     FF02-475/50-25     FF01-479/40-25 FF01-480/17-25     FF02-482/18-25     FF01-482/25-25     FF01-482/35-25     FF01-483/32-25     FF02-485/20-25 FF01-488/6-25       FF01-494/20-25     FF01-494/41-25     FF01-497/16-25     FF01-500/15-25     FF01-500/24-255 FF01-504/12-25     FF02-510/10-25     FF02-510/20-25     FF01-510/42-25     FF01-510/84-25     FF01-512/25-25 FF01-513/17-25     FF01-514/30-25     FF01-517/20-25     FF01-520/15-255   FF02-520/28-25     FF01-520/35-25 FF01-520/44-25     FF01-523/20-25     FF01-524/24-25     FF01-525/15-25     FF01-525/20-25     FF01-525/30-25 FF01-525/39-25     FF02-525/40-25     FF01-525/45-25     FF03-525/50-25     FF01-527/20-255   FF01-529/24-25 FF01-529/28-25    FF01-530/11-25    FF01-530/43-25    FF01-530/55-25   FF01-530/200-25-D    FF01-531/22-25 FF01-531/40-25     FF01-531/46-25     FF01-534/20-25     FF02-534/30-25     FF01-534/42-25     FF01-535/22-25 FF01-536/40-25     FF01-537/26-25     FF01-538/40-25     FF01-540/15-25     FF01-540/50-25     FF01-542/20-25 FF01-542/27-25     FF01-542/50-25     FF01-543/22-25     FF01-545/55-25     FF01-546/6-25       FF01-549/15-25 FF01-550/32-25     FF01-550/49-25     FF01-550/88-25     FF01-556/20-25     FF01-558/20-25     FF01-559/34-25 FF01-560/14-25     FF01-560/25-25     FF01-561/4-25       FF01-561/14-25     FF01-562/40-25     FF01-563/9-25 FF01-565/24-25     FF01-567/15-25     FF01-572/15-25     FF01-572/28-25     FF01-574/19-25     FF01-575/15-25 FF02-575/25-25     FF01-576/10-25     FF01-578/16-25     FF01-578/105-25   FF01-579/34-25     FF01-580/14-25 FF01-580/23-25     FF01-580/60-25-D FF01-582/15-25     FF01-582/75-25     FF01-583/22-25     FF01-585/29-25 FF01-585/40-25  FF01-586/15-25   FF01-586/20-25x3.5   FF01-586/20-25x5   FF01-587/11-25   FF01-587/35-25 FF01-588/21-25     FF01-589/15-25     FF01-589/18-25     FF01-590/10-25     FF01-590/20-25     FF01-592/8-25 FF01-593/40-25     FF01-593/46-25     FF01-600/14-25     FF01-600/37-25     FF01-605/15-25     FF01-605/64-25 FF01-607/36-25     FF01-607/70-25     FF01-609/54-25     FF01-609/57-25     FF01-609/181-25   FF01-612/-69-25 FF01-615/20-25     FF01-615/24-25     FF01-615/45-25     FF01-617/73-25     FF01-620/14-25     FF01-620/52-25 FF01-623/18-25     FF01-624/40-25     FF01-625/15-25     FF01-625/20-25     FF01-625/26-25     FF01-628/32-25 FF01-628/40-25     FF01-629/53-25     FF01-629/56-25     FF01-630/20-25     FF01-630/69-25     FF01-630/92-25 FF01-631/36-25     FF01-632/22-25     FF01-636/8-25       FF01-640/14-25     LD01-640/8-25      FF01-641/75-25 FF01-642/10-25     FF01-647/57-25     FF01-650/13-25     FF01-655/15-25     FF01-655/40-25     FF01-660/13-25 FF01-661/11-25     FF01-661/20-25     FF01-670/30-25     FF01-675/67-25     FF01-676/29-25     FF01-676/37-25 FF01-677/20-25     FF01-680/13-25     FF01-680/26-25     FF01-680/30-25     FF02-684/24-25     FF01-685/40-25 FF01-688/31-25     FF01-690/14-25     FF01-692/40-25     FF01-697/58-25     FF01-697/75-25-D FF01-700/13-25 FF01-708/75-25     FF01-710/40-25     FF01-711/25-25     FF01-716/40-2       FF01-716/43-25     FF01-720/13-25 FF01-731/137-25   FF01-732/68-25     FF01-736/128-25   FF01-740/13-25     FF01-747/33-25     FF01-760/12-25 FF01-769/41-25     FF01-775/46-25     FF01-780/12-25     LD01-785/10-25    FF01-785/62-25     FF01-786/22-25 FF01-794/160-25   FF01-800/12-25     FF02-809/81-25     FF01-820/12-25     FF01-832/37-25     FF01-840/12-25 FF01-842/56-25     FF01-855/210-25   FF01-857/30-25     FF01-910/5-25       FF01-924/10-25     FF01-1060/13-25 NIR01-1535/3-25   NIR01-1550/3-25   NIR01-1570/3-25

Spectrogon滤光片


供应瑞典Spectrogon公司的滤光片，包括：带通滤光片、窄带滤光片、宽带滤光片、长通滤光片、短通滤光片、中性密度滤光片，光谱波段范围涵盖：紫外、可见、近红外、中红外。
　

供应Chroma荧光滤光片，包括：激发滤光片、二色镜、辐射滤光片、中性滤光片。Chroma滤光片应用广泛，包括：荧光显微镜、生物医疗仪器、激光仪器、拉曼光谱、天文学、光谱测量。针对您的应用需求，我们提供产品选型、技术支持和定制服务。 　 Excitation Filters of Widefield Microscopy 51000x D405/40x D560/40x ET577/25x-PF HQ580/20x 51001x D410/30x E460SPUVv2 ET580/25x HQ581/10x 51003x D410/40x E460SPUVv2 ET605/50x HQ590/55x 51004v2x D415/30x ET340x ET620/60x HQ602/13x 51006x D425/40x ET360/40x-PF ET630/20x HQ615/45x 51007x D425/60x ET376/30x ET640/30x HQ620/60x 51008x D436/10x ET380x ET645/30x HQ622/36x 51013x D436/20x ET402/15x ET645/30x-PF HQ630/20x 51017x D440/10x ET402/15x-PF ET650/45x HQ650/45x 51018x D440/20x ET405/10x ET710/75x HQ665/45x 51019x D450/50x ET405/20x ET740/40x HQ682/12x 51022x D455/70x ET430/24x ET775/50x HQ740/35x 59004x D470/20x ET430/24x-PF GG420+Polarizer+KG5 HQ782/20x 59009x D470/30x ET436/20x HQ405/20x S380/30x 59017x D470/40x ET445/30x HQ440/40x S395/10x 59022x D480/20x ET470/40x HQ450/50x S395/40x 59026x D480/30x ET480/20x HQ470/30x S403/12x 61000v2x D480/60x ET480/40x HQ470/40x S430/25x 61002x D480/60x ET482/28x HQ471/39x S436/10x 61008x D485/25x ET485/20x HQ480/20x S460/20x 69000x D485/25x ET490/20x HQ480/40x S480/20x 69002x D490/10x ET490/20x-PF HQ485/15x S480/25x 69008x D490/10x ET490/20x-PF HQ493/16x S484/15x 69010x D495/10x ET495/25x HQ495/30x S485/25x 69011x D495/10x ET500/20x HQ500/20x S490/20x 81102x D510/25x ET500/20x-PF HQ500/35x S492/18x 82102x D510/25x ET530/30x HQ500/40x S500/20x 82103x D515/30x ET545/25x HQ530/30x S501/16x 83102x D515/30x ET545/30x HQ535/50x S510/20x 83103x D530/20x ET546/10x HQ540/40x S523/20x 89082dbx D530/20x ET546/22x HQ545/30x S545/30x 89082tbx D535/25x ET548/10x HQ546/11x S555/25x 89083dbx D535/25x ET550/15x HQ548/20x S555/28x 89083tbx D535/50x ET555/20x HQ555/28x S565/25x 89101x D535/50x ET555/25x HQ560/40x S568/24x AT350/50x D540/25x ET555/25x-PF HQ560/55x S572/23x D365/10x D540/25x ET560/40x HQ565/30x S580/20x D380/30x D546/10x ET572/35x HQ570/20x S622/36x D390/70x D546/10x ET572/35x-PF HQ575/50x S635/20x D395/40x D560/40x ET577/25x HQ580/13x S654/24x 　 Emission Filters of Widefield Microscopy 35001v2m 69008m E420lpv2 ET590/33m HQ580/14m 35002m 69010m E420lpv2 ET590/50m HQ600/50m 51000m 69010m E455lpv2 ET590lp HQ600lp 51000m 69011m E455lpv2 ET595/50m HQ605/75m 51001m 69011m E475lpv2 ET600/50m HQ610/75m 51001m 81101m E475lpv2 ET605/52m HQ617/40m 51003m 82101m E500lp ET605/70m HQ620/60m 51003m 83101m E500lp ET610/75m HQ630/60m 51004v2m 84101m E515lpv2 ET610lp HQ631/23m 51004v2m 88101m E515lpv2 ET620/60m HQ640/50m 51005m 89082m E550lp ET625/30m HQ645/75m 51005m 89083m E550lp ET630/75m HQ665/65m 51006m 89101m E570lpv2 ET632/60m HQ667/30m 51006m D405/30m E570lpv2 ET645/75m HQ679/60m 51007m D460/50m E580lp ET655lp HQ700/75m 51007m D470/38m E580lp ET655lp-TRF HQ710/50m 51008m D470/40m E590lpv2 ET665lp HQ721/42m 51008m D470/40m-AR E590lpv2 ET667/30m HQ725/50m 51013m D480/30m E610lpv2 ET670/50m HQ795/50m 51013m D480/40m E610lpv2 ET690/50m HQ817/25m 51017m D485/25m ET425lp ET700/50m KG1 51017m D485/40m ET450/50m ET700/75m Polarizer 51018m D505/40m ET455/50m ET705/72m S445/40m 51018m D510/40m ET460/36m ET720/60m S450/30m 51019m D525/40m ET460/50m ET780lp S457/17m 51019m D535/25m ET470/24m ET810/90m S457/50m 51022m D535/30m ET480/30m ET845/55m S460/36m 51022m D535/38m ET480/40m HQ430lp S465/30m 59004m D535/40m ET500/40m HQ460/40m S470/30m 59004m D540/40m ET500lp HQ485lp S475/20m 59009m D540/50m ET510/20m HQ500/40m S480/40m 59009m D565/40m ET510/80m HQ510/20m S500/22m 59017m D580/25m ET510lp HQ510/50m S517/30m 59017m D580/30m ET520/40m HQ510lp S520/30m 59022m D585/40m ET520LP HQ515/30m S525/40m 59022m D605/40m ET525/36m HQ520/40m S528/38m 59026m D605/54m ET525/50m HQ520lp S530/35m 59026m D605/55m ET525lp HQ522/40m S535/30m 59207m D620/40m ET535/30m HQ525/50m S535/50m 59207m D620/60m ET535/50m HQ527/30m S550/50m 61000v2m D630/60m ET537/29m HQ530/30m S560/50m 61000v2m D640/25m ET542lp HQ535/30m S568/50m 61002m D655/40m ET545/40m HQ535/48m S605/40m 61002m D660/50m ET570lp HQ535/50m S610/40m 61008m D705/40m ET572/23m HQ545/50m S617/73m 69000m D755/40m ET575/40m HQ550/40m S620/60m 69000m D800/50m ET575/50m HQ560/50m S630/60m 69002m D850/40m ET575lp HQ565/18m S685/40m 69002m E400lpv2 ET585/40m HQ567/15m S700/75m 69008m E400lpv2 ET585/65m HQ572lp S710/60m 　 Dichroic Mirrors of Widefield Microscopy 380dclp 51000bs 69008bs 89019bs Q647lp 380dclp 51001bs 69010bs 89019bs Q649lp 400dclp 51003bs 69011bs 89021bs Q695lp 400dclp 51004v2bs 81100bs 89021bs Q697lp 400dclp-AR 51005bs 82100bs 89022bs Q765lp 400dclp-AR 51006bs 83100bs 89022bs Q800lp 420dclp 51007bs 84100bs 89082bs T400lp 420dclp 51008bs 86001bs 89082bs T425lpxr 425dclp 51013bs 86002v1bs 89083bs T455lp 425dclp 51017bs 86002v2bs 89083bs T470lpxr 425dcxr 51018bs 86003bs 89100bs T495lpxr 425dcxr 51019bs 86004v1bs 89100bs T495lpxt 440dclp 51022bs 86004v2bs Q470lp T510lpxrxt 440dclp 540dclp 86005bs Q480lp T550LPXR 440dcxt 565dcxr 86006bs Q495lp T556lpxr 440dcxt 565dcxt 86007bs Q497lp T560lpxr 450dcxt 59004bs 86008bs Q507lp T562lpxr 450dcxt 59009bs 86009bs Q515lp T565lpxr 455dclp 59017bs 86011bs Q516lp T570lp 455dclp 59022bs 86012bs Q525lp T585lpxr 455dcxt 59026bs 86100bs Q553lp T590lpxr 460dclp 590dclp 88100bs Q557lp T600lpxr 470dcxr 59207bs 89002bs Q565lp-AR T635lpxr 470dcxru 61000v2bs 89006bs Q570lp T647lpxr 475dcxru 61002bs 89007bs Q590lp T660lpxr 485dclp 61008bs 89013bs Q593lp T660lpxrxt 495dcxt 62000v2bs 89014bs Q595lp T685lpxr 500dcxr 62002bs 89016bs Q610lp T760lpxr 505dcxr 69000bs 89017bs Q625lp T770lpxr 505dcxt 69002bs 89017bs Q646lp T810lpxr 　 Neutral Density Filters of Widefield Microscopy 21000 ND 0.1 A - 80% Trans ND 0.5 C - 32% Trans ND 2.0 B - 1% Trans 21001 ND 0.1 B - 80% Trans ND 0.6 A - 25% Trans ND 2.0 C - 1% Trans 21004 ND 0.1 C - 80% Trans ND 0.6 B - 25% Trans ND 3.0 A - .1% Trans 21006 ND 0.2 A - 63% Trans ND 0.6 C - 25% Trans ND 3.0 B - .1% Trans 21007 ND 0.2 B - 63% Trans ND 1.0 A - 10% Trans ND 3.0 C - .1% Trans 21008 ND 0.2 C - 63% Trans ND 1.0 B - 10% Trans 　 21009 ND 0.3 A - 50% Trans ND 1.0 C - 10% Trans 21010 ND 0.3 B - 50% Trans ND 1.3 A - 5% Trans 21011 ND 0.3 C - 50% Trans ND 1.3 B - 5% Trans 21012 ND 0.4 A - 40% Trans ND 1.3 C - 5% Trans 21002a ND 0.4 B - 40% Trans ND 1.5 A - 3% Trans 21002b ND 0.4 C - 40% Trans ND 1.5 B - 3% Trans 21003a ND 0.5 A - 32% Trans ND 1.5 C - 3% Trans 21003b ND 0.5 B - 32% Trans ND 2.0 A - 1% Trans

供应美国Andover公司的滤光片，包括：带通滤光片、中性密度滤光片、天文滤光片、二向性滤光片、长通滤光片、短通滤光片、光谱仪校准滤光片。

供应美国Omega公司的滤光片，包括：带通滤光片、颜色滤光片、激光滤光片、长通滤光片、短通滤光片、中性密度滤光片。

供应荧光滤光片，该系列Semrock滤光片采用硬镀膜以防热变形，具有优秀的光学特性。无特别说明情况下，所有滤光片都配有直径25mm圆形氧化铝安装套筒，保证通光孔径不小于21mm。Semrock 滤光片，享受如下服务条款：5年质保期、30天替换。我们也提供定制服务，时间一周。


FF01-680/SP-25 FF01-720/SP-25 FF01-750/SP-25 FF01-770/SP-25 FF01-790/SP-25
FF665-Di02-25x36 FF705-Di01-25x36 FF735-Di01-25x36 FF775-Di01-25x36
FF670-SDi01-25x36 FF720-SDi01-25x36

供应多通/长通滤光片，该系列Semrock滤光片采用硬镀膜以防热变形，具有优秀的光学特性。无特别说明情况下，所有滤光片都配有直径25mm圆形氧化铝安装套筒，保证通光孔径不小于21mm。Semrock 滤光片，享受如下服务条款：5年质保期、30天替换。我们也提供定制服务，时间一周。

BrightLine® Long pass Single-edge Filters

FF01-267/LP-25 FF01-300/LP-25 FF01-341/LP-25 FF02-409/LP-25 FF01-496/LP-25 FF01-500/LP-25
FF01-515/LP-25 FF01-519/LP-25 FF01-591/LP-25 FF01-593/LP-25 FF01-692/LP-25 FF01-736/LP-25
FF01-776/LP-25 FF01-793/LP-25 FF01-800/LP-25 FF01-834/LP-25 FF01-835/LP-25 FF01-1020/LP-25

BrightLine® Short pass Single-edge Filters

FF01-280/SP-25 FF01-300/SP-25 FF01 440/SP-25 FF01-492/SP-25 FF01-518/SP-25 FF01-533/SP-25
FF01-612/SP-25 FF01-650/SP-25 FF01-655/SP-25 FF01-680/SP-25 FF01-694/SP-25 FF01-720/SP-25
FF01-750/SP-25 FF01-770/SP-25 FF01-790/SP-25 FF01-842/SP-25 FF01-945/SP-25

供应拉曼滤光片，该系列Semrock滤光片采用硬镀膜以防热变形，具有优秀的光学品质，用以检测很窄的拉曼位移。拉曼滤光片应用范围包括：拉曼分析、拉曼仪器、荧光图像、荧光测量。Semrock 滤光片，享受如下服务条款：5年质保期、30天替换。我们也提供定制服务，时间一周。

EdgeBasic™ Long Wave Pass Filters

BLP01-405R-25 BLP01-458R-25 BLP01-488R-25 BLP01-514R-25 BLP01-532R-25 BLP01-561R-25
BLP01-594R-25 BLP01-635R-25 BLP01-785R-25

RazorEdge® Long Wave Pass Raman Edge Filters

LP02-224R-25 LP02-248RS-25 LP02-257RU-25 LP02-257RS-25 LP02-266RU-25 LP02-266RS-25
LP03-325RU-25 LP03-325RS-25 LP02-355RE-25 LP02-355RU-25 LP02-355RS-25 LP02-364RU-25
LP02-364RS-25 LP02-442RU-25 LP02-442RS-25 LP02-458RU-25 LP02-458RS-25 LP02-473RU-25
LP02-473RS-25 LP02-488RE-25 LP02-488RU-25 LP02-488RS-25 LP02-514RE-25 LP02-514RU-25
LP02-514RS-25 LP03-532RE-25 LP03-532RU-25 LP03-532RS-25 LP02-561RU-25 LP02-561RS-25
LP02-568RU-25 LP02-568RS-25 LP02-633RE-25 LP02-633RU-25 LP02-633RS-25 LP02-664RU-25
LP02-664RS-25 LP02-780RU-25 LP02-780RS-25 LP02-785RE-25 LP02-785RU-25 LP02-785RS-25
LP02-808RU-25 LP02-808RS-25 LP02-830RU-25 LP02-830RS-25 LP02-980RU-25 LP02-980RS-25
LP02-1064RU-25 LP02-1064RS-25 LP02-1319RU-25 LP02-1319RS-25

RazorEdge® Short Wave Pass Raman Edge Filters

SP01-532RU-25 SP01-561RU-25 SP01-633RU-25 SP01-785RU-25

RazorEdge Dichroic™ Beamsplitters

LPD01-488RU-25x36x1.1 LPD01-488RS-25x36x1.1 LPD01-514RU-25x36x1.1 LPD01-514RS-25x36x1.1
LPD01-532RU-25x36x1.1 LPD01-532RS-25x36x1.1 LPD01-633RU-25x36x1.1 LPD01-633RS-25x36x1.1
LPD01-785RU-25x36x1.1 LPD01-785RS-25x36x1.1 LPD01-830RU-25x36x1.1 LPD01-830RS-25x36x1.1
LPD01-1064RU-25x36x1.1 LPD01-1064RS-25x36x1.1

供应激光滤光片，该系列Semrock滤光片采用硬镀膜以防热变形，具有优秀的光学品质，其在激光仪器、荧光激发、激光系统中得到了广泛应用。Semrock 滤光片，享受如下服务条款：5年质保期、30天替换。我们也提供定制服务，时间一周。

MaxLine® Laser-line Filters


LL01-248-12.5 LL01-248-25 LL01-266-12.5 LL01-266-25 LL01-325-12.5 LL01-325-25
LL01-355-12.5 LL01-355-25 LL01-364-12.5 LL01-364-25 LL01-372-12.5 LL01-372-25
LL01-442-12.5 LL01-442-25 LL01-458-12.5 LL01-458-25 LL01-488-12.5 LL01-488-25
LL01-491-12.5 LL01-491-25 LL01-514-12.5 LL01-514-25 LL01-532-12.5 LL01-532-25
LL01-543-12.5 LL01-543-25 LL02-561-12.5 LL02-561-25 LL01-568-12.5 LL01-568-25
LL01-633-12.5 LL01-633-25 LL01-647-12.5 LL01-647-25 LL01-671-12.5 LL01-671-25
LL01-780-12.5 LL01-780-25 LL01-785-12.5 LL01-785-25 LL01-808-12.5 LL01-808-25
LL01-830-12.5 LL01-830-25 LL01-976-12.5 LL01-976-25 LL01-980-12.5 LL01-980-25
LL01-1047-12.5 LL01-1047-25 LL01-1064-12.5 LL01-1064-25

MaxDiode™ Laser Diode Clean-up Filters


LD01-375/6-12.5 LD01-375/6-25 LD01-405/10-12.5 LD01-405/10-25 LD01-439/8-12.5 LD01-439/8-25
LD01-473/10-12.5 LD01-473/10-25 LD01-640/8-12.5 LD01-640/8-25 LD01-785/10-12.5 LD01-785/10-25

Near Infrared Bandpass Filters

NIR01-1535/3-25 NIR01-1550/3-25 NIR01-1570/3-25

MaxLamp™ Mercury Line Filters


Hg01-254-50 Hg01-365-50

StopLine® Single-notch Filters


NF03-405E-25 NF03-488E-25 NF03-514E-25 NF03-532E-25 NF01-532U-25 NF03-561E-25

NF03-594E-25 NF03-633E-25 NF03-658E-25 NF03-785E-25 NF03-808E-25


StopLine® Multi-notch Filters


NF01-488/532-25x5.0 NF01-488/543-25x5.0 NF01-488/635-25x5.0 NF01-488/647-25x5.0 NF03-532/1064E-25
NF01-543/647-25x5.0 NF01-568/638-25x5.0 NF01-568/647-25x5.0 NF01-594/638-25x5.0

NF01-488/532/635-25x5.0

NF01-405/488/532/635-25x5.0 NF01-405/488/561/635-25x5.0 NF01-405/488/557/640-25x5.0-D
　

供应陷波滤波片，该系列Semrock滤光片采用硬镀膜以防热变形，具有优秀的光学品质。其在生物医疗、拉曼光谱、荧光仪器中得到了广泛应用。Semrock滤光片，享受如下服务条款：5年质保期、30天替换。我们也提供定制服务，时间一周。

StopLine® Single-notch Filters


NF03-405E-25 NF03-488E-25 NF03-514E-25 NF03-532E-25 NF01-532U-25 NF03-561E-25

NF03-594E-25 NF03-633E-25 NF03-658E-25 NF03-785E-25 NF03-808E-25


StopLine® Multi-notch Filters


NF01-488/532-25x5.0 NF01-488/543-25x5.0 NF01-488/635-25x5.0 NF01-488/647-25x5.0 NF03-532/1064E-25
NF01-543/647-25x5.0 NF01-568/638-25x5.0 NF01-568/647-25x5.0 NF01-594/638-25x5.0

NF01-488/532/635-25x5.0

NF01-405/488/532/635-25x5.0 NF01-405/488/561/635-25x5.0 NF01-405/488/557/640-25x5.0-D

供应Chroma激光滤光片，包括：激光发射滤光片、二色镜、激光辐射滤光片、陷波滤光片。Chroma滤光片应用广泛，包括：荧光显微镜、生物医疗仪器、激光仪器、拉曼光谱、天文学、光谱测量。针对您的应用需求，我们提供产品选型、技术支持和定制服务。 　 Laser Clean-up Filters of Laser Applications ZET1064/10x ZET405/488x ZET488/594x ZET594/10x ZET365/20x ZET436/20x ZET488/640x ZET635/20x ZET405/20x ZET442/514x ZET514/10x ZET642/20x ZET405/488/561/640x ZET442/532x ZET532/10x 　 ZET405/488/561/647x ZET488/10x ZET532/640x ZET405/488/561x ZET488/561x ZET561/10x 　 Laser Dichroics and Polychroics of Laser Applications ZT1064rdc-sp ZT405-488/568rdc ZT488/647/780rpc ZT266rdc ZT405rdc ZT488dcrb ZT325/442rpc ZT440/488/561/635rpc ZT488rdc ZT325rdc-xt ZT440/514/561/640rpc ZT491rdc ZT349rdc ZT440-445/488-491/594 rpc ZT502rdc ZT355/405/473rpc ZT442/488rpc ZT514/1064rpc ZT355/650rpc ZT442/514rpc ZT514/640rpc ZT365bcm ZT442/532rpc ZT514rdc ZT375/473/532/635rpc ZT442dcrb ZT532/640/NIR_rpc ZT375/488/532/635rpc ZT442rdc ZT532/640rpc ZT375/488/543/633rpc ZT457/561rpc ZT532/660rpc ZT375/514/594rpc ZT457/561rpc ZT532dcrb ZT375/532rpc ZT457dcrb ZT532rdc ZT375rdc ZT457dcrb ZT543dcrb ZT405/473/561rpc ZT458/514/594rpc ZT543rdc ZT405/473-491/NIRrpc ZT458/514/594rpc ZT543rdcxt-NIR ZT405/488/532/640rpc ZT458/514rpc ZT550dcrb ZT405/488/543/640rpc ZT458/514rpc ZT561dcrb ZT405/488/543rpc ZT458rdc ZT561rdc ZT405/488/561/640rpc ZT458rdc ZT561rdc-xr ZT405/488/561/647rpc ZT473/543/640rpc ZT568/700-1100rpc ZT405/488/561/680-1100rpc ZT473/543/640rpc ZT568rdc ZT405/488/561rpc ZT473/546/633/700/780rpc ZT594/680rpc ZT405/488/594rpc ZT473dcrb ZT594dcrb ZT405/488/635rpc ZT473rdcxt ZT594rdc ZT405/488rpc ZT488/532/633/830/1064rpc ZT633rdc ZT405/514/561rpc ZT488/532rpc ZT635dcrb ZT405/514/594rpc ZT488/543/635/730rpc ZT640rdc ZT405/514/635rpc ZT488/543/635rpc ZT647rdc ZT405/532/635rpc ZT488/543rpc ZT656dcrb ZT405/532rpc ZT488/561/635rpc ZT680rdc-xxrxt ZT405/561/657rpc ZT488/561rpc ZTUV-405/488/561rpc ZT405/642rpc ZT488/594rpc 　 ZT405-440/514/561rpc ZT488/640rpc 　 Laser Emission Filters of Laser Applications ZET405/473-488/NIRm ZET405/488m ZET442/532m-TRF ZET488/640m ZET405/488/561/640m ZET405/488m-TRF ZET488/561m ZET488/640m-TRF ZET405/488/561/640m-TRF ZET442/514m ZET488/561m-TRF ZET532/640m ZET405/488/561/647m ZET442/514m-TRF ZET488/594m ZET532/640m-TRF ZET405/488/561/647m-TRF ZET442/532m ZET488/594m-TRF

供应Chroma天文滤光片，包括：天文滤光片、光度滤光片。Chroma滤光片应用广泛，包括：荧光显微镜、生物医疗仪器、激光仪器、拉曼光谱、天文学、光谱测量。针对您的应用需求，我们提供产品选型、技术支持和定制服务。 　 Filters for Astrophotography Blue-27 Clear-50S Ha/8-50 OIII/8-27M SII/8-27 Blue-27M Green-27 Ha/8-50S OIII/8-50 SII/8-27M Blue-50 Green-27M Lum-27 OIII/8-50S SII/8-50 Blue-50S Green-50 Lum-27M Red-27 SII/8-50S Clear-27 Green-50S Lum-50 Red-27M 　 Clear-27M Ha/8-27 Lum-50S Red-50 Clear-50 Ha/8-27M OIII/8-27 Red-50S 　 Filters for Photometry B-Band Bessel-27 I-Band Bessel-50 R-Band Bessel-50S V-Band Bessel-27 B-Band Bessel-50 I-Band Bessel-50S U-Band Bessel-27 V-Band Bessel-50 B-Band Bessel-50S R-Band Bessel-27 U-Band Bessel-50 V-Band Bessel-50S I-Band Bessel-27 R-Band Bessel-50 U-Band Bessel-50S

供应可调谐滤光片(Semrock VersaChrome)，该系列Semrock可调谐滤光片采用硬镀膜以防热变形，具有优秀的光学特性，通过调整入射光角度来实现波长改变。Semrock可调谐滤光片应用广泛，包括：荧光图像，高光谱成像，激光实验。Semrock公司的滤光片，享受如下服务条款：5年质保期、30天替换。我们也提供定制服务，时间一周。


VersaChrome® Tunable and High Overlap Filters

TBP01-378/16-25×36 TBP01-438/16-25×36 TBP01-487/15-25×36 TBP01-547/15-25×36
TBP01-617/14-25×36 TBP01-697/13-25×36 TBP01-796/12-25×36

Extended Overlap Filters

TBP01-402/16 TBP01-45115 TBP01-503/15 TBP01-564/14
TBP01-632/14 TBP01-708/13 TBP01-794/12 TBP01-900/11

供应滤光片支架，用以安装Semrock滤光片。该系列滤光片支架分成两类：显微镜配套使用和实验室使用。可与该系列滤光片支架配套的显微镜包含：Aperio显微镜、Leica显微镜、Nikon显微镜、Olympus显微镜、Zeiss显微镜。 　 Type Beamsplitter Dimensions L*W*T(mm) Applications Microscope Manufacturer Compatible Microscope(s) AMF 25.2*35.6*(<1.5) Aperio ScanScope FL LDMK 22.0*29.0*(<1.1) Leica (DM-K) DM-2000, DM-2500, DM-3000, DMI3000 B, DM-4000, DMI4000 B, DM-5000, DM-5500, and DM-6000, DMI6000 B LLC 22.0*29.0*(<1.1) Leica (DM-R) Aristomet, Aristoplan, DM-LB, DM-LM, DM-LP, DM-RB, and DM-R HCRF4 LSC 22.0*27.0*(<1.1) Leica (DM-IRB) DM 750, DM 1000, DM-IL, DM IL LED, DM-IRB, DM IRE2, DM-LS, DM-LSP, DM-R HCRF8, and DM-R XARF8, Older Models (like Diavert etc.) with "Ploem-OPAK" NQF 25.2*35.6*(<1.1) Nikon (Quadfluor) E200, E400, E600, E800, E1000, TS100, TS100F, TE200, TE300, ME600L, L150A, and some Labophot, Optiphot, and Diaphot series NTE 25.2*35.6*(<1.1) Nikon (TE2000) TE 2000, 50i, 55i, 80i, 90i, Eclipse Ti series, and any other using the Epi-fluor Illuminator OMF 25.2*35.6*(<1.5) Olympus (U-MF2) AX, BX2, and IX series OXL 32.0*44.0*(<1.5) Olympus (U-MF/XL) MVX10 (and other large optical path microscopes) OFF 25.2*35.6*(<1.5) Olympus (U-FF) BX3 series ZAT 25.2*35.6*(<1.1) Zeiss (Threaded Filter Cube) Axioskop 2 (pre-2002), Axioplan (pre-version 2), Axiovert 100 ZHE 25.2*35.6*(<1.1) Zeiss (FL Cube, EC P&C (Push & Click)) Axio Imager, Axiostar Plus, Axioskop 40, Axioskop 2 (post-2001), Axioplan 2i, Axioplan 2ie, Axiovert 200, Axiovert 40, Axio Observer, Axio Examiner and Axio Scope A1 BSM 25.2*35.6*(1.0-2.0) Beamsplitter Mount in laboratory bench-top setups FH1 25.2*35.6*(1.0-2.0) Filter Holder Mount on rotation stages or in laboratory bench-top setups

供应酶标仪滤光片，基底材料为浮法玻璃或石英玻璃，标准尺寸Φ12或Φ12.7。该系列酶标仪滤光片具有如下特点：带宽8nm、波长340nm-700nm、截止范围200-2000nm、截止深度OD6，主要应用于：酶标仪、生化分析仪。针对基底材料、截止深度有特殊需求的客户，我们提供定制服务。 　 Type Wavelength/nm Bandwidth/nm Transmission/T>% NF-MR-340/8-40 340 8 40 NF-MR-380/8-40 380 8 40 NF-MR-402/8-40 402 8 40 NF-MR-405/8-40 405 8 40 NF-MR-410/8-40 410 8 40 NF-MR-450/8-40 450 8 40 NF-MR-492/8-40 492 8 40 NF-MR-505/8-40 505 8 40 NF-MR-510/8-40 510 8 40 NF-MR-546/8-40 546 8 40 NF-MR-578/8-40 578 8 40 NF-MR-620/8-40 620 8 40 NF-MR-630/8-40 630 8 40 NF-MR-700/8-40 700 8 40

　

一 产品名称

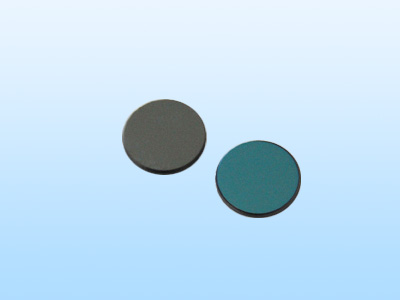

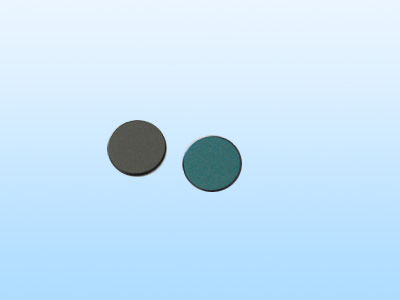

   4.26um窄带红外滤光片

   型号：FT4.26

二 技术指标

1  滤光片基板材料：                   白宝石

2  基板外圆尺寸：                     φ10（⁺⁰_-0.05）mm×1（⁺⁰_-0.05）mm

3  滤光片有效孔径：                   >φ9.2mm

4  滤光片中心波长（CWL）：            4.26um

5  峰值透过率：                       >80%

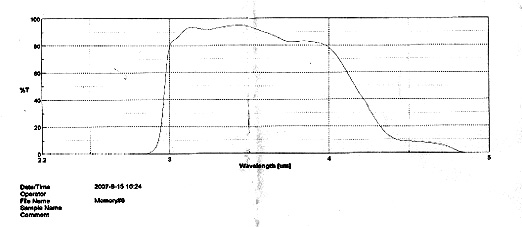

6  曲线图

　

　

三 用途

   CO2测量。
